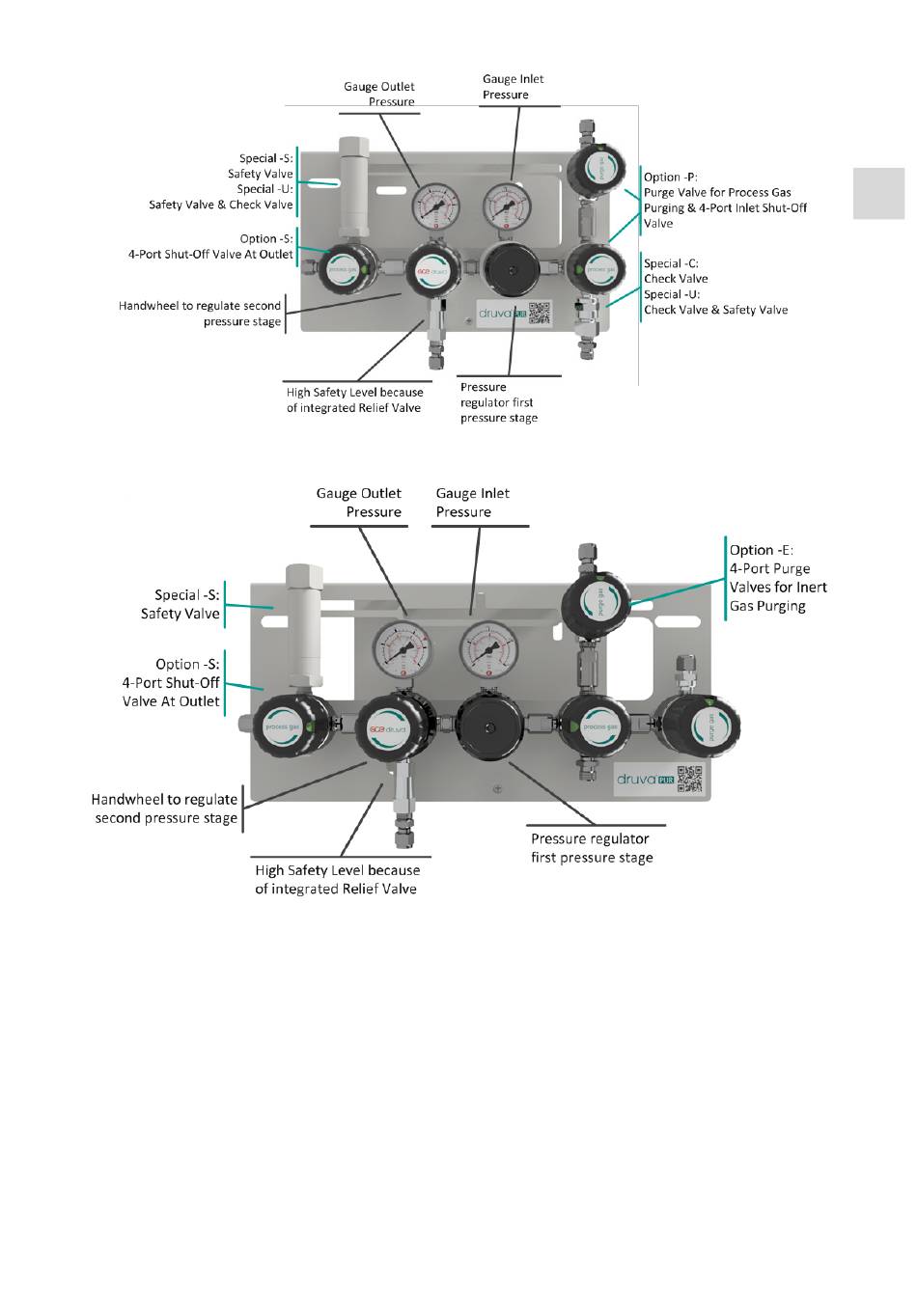

4.6. OVERVIEW – MSLH0XDPSU, MSLHEXDPSU – FULL VERSION
EN
4.7. OVERVIEW – MSLH0XDESS, MSLHEXDESS – FULL VERSION

4.8. BRIEF DESCRIPTION MPLH0XD / MSLH0XD, MPLHEXD / MSLHEXD

With the manifold type MPLH0X, MPLHEX... (material: brass chrome plated) an industrial, non-toxic and
non-corrosive gas or gas mixture, which is stored inside gas cylinder or bundle with over pressure can be
reduced from maximum 300 bar tubing pressure (3 bar, 6 bar, 10 bar, 14 bar).
With the manifold type MSLH0X, MSLHEX...(material: stainless steel) additional toxic and corrosive gases
which is stores inside gas cylinder or bundle with over pressure can be reduced from maximum 300 bar tub-
ing pressure (3 bar, 6 bar, 10 bar, 14 bar).
A relief valve at second pressure stage regulator secures the manifold with its outlet pressure against in-
correct pressure rising at the outlet due to leakage in regulator seat.
Additional components could be outlet shut off valve, safety valve and/ or check valve.
The real inlet and outlet pressure of the manifold is displayed at the pressure gauges. There is the possibility
to use contact gauges for inlet and outlet pressure.
If the manifold has the opportunity for process gas purging, this can be done before initial start-up to remove
contaminates. Furthermore it is possible to depressurize the high pressure side before cylinder is changed.
25/72
