3. TECHNICAL SPECIFICATIONS

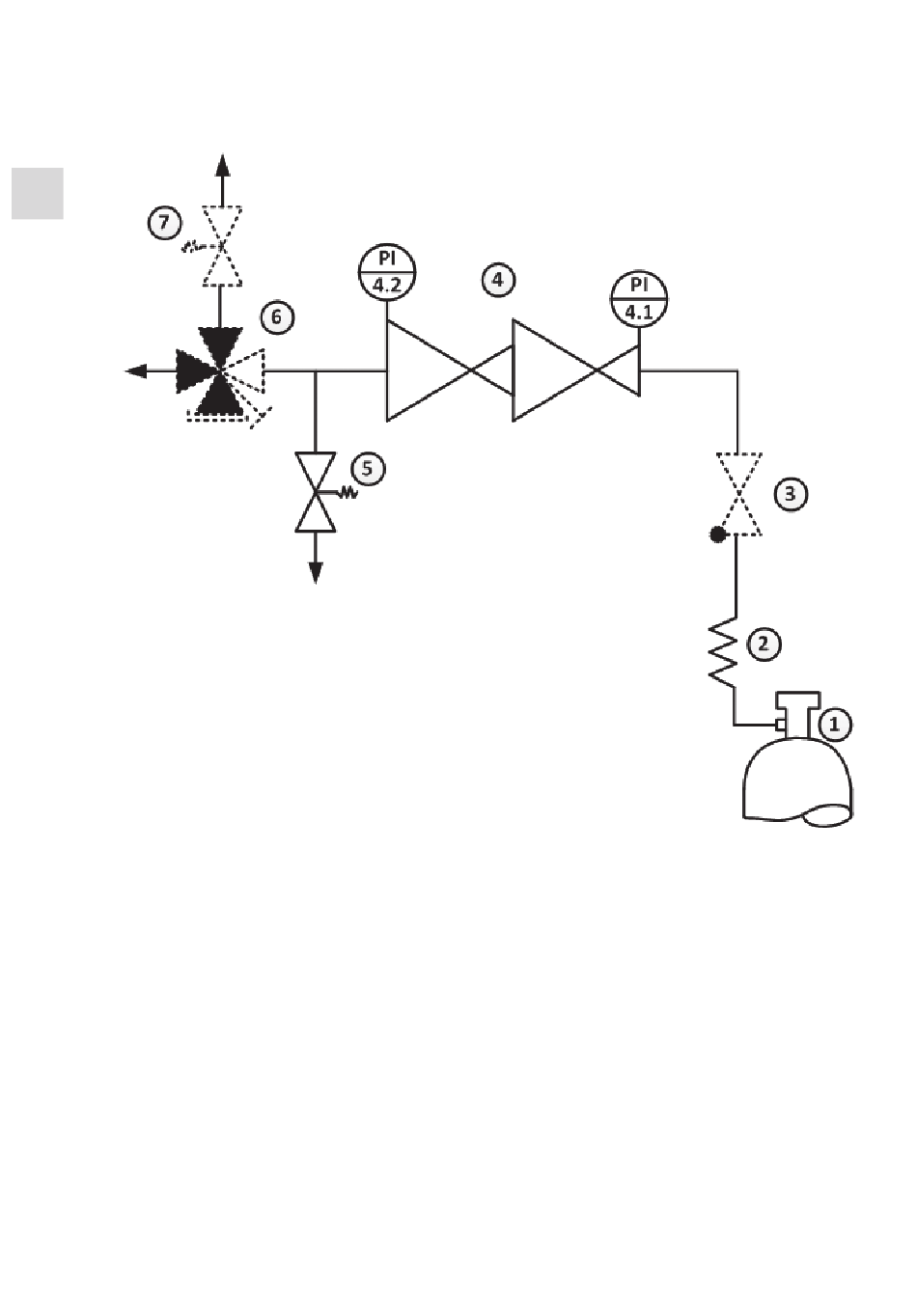

3.1. FLOW SCHEME – MPLHEXD0/ MSLHEXD0, MPLHEXD0/ MSLHEXD0
EN
1 – GAS CYLINDER
2 – COIL/HOSE
3 – CHECK VALVE
4 – PRESSURE REGULATOR
5 – RELIEF VALVE
6 – SHUT-OFF VALVE (1XIN, 3XOUT)
7 – SAFETY VALVE
Options are shown as dotted line
