Tool Specifications

Hand Operated Drilling Machine – Original instruction
Nominal voltage
Frequency
Input
R.P.M. under the load
R.P.M. at idle run
Performance when drilling steel St 50
Clamping of the tool
Interference with broadcast in accordance with the
Protection class
Protection degree
Weight (net)
Accessories
Operating parts (elements)
1 Clamping equipment for the tool
2 Orifice for the drift
3 Switch for the selection of the gear
4 Additional handle
5 Switch
6 Venting orifices
7 Drift
8 Chuck with gear wheel*
9 Tapered mandrel*
* Accessories

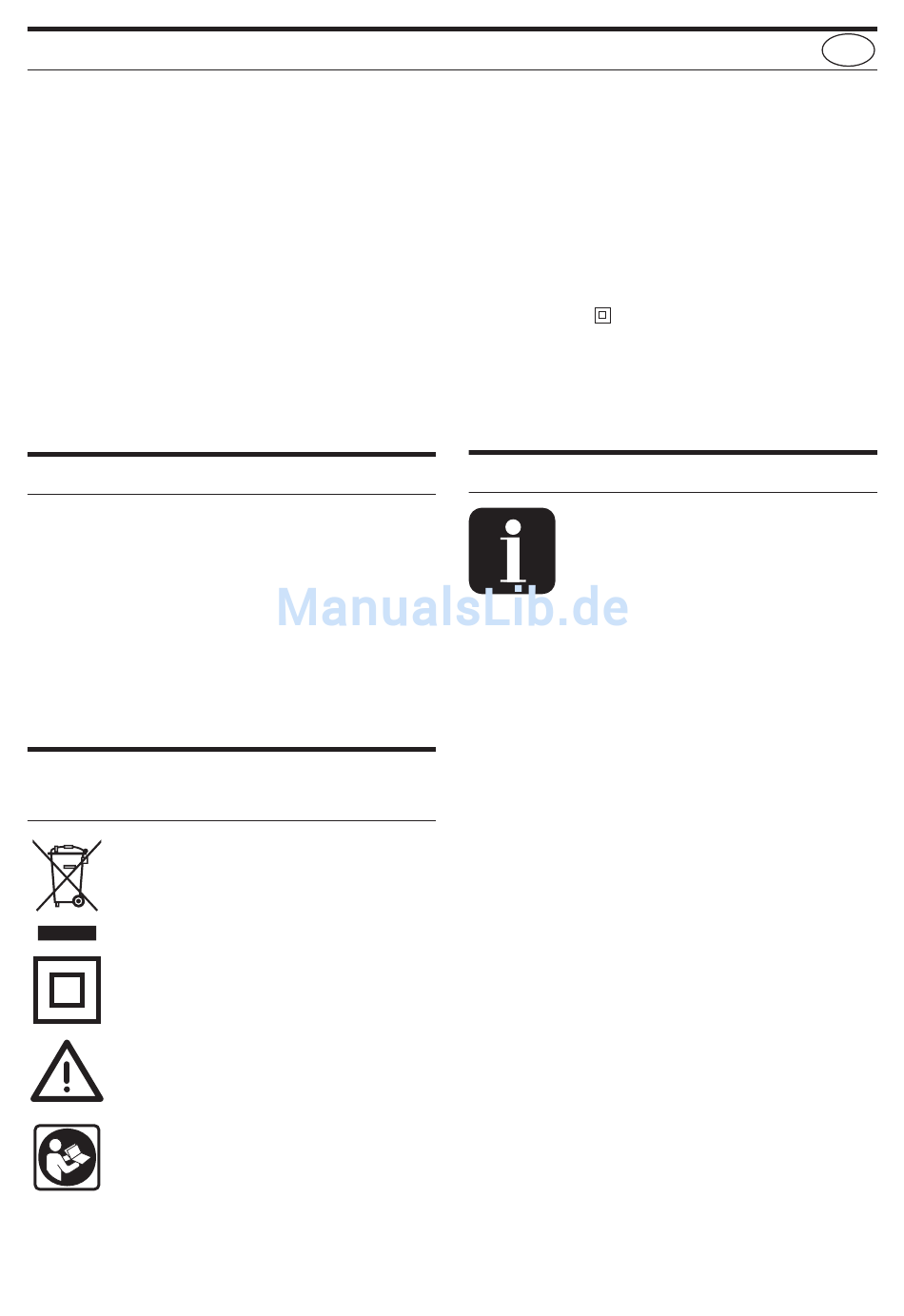

Symbols used in the manual and
on the machine
Not to be included in municipal
refuse.
Double insulation.
This symbol is used to mark safety
instructions that must be observed to
prevent damage to persons.
Read the instructions
8
DRP 32-4
230 V
40-60 Hz
1700 W
110/175/245/385 min
210/330/470/740 min
32 mm
MK3
EN 55014 and EN 61000
ll /
IP 20
about 6.9 kg
Drill drift size. 3

Safety Instructions

You will be able to operate the
machine safely only if you have
read the complete Operation
Manual, and will guide yourselves
carefully by the instructions
contained therein. Moreover, it is
necessary to respect the general
safety instructions shown in the
enclosed booklet.
‰ When drilling orifices into ceilings or walls,
check first – e.g. with a metal finding device –
whether no electric transmission lines nor gas
or water piping are located under the plaster
in the place where you intend to drill.
‰ Before every operation, check the machine,
the cable and the plug. Never use a machine
with a damaged cable. Any damage must be
repaired by a professional.
‰ Connect the plug into the socket only if the
machine is disengaged.
‰ Lead the cable always backwards from the
machine.
‰ The machine must not be wet and it must not
be employed in a wet environment.
‰ Caution with long hair. Operate the machine
always in a tight-fitting clothing.
‰ Both the extension cable and the plug must
me approved for outside use.
‰ Because of safety reasons, use always the
additional handle.
‰ Fasten the workpiece by means of a clamping
jig.
