ILS Target Quad STB-S/STB-L
Inserting the ILS Matrix
Be careful not to scratch the surface of the ILS Matrix. It can affect the performance of the position-
ing.

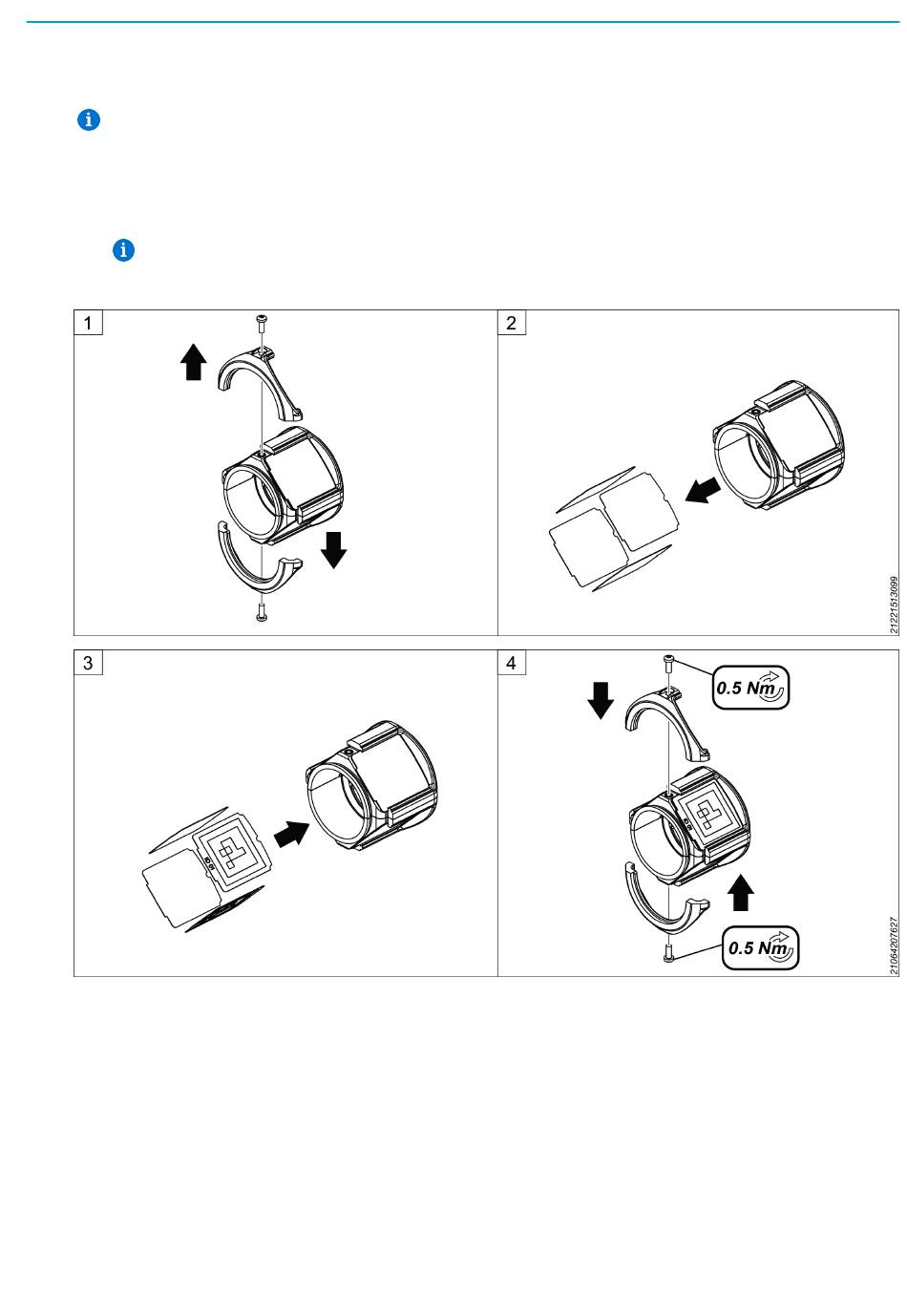

1. Remove the two T10 screws
2. Remove the cover tags.
3. Insert the ILS Matrix into the holder.
Make sure to insert the side with the clipped corners first.
4. Fasten with two T10 screws.
