Installation
6.

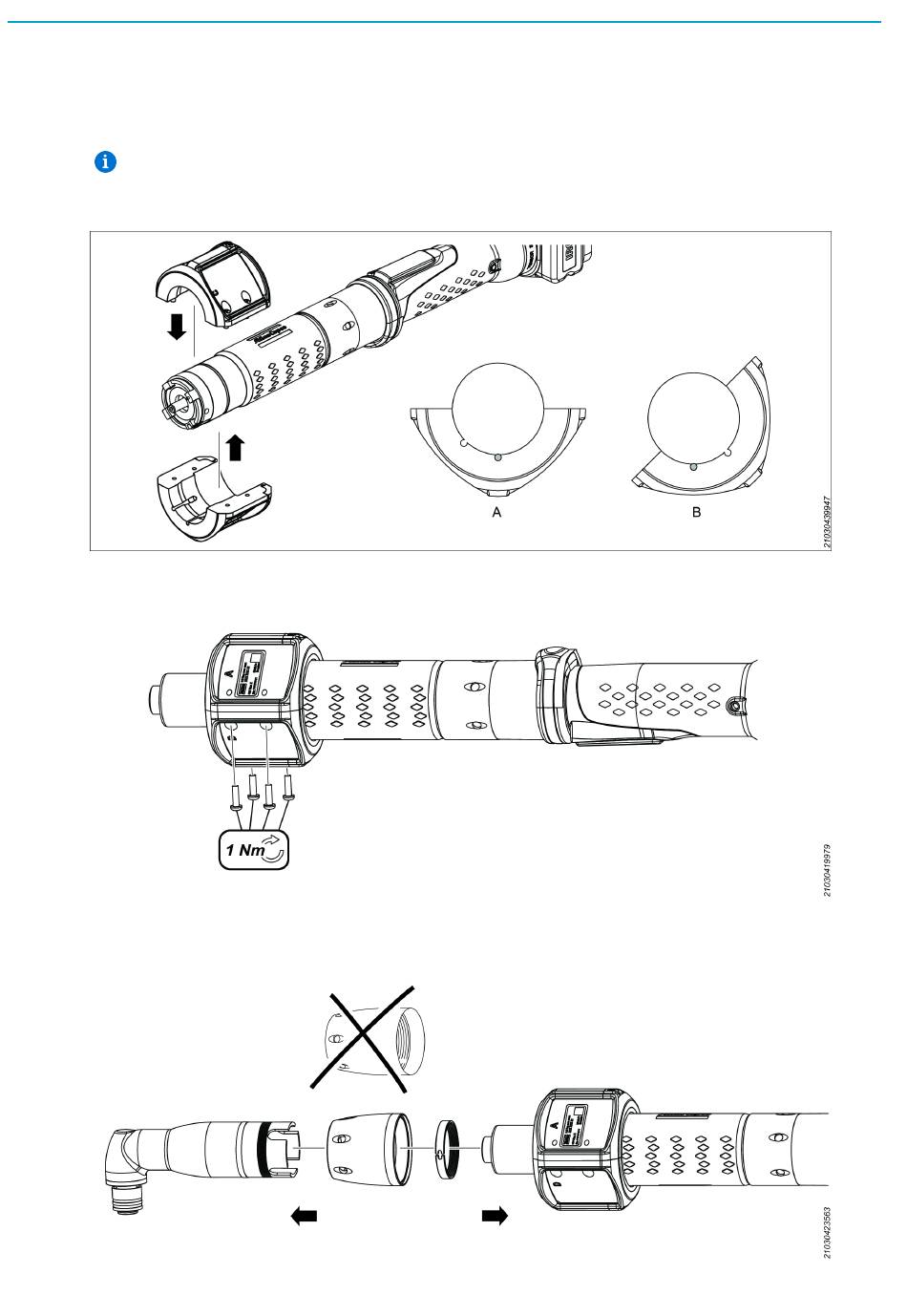

Mount the ILS Target on the tool. Start by fitting the lower half in the correct position.
When the lower half is in the correct position, the pin will fit into the slots of the motor housing, and
prevent the ILS Target from rotating.
The pin on the inside of the target can be moved between the slots, allowing for two different po-
sitions of the ILS Target on the tool: 45° (A), or flat (B).
Put the upper half together with the lower half.
7.
Tighten the four T10 screws.
8.
Assemble the new shorter cap nut and the circlip on the angle head. Assemble the shaft and the an-
gle head on the tool. Tighten the cap nut to specified torque.
