ILS Target Quad STB-S/STB-L
Installation
Installation Instructions
Installing the ILS Target
Disassembly of the tool and/or installations of accessories must only be performed by qualified main-
tenance personnel.
Required tools:
■
Adjustable spanner
■
T10 screwdriver

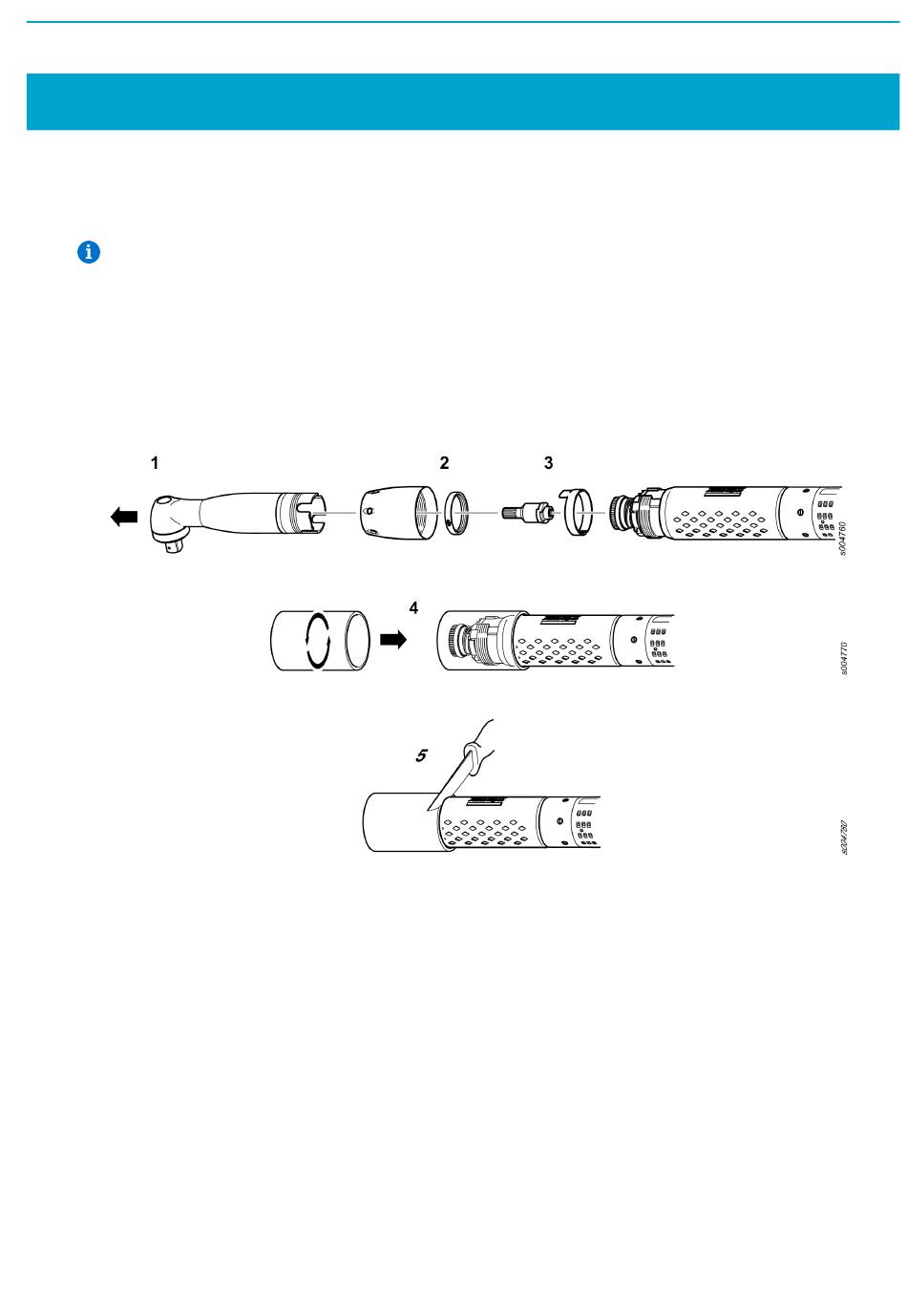

1. Remove the angle head.
2. Remove the circlip and the cap nut.
3. Remove the shaft and the plastic protection.
4. Screw on the cutting guide.
5. Cut the insulation. The flex cable is protected under a shield.
EN
