3. Mounting options

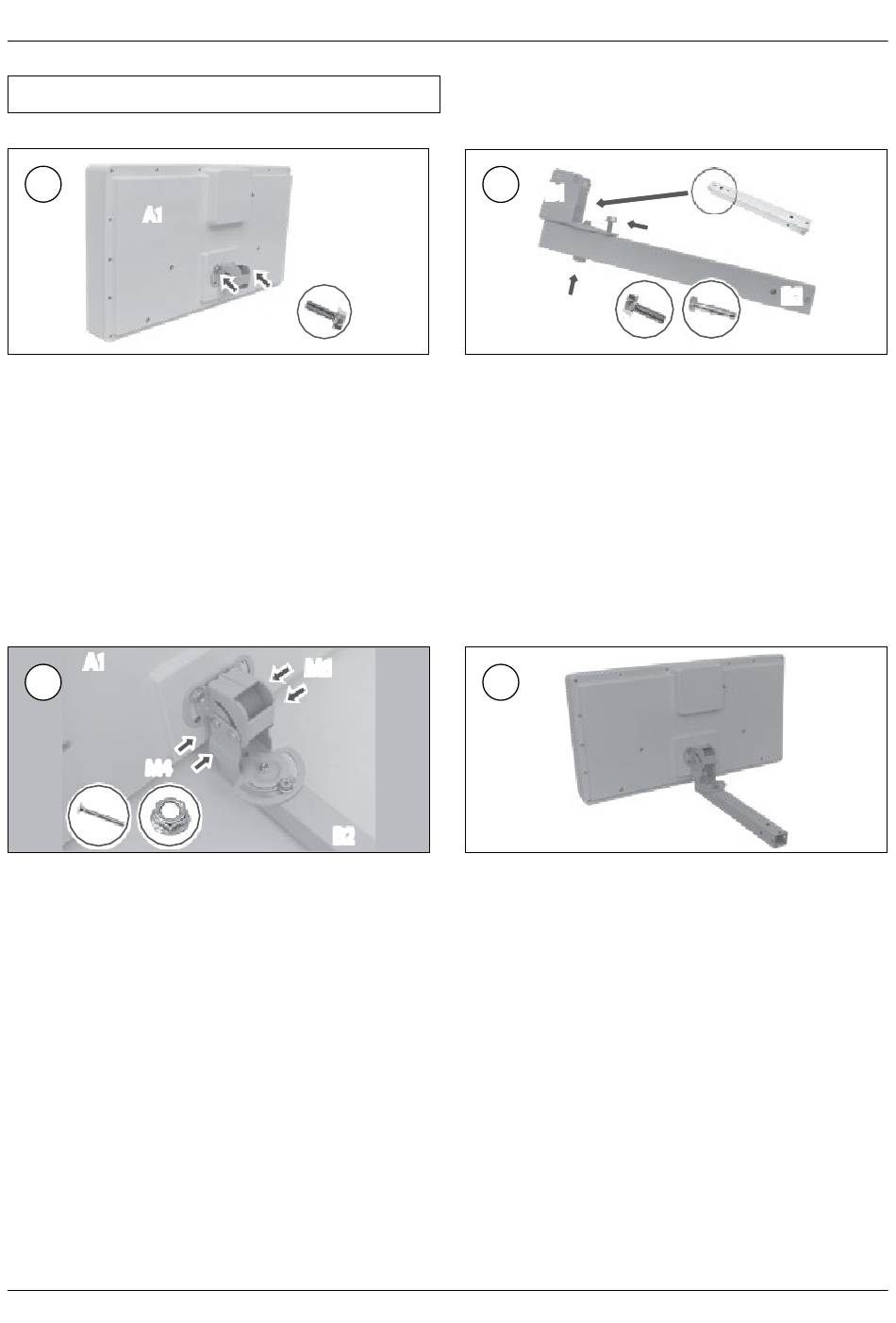

3.1 Basic mounting of the antenna

1
A1
On the back of the antenna (A1), insert
the bracket (B0). Fasten it with two M6
x 10 fastening screws (M7).
A1
3
M
4
4
Assemble the holder with the antenna.
Fasten them with two M6 x 45 fastening
screws (M4) and fix them with one screw
nut (M5) each.
M
7
7
M
6
6
B2
2
B1
M
3
3
Place the holder (B1) on the mounting
arm (B2). Fasten it with an M6 x 20 fas-
tening screw (M2) and an M8 x 40 fas-
tening screw (M3). Do not overtighten the
screws so that you can still adjust the an-
tenna alignment angle.
4
The basic assembly of the antenna is
now completed.
M
2
2
B2
