4. Prepare and lay coaxial cable

When installing the F-connectors, make sure that they are installed correctly. Fai-
lure to correctly install the F connectors may result in signal loss or short circuit.
The weather protection is only necessary for the exterior of the antenna.
Route the coaxial cable from the antenna to the satellite receiver. Make sure that
you do not damage the cable during installation or that there are no kinks. Do not
exceed the length of 30 meters, otherwise there may be signal loss. If you would
like to lay the cable through a window, please use a suitable window feedthrough.

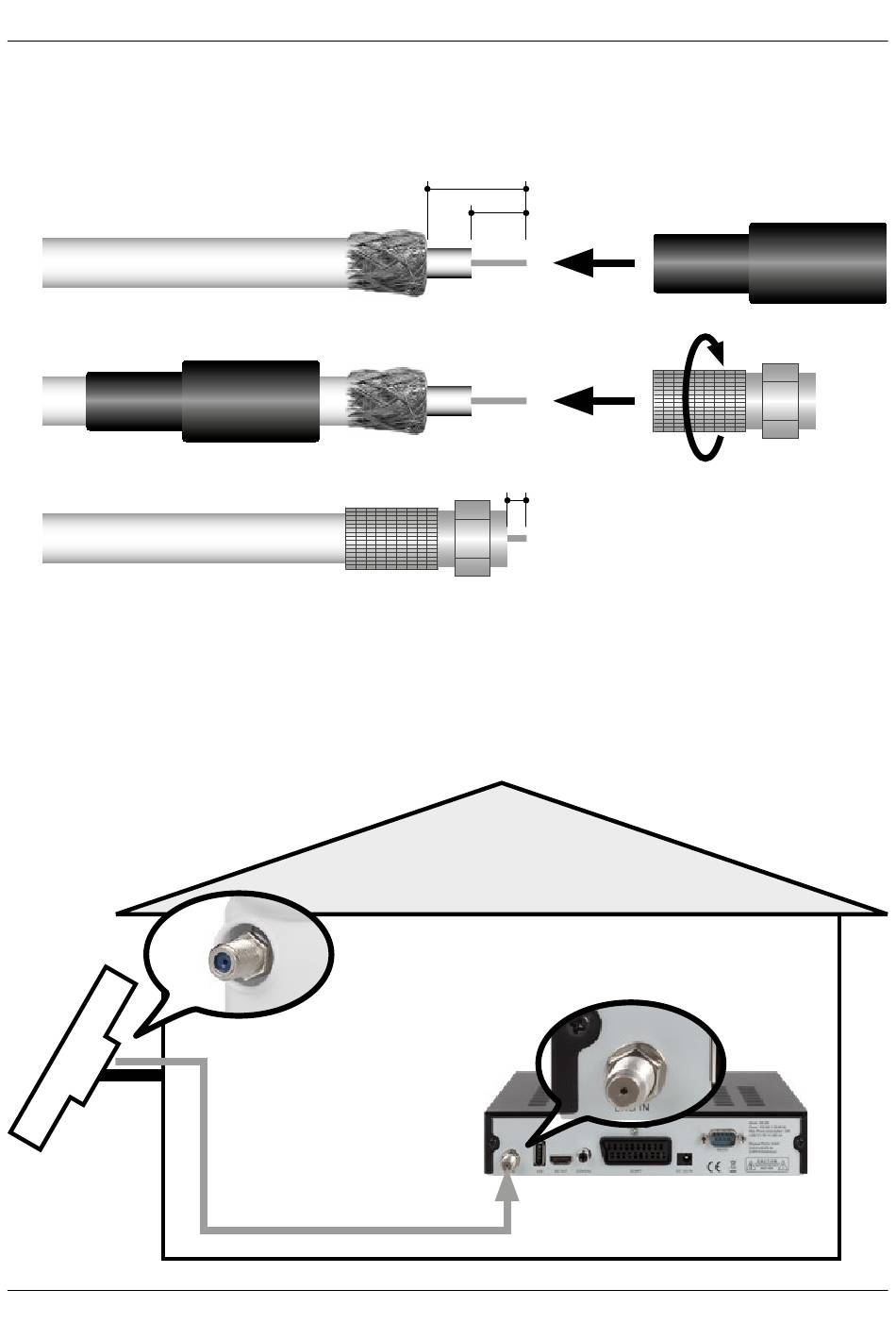

Connection
at the LNB
15 mm
8 mm
3 mm
Connection to the TV
or receiver (LNB In)
weather proof
F-connector
