3. Mounting options

3.2 Mounting on a mast

1
2
M4
M6
B2
3
10
B4
B4

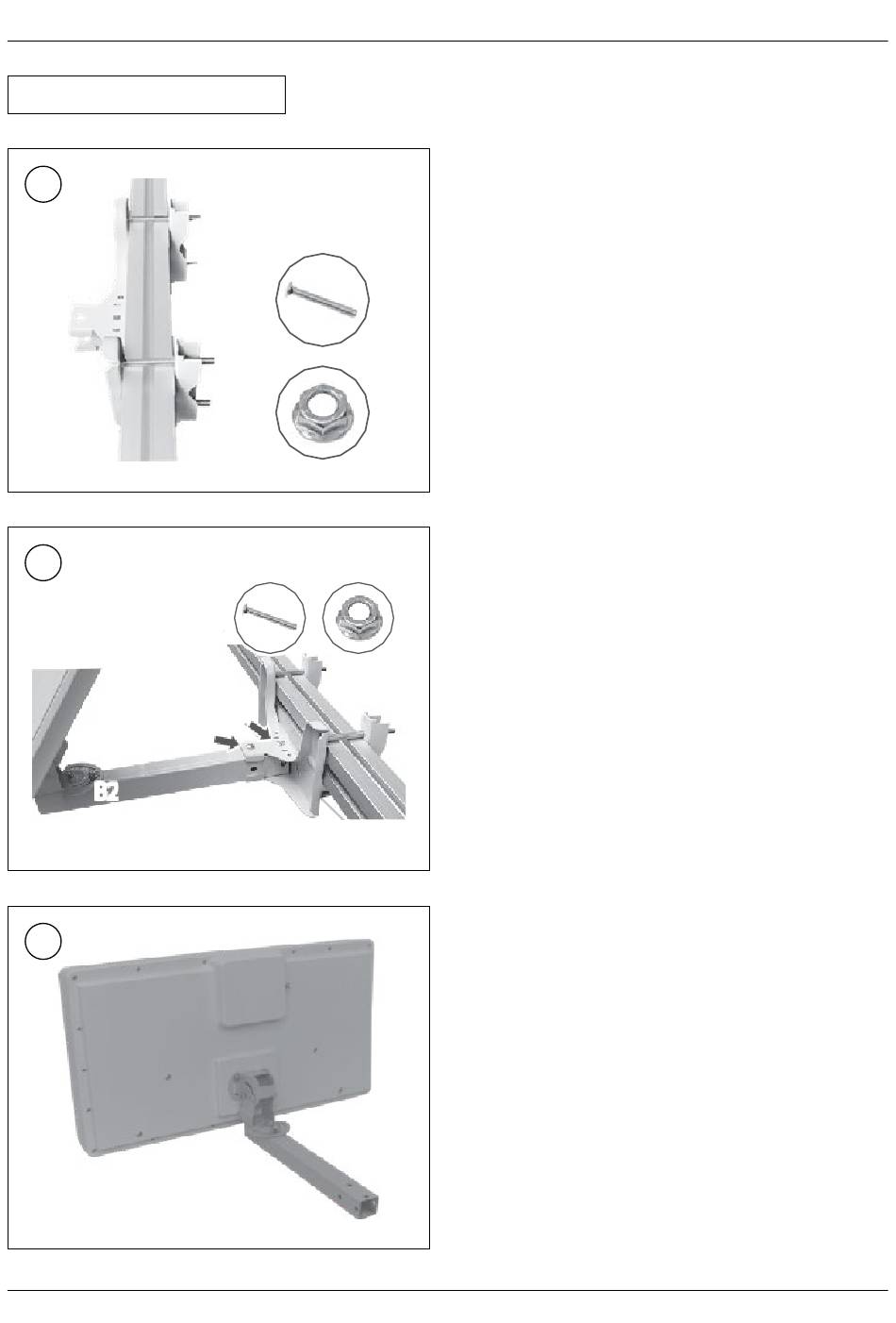

Attach the mast clamps (B4) and the
bracket (B5) between the balcony lat-
tice struts. Fasten them with M6 x 75
fastening screws (M5) and fix them with
a screw nut (M5) each.
Place the preassembled antenna unit
in the holder. Fasten it with two M6 x
45 fastening screws (M4) and the cor-
responding nuts (M6). Use the wrench
(B7) for this purpose.
After the final position to the satellite is
found, you can tighten all screws.
