3. Mounting options

3.3 Mounting on a wall

1
B2
2
B3-2
B2
M
6
6
B3-1
3
B5
M
4
4

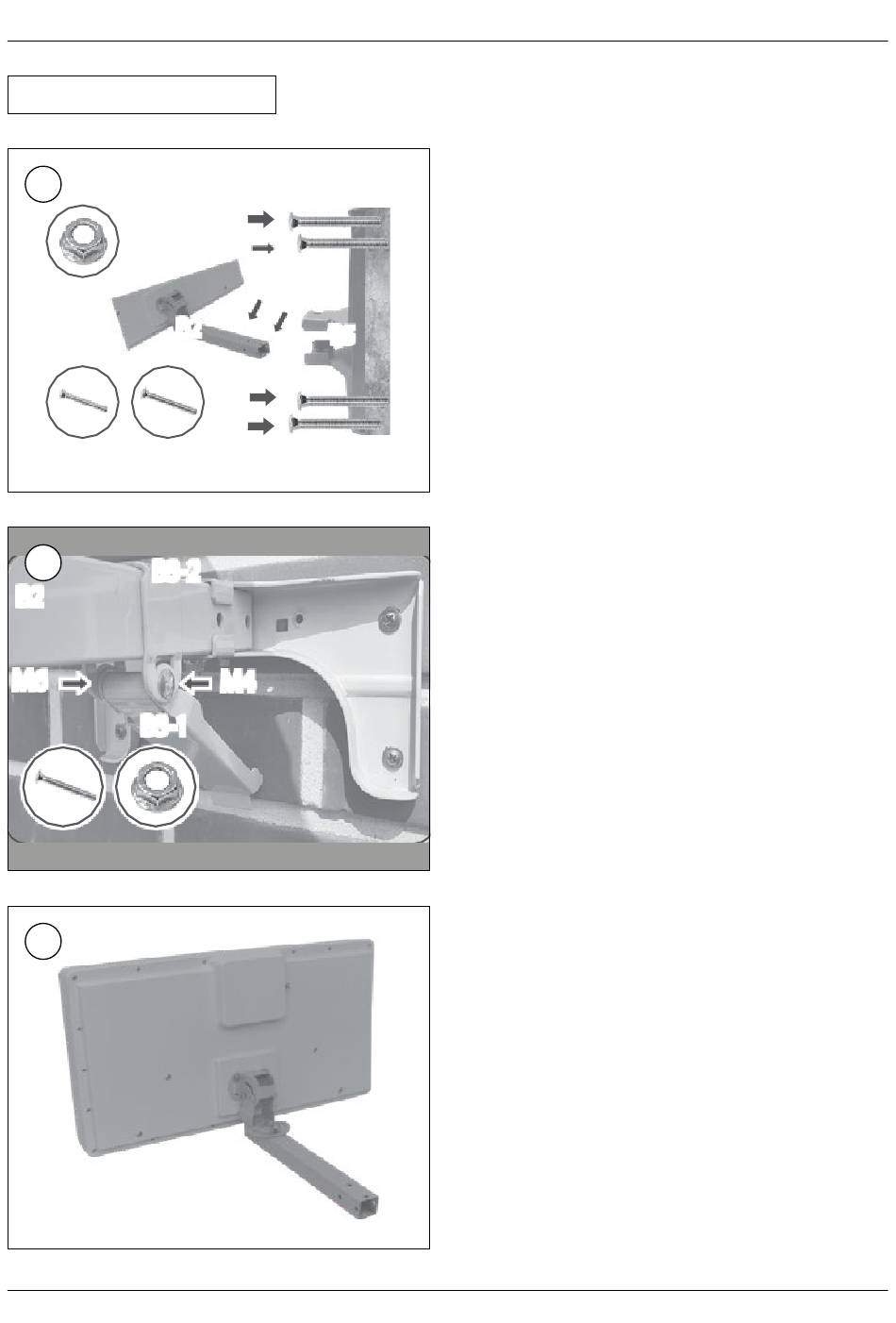

Mount the mounting plate (B5) on a sui-
table wall. To do this, use suitable screws
or dowels to match the wall structure.
Place the preassembled antenna unit in
the holder. Fasten it with two M6 x 45
fastening screws (M4) and the corres-
ponding nuts (M6).
Mount the mounting bracket (B3-2) to
the mounting arm (B2). Now attach the
support (B3-1). Fasten it with the M6 x
45 fastening screw (M4) and a screw nut
(M6).
After the final position to the satellite is
found, you can tighten all screws.
