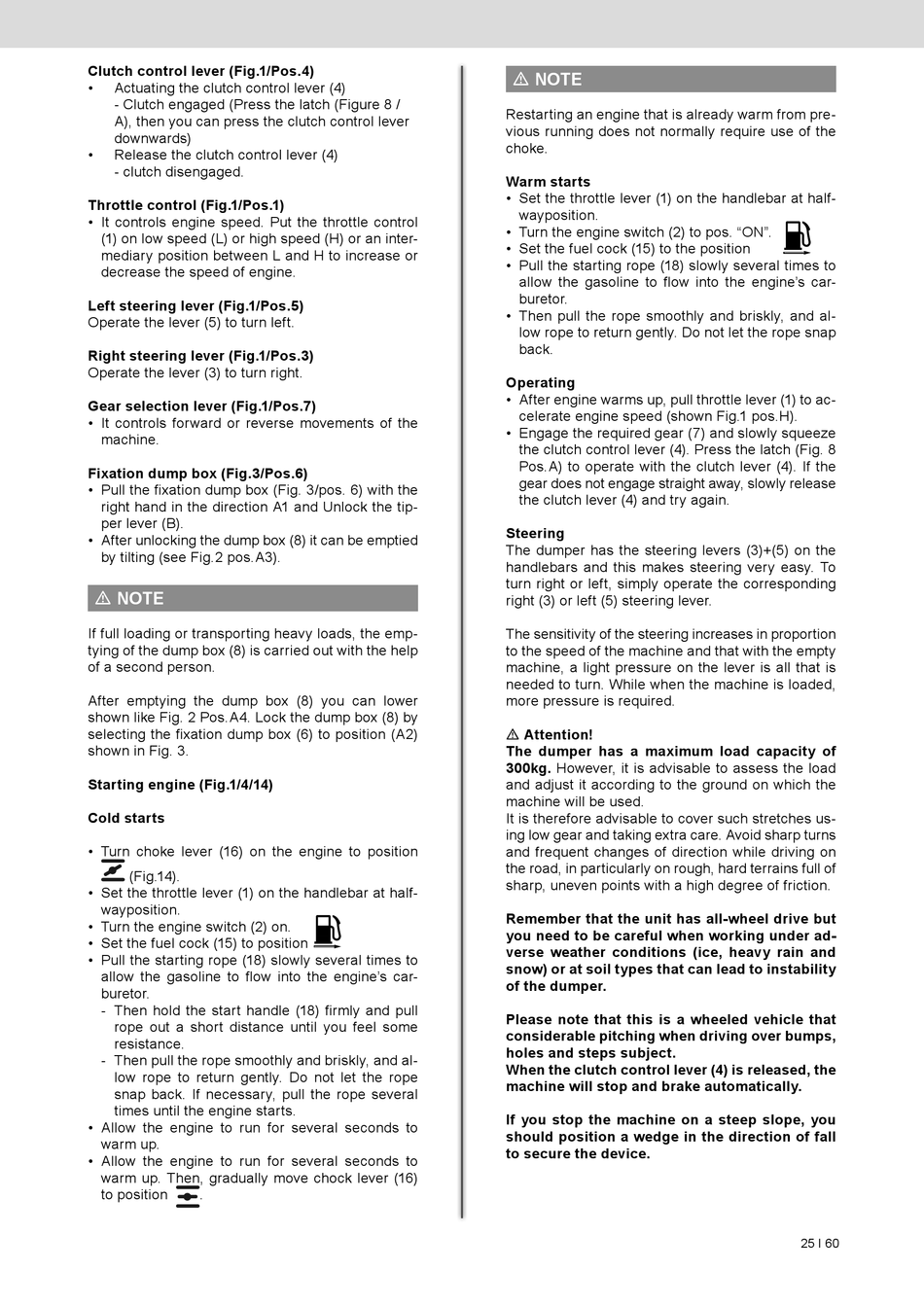

Clutch control lever (Fig.1/Pos.4)
• Actuating the clutch control lever (4)
- Clutch engaged (Press the latch (Figure 8 /
A), then you can press the clutch control lever
downwards)
• Release the clutch control lever (4)
- clutch disengaged.
Throttle control (Fig.1/Pos.1)
• It controls engine speed. Put the throttle control
(1) on low speed (L) or high speed (H) or an inter-
mediary position between L and H to increase or
decrease the speed of engine.
Left steering lever (Fig.1/Pos.5)
Operate the lever (5) to turn left.
Right steering lever (Fig.1/Pos.3)
Operate the lever (3) to turn right.
Gear selection lever (Fig.1/Pos.7)
• It controls forward or reverse movements of the
machine.
Fixation dump box (Fig.3/Pos.6)
• Pull the fixation dump box (Fig. 3/pos. 6) with the
right hand in the direction A1 and Unlock the tip-
per lever (B).
• After unlocking the dump box (8) it can be emptied
by tilting (see Fig.2 pos.A3).
m NOTE
If full loading or transporting heavy loads, the emp-
tying of the dump box (8) is carried out with the help
of a second person.
After emptying the dump box (8) you can lower
shown like Fig. 2 Pos.A4. Lock the dump box (8) by
selecting the fixation dump box (6) to position (A2)
shown in Fig. 3.
Starting engine (Fig.1/4/14)
Cold starts
• Turn choke lever (16) on the engine to position
(Fig.14).
• Set the throttle lever (1) on the handlebar at half-
wayposition.
• Turn the engine switch (2) on.
• Set the fuel cock (15) to position
• Pull the starting rope (18) slowly several times to
allow the gasoline to flow into the engine's car-
buretor.
- Then hold the start handle (18) firmly and pull
rope out a short distance until you feel some
resistance.
- Then pull the rope smoothly and briskly, and al-
low rope to return gently. Do not let the rope
snap back. If necessary, pull the rope several
times until the engine starts.
• Allow the engine to run for several seconds to
warm up.
• Allow the engine to run for several seconds to
warm up. Then, gradually move chock lever (16)
to position .
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
m NOTE
Restarting an engine that is already warm from pre-
vious running does not normally require use of the
choke.
Warm starts
• Set the throttle lever (1) on the handlebar at half-
wayposition.
• Turn the engine switch (2) to pos. "ON".
• Set the fuel cock (15) to the position
• Pull the starting rope (18) slowly several times to
allow the gasoline to flow into the engine's car-
buretor.
• Then pull the rope smoothly and briskly, and al-
low rope to return gently. Do not let the rope snap
back.

Operating

• After engine warms up, pull throttle lever (1) to ac-
celerate engine speed (shown Fig.1 pos.H).
• Engage the required gear (7) and slowly squeeze
the clutch control lever (4). Press the latch (Fig. 8
Pos.A) to operate with the clutch lever (4). If the
gear does not engage straight away, slowly release
the clutch lever (4) and try again.
Steering
The dumper has the steering levers (3)+(5) on the
handlebars and this makes steering very easy. To
turn right or left, simply operate the corresponding
right (3) or left (5) steering lever.
The sensitivity of the steering increases in proportion
to the speed of the machine and that with the empty
machine, a light pressure on the lever is all that is
needed to turn. While when the machine is loaded,
more pressure is required.
m Attention!
The dumper has a maximum load capacity of
300kg. However, it is advisable to assess the load
and adjust it according to the ground on which the
machine will be used.
It is therefore advisable to cover such stretches us-
ing low gear and taking extra care. Avoid sharp turns
and frequent changes of direction while driving on
the road, in particularly on rough, hard terrains full of
sharp, uneven points with a high degree of friction.
Remember that the unit has all-wheel drive but
you need to be careful when working under ad-
verse weather conditions (ice, heavy rain and
snow) or at soil types that can lead to instability
of the dumper.
Please note that this is a wheeled vehicle that
considerable pitching when driving over bumps,
holes and steps subject.
When the clutch control lever (4) is released, the
machine will stop and brake automatically.
If you stop the machine on a steep slope, you
should position a wedge in the direction of fall
to secure the device.
