Instruction manual

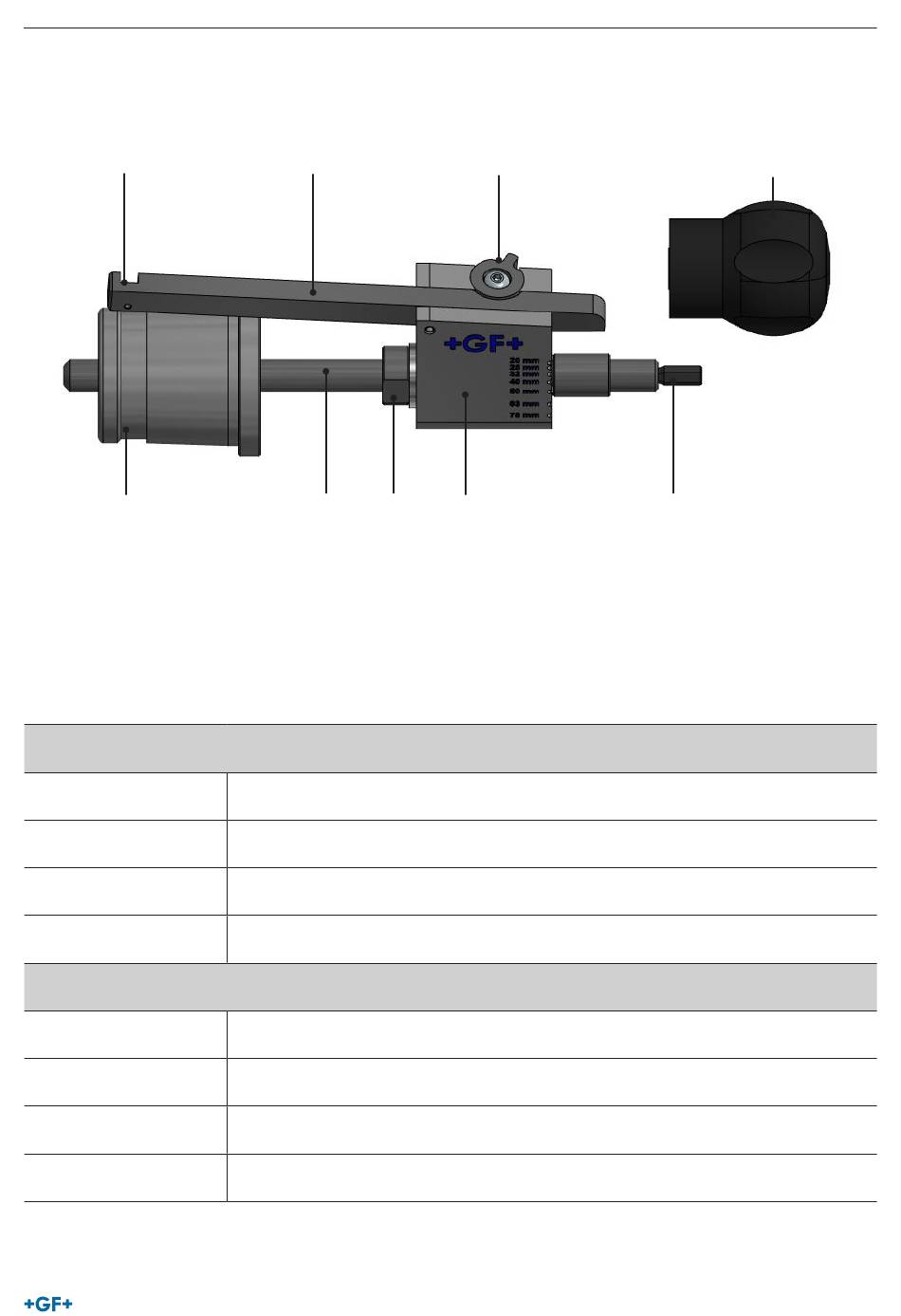

4.3
RSE Multi (multiple dimension)
1
5
1
Peeling blade
2
Peeler arm
3
Locking wheel
4
Handle
4.4
Technical data RSE Multi
Pipe dimension [mm]
Suitable for pipes made of
Max. Peeling length [mm]
Peeling depth [mm]
Product dimension [mm]
Packaging dimension [mm]
Packaging type
Transport weight [kg]
2
6
9
5
Insert
6
Spindle
7
Peeler body Multi
8
Hexagon bit
9
Locking nut
Pipe end peeler RSE Multi, d20 – 75mm SDR11
Dimension, weight and packaging
3
7
20 - 75
PE100RC, PE100, PE-Xa, PP
75
approx. 0.2 (according DVS 2207-1)
290x87x35
391x304x134
Plastic Case
1.9
4
8
29
