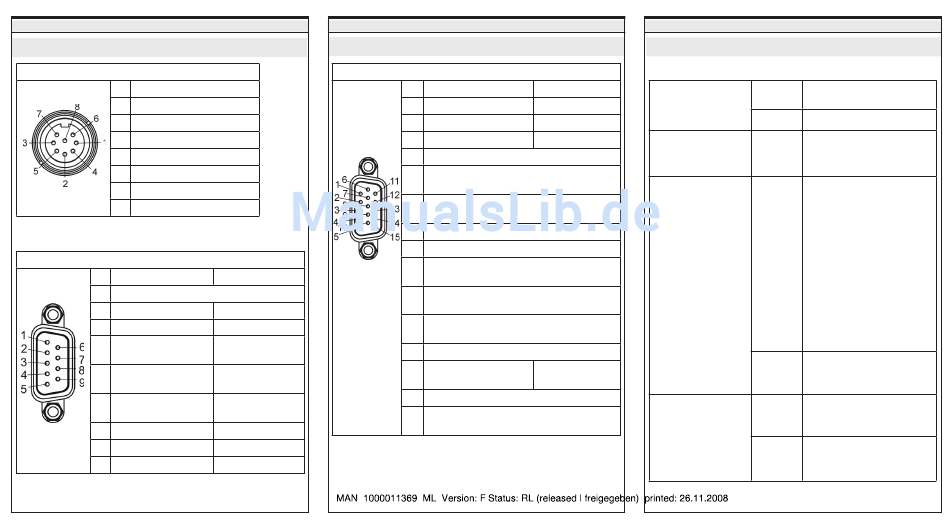

CONNECTION CONFIGURATION
Connection Confi guration Types 8712 and 8702
8-pole socket (circular)
1
24 V supply +
2
Relay 1 centre contact
3
Relay 2 centre contact
4
Relay 1 - breake contact
5
Relay 1 - make contact
6
24 V - supply GND
7
Relay 2 - make contact
8
Relay 2 - break contact
9-pole Sub-D socket (bus version only)
PROFIBUS DP
1
Shield (FE) functional earth
2
n.c. (not connected)
3
RxD/TxD-P B-line
RTS control signal for
4
repeater
GND data transmis-
5
sion potential
VDD supply voltage
6
+ (P5V)
7
n.c.
8
RxD/TxD-N A-line
9
n.c.
CONNECTION CONFIGURATION
Connection Confi guration Types 8712 and 8702
DeviceNet
CAN_L data line
GND
n.c.
n.c.
n.c.
CAN_H data line
n.c.
n.c.
15-pole Sub-HD socket
Analoge drive
Bus version
1
Setpoint input +
n.c.
2
Setpoint input GND
n.c.
3
Process value output +
n.c.
4
Binary input 2
12 V output
5
(For factory use only!)
RS232 TxD
6
(direct connection to PC)
7
Binary input 1
8
DGND (for binary inputs)
For factory use only!
9
(Do not connect!)
12 V output
10
(For factory use only!)
12 V output
11
(For factory use only!)
12
Binary input 3
Process value
13
n.c.
output GND
14
RS232 RxD (direct connection to PC)
DGND
15
(for RS232 interface)
CONNECTION CONFIGURATION
LEDs to indicate the operating mode
Default confi guration
POWER LED
The device is supplied with
lights
operating voltage.
fl ashes
Autotune function activated.
(green)
COMMUNICATION
The device communicates
LED
lights
via bus or RS232.
(yellow)
LIMIT (y) LED
With MFC:
indicates that the correcting
variable of the valve has
almost reached 100%. In
practice, this usually means
that the pressure at the con-
troller is insuffi cient to realize
lights
the desired fl ow rate.
With MFM:
indicates that the process
value has almost reached the
nominal fl ow rate.
The device is in an operating
fl ashes
mode other than control or
Autotune.
(blue)
ERROR LED
Not a serious error, e.g.
lights
Autotune not completed
successfully or faulty LED.
Serious error, e.g. sensor
fl ashes
breakage or faulty internal
voltage supply.
(red)
