5
Maintenance and service
6
Technical data
Description
7

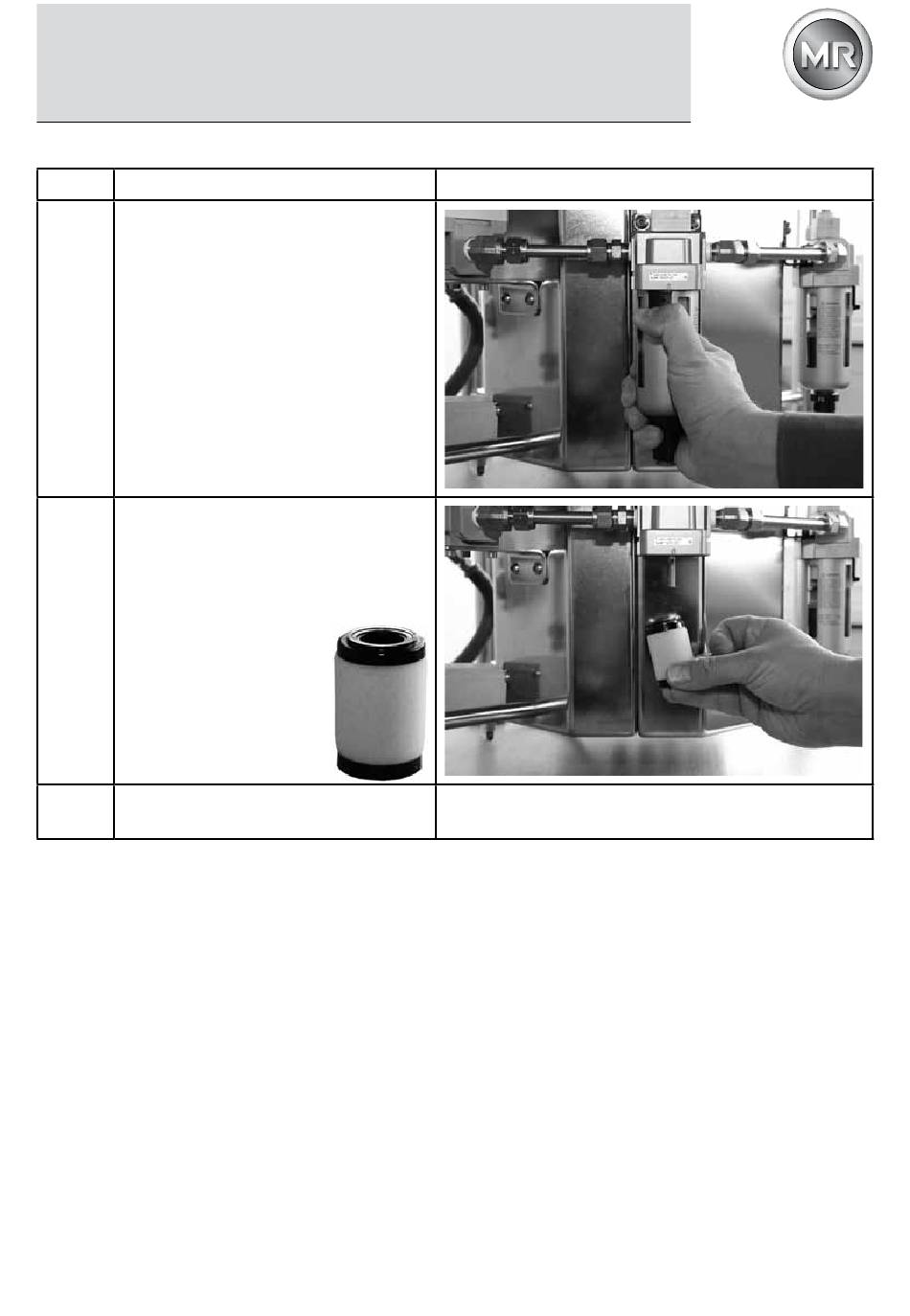

Proceed in the same manner when
replacing the main filter.
8
Replace the filter insert of the main
filter with a new one.
In this case, the light-coloured filter
and black plastic top and bottom
parts form a unit and must be re-
placed together .
Manufacturer: SMC
Part-no . AFM30P-060AS
9
Complete the installation in reverse
order (steps 5, 4, 3, and 2) .
6
Technical data
Housing:
Dimensions:
approx . 800 mm x 600 mm
x 600 mm
Weight:
approx . 50 kg
Software:
MPreC
System requirements:
MS Windows XP incl . SP 3
or
newer MS Windows version;
Language: English/Chinese;
Measuring cycles: 1, 5 or 10 can
be set
Power supply:
Supply voltage:
110/230 V
Mains frequency:
50/60 Hz
Power input:
approx . 25 W
BA 3451814/00 DE-EN
pressure test bench
®
Compressed air supply:
Pressure:
Compressed air quality:2 .2 .4 (dust,oil and water free)
Measured value of pressure:
Measuring range:
Accuracy:
Ports:
USB:
Operating conditions:
Class of protection:
Operating temperature: -10° C . . . +50° C
min . 4 .0 bar to max . 10 bar
in accordance with ISO 8573-1:
2001 (E) .
4 psi . . . 30 psi
±1 psi (range 4 psi to 12 psi)
±2 psi (range 15 psi to 30 psi)
USB type B
IP 55 (control cabinet)
27
