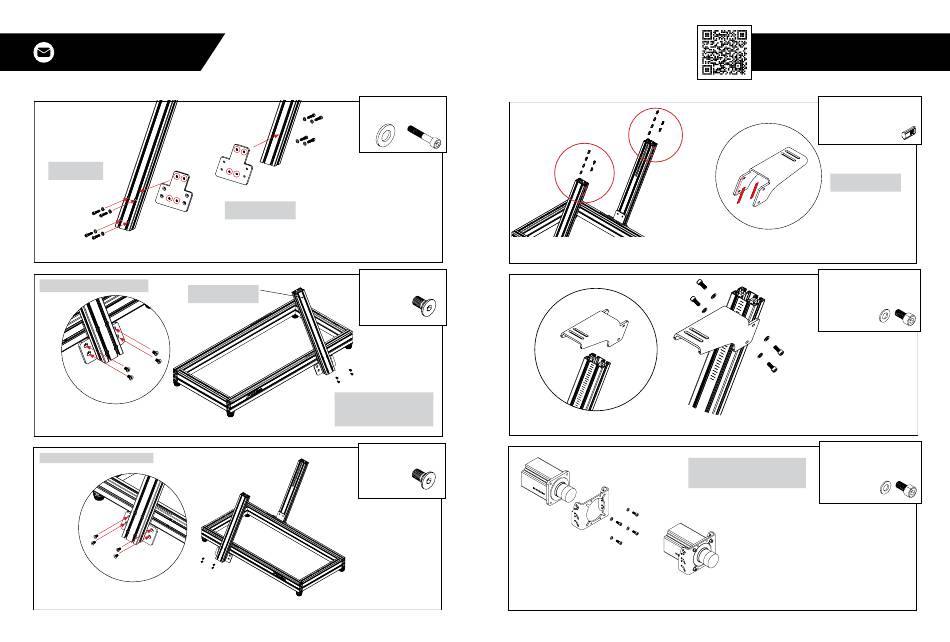

Note: Recess holes to
be on outside
L
L
09: Install corresponding "T" Plate on left and right vertical extrusions with laser engraved lines facing the plate inward
Note: Reference step 1b for T-nut placement
Note: Angle towards rear of
cockpit like image shown
10: Bolt right post to the right base member using T-nuts previously installed in step 1b
Note: Reference step 1a for T-nut placement
11: Repeat step 10 on the opposite side
8 X M8 35mm bolt
8 X M8 washer
R
R
Note: Parts are labeled for
left and right side application
4 X M8 countersunk bolt
Note: If installation of T-nut has been
missed you can simply remove bolt and
washer to gain access to channel then
re-install the bolt and washer
4 X M8 countersunk bolt
14
PARTS
12a: Slide 4 x T-nut in to the front channel of both uprights, push two T-nuts to the bottom for pedal plate bracket.
Slide 2 x T-nut in to the back channel of both uprights.
PARTS
12b: Bolt through mounting arm in to T-nuts installed in 12a
PARTS
(A)
13a: Bolt through wheel front mount bracket in to your wheel base
Video Instruction: bit.ly/nlrbuild
4 X sticky felt pads 10mm x 90mm
Note: Install felt pads to
inside of mounting arm
Note: If using side mount
wheel base skip to 13f
(B)
(C)
15
PARTS
12 X M8 regular T-nut
PARTS
4 X M8 16mm bolt
4 X M8 washer
PARTS
4 X M8 16mm bolt
4 X M8 washer
