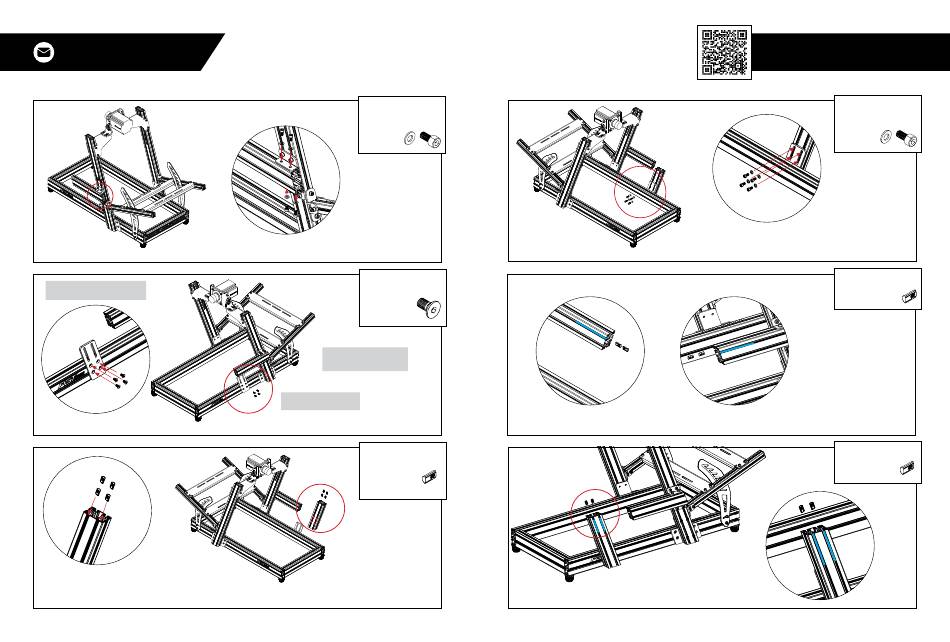

26: Select your height then bolt through the shifter brackets into T-Nuts from step 25

Note: Do not tighten countersunk bolts

until alignment with shifter arm is correct

27: Bolt shifter extension plate to the base on the side you have installed T-nuts for your shifter in step 1a or 1b

28: Install 4 x T-Nuts into the inside channel of the shifter support bar (Longest shifter arm from contents page). Slide them

to the bottom of the bar to line up with the bracket from step 27 (Red dots are T-nut placement)

4 X M8 16mm bolt

4 X M8 washer

4 X M8 countersunk bolt

Note: Add this plate to the same

side you installed the shifter bracket

Note: Shifter arm bracket should

be angled towards the back

4 X M8 regular t-nut

PARTS

29: Bolt through shifter arm bracket into previously installed T-Nuts from step 28

PARTS

INSIDE VIEW

30a: Install 2 x T-Nuts into each of the top side channels (highlighted in blue)

PARTS

30b: Install 1 x T-Nut into each of the channels (highlighted in blue)

Video Instruction: bit.ly/nlrbuild

4 X M8 16mm bolt

4 X M8 washer

4 X M8 regular T-nut

OUTSIDE VIEW

2 X M8 regular T-nut

PARTS
