Next Level Racing F-GT ELITE Bedienungsanleitung Seite 14

support@nextlevelracing.com

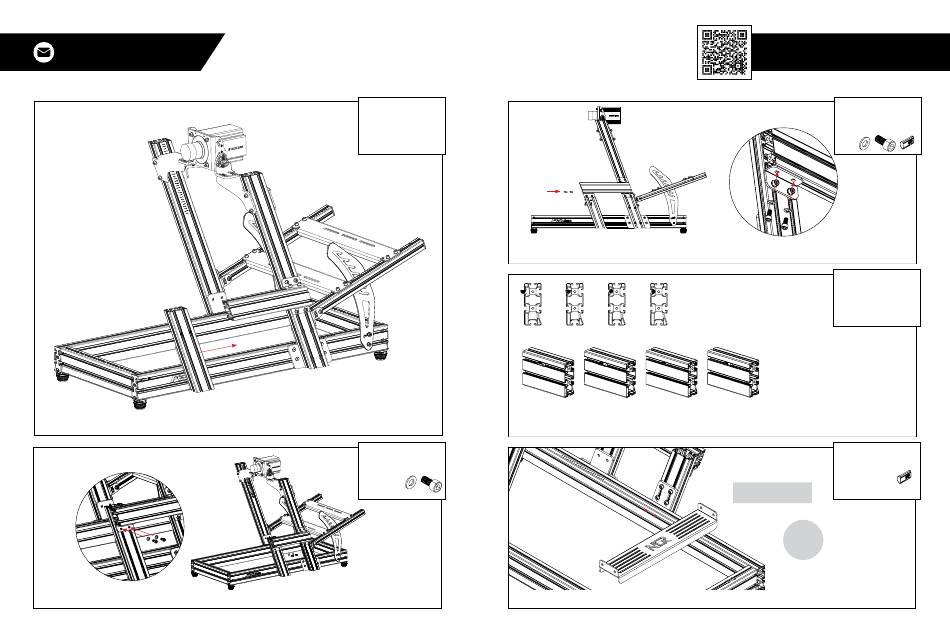

31: Slide the shifter support bar to align with shifter arm
32: Bolt through bracket into large shifter arm using T-Nuts previously installed in step 30b
2 X M8 16mm bolt
2 X M8 washer
26
PARTS
NIL
33: Install 2 x T-Nuts into the bottom channel of the medium shifter support arm then bolt through bracket into the T-Nuts
(1) (2)
(1) (2)
34a: These instructions help with step 34b: (1) Align T-Nut with channel (2) Place T-Nut sideways into the channel (3) Push
T-Nut into the channel (4) Align within channel by pushing on one edge (5) Push flush (for further details see page 8)
PARTS
34b: Using step 34a install 2 x T-Nut into the top inside channel of each base (Red dots show T-nut placement)
Video Instruction: bit.ly/nlrbuild
(3) (4)
(3) (4)
Note: 2 x T-Nuts on top inside
channel of the base frame
on other
27
PARTS
2 X M8 regular t-nut
2 X M8 16mm bolt
2 X M8 washer
PARTS
NIL
PARTS
4 X M8 regular t-nut
Repeat
side
