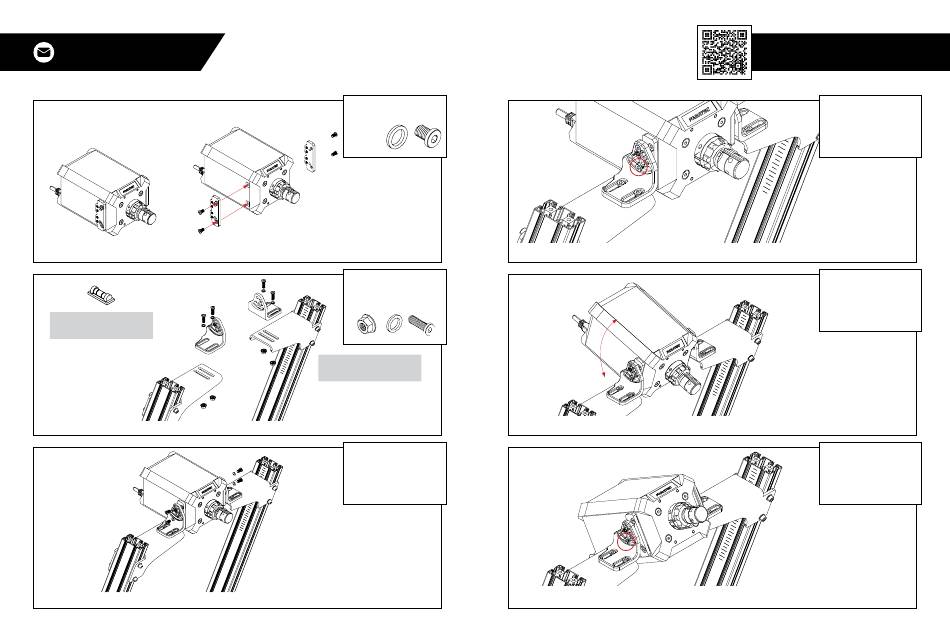

13f: Bolt spacer plates to the wheel base as shown
Note: Use level provided. Wheel bracket
must be kept flat and level during installation
to avoid skewing.
13g Bolt side mount brackets to the mounting arms
13h: Bolt through side mount brackets into spacer plates installed in 13f
4 X low profile M8 14mm bolt
4 X low profile M8 25mm bolt
4 x M8 flange nut
4 x M8 nylon washer
Note: Don't fully tighten bolts until wheel
base is aligned.
4 X low profile M8 14mm bolt
4 x M8 nylon washer
18
PARTS
13i: Loosen the bolt in the slot to adjust the angle of the wheel base
PARTS
14a: Angle adjustment range shown
PARTS
14b: Tighten bolt in slot to lock angle in position
Video Instruction: bit.ly/nlrbuild
