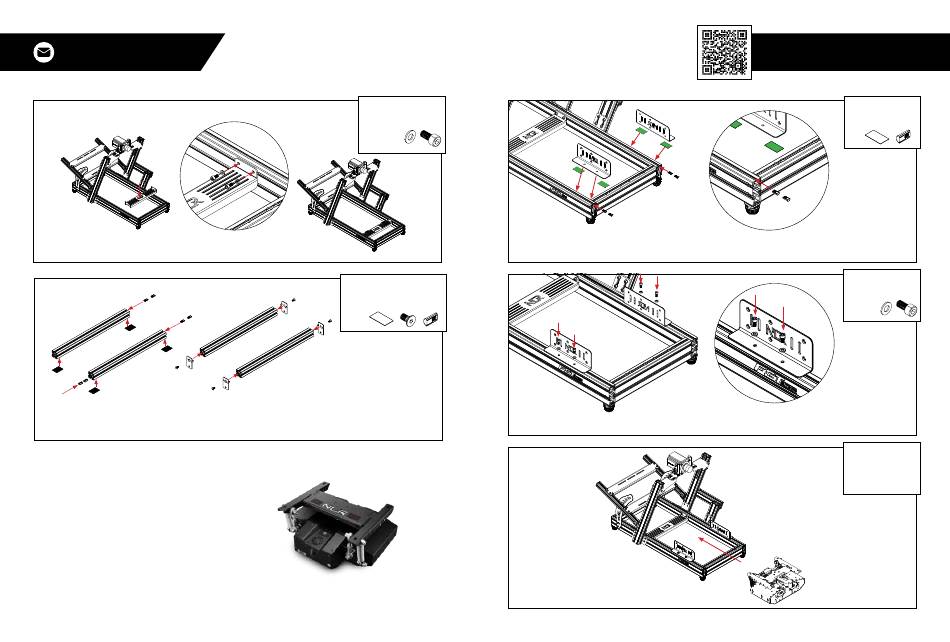

35: Bolt through safety step into T-Nuts previously installed in step 34b and adjust to desired position
(A)
36: A: Install 2 x T-Nuts into the bottom channel for the Buttkicker mount pole, install 2x T-Nuts into the top channel
of both seat slider bars. Then attach felt pads to the bottom
B: Bolt seat slider tabs to the end of the seat slider bars
MOTION V3 STEPS
IF YOU DO NOT HAVE A MOTION V3
PLATFORM SKIP TO STEP 42
4 X M8 16mm bolt
4 X M8 washer
4 X sticky felt pads 35mm x 40mm
6 X M8 regular T-nut
4 X M8 counter sunk screw
(B)
28
PARTS
37: (A) Apply felt shown in green to the bottom of the motion adapter plates. (B) Slide 2 x T-Nuts (each side) in to top
channel of base frame
PARTS
38: Bolt through motion adapter plates into previously installed T-Nuts from step 37
39: Align Motion V3 unit with motion adapter plates
Video Instruction: bit.ly/nlrbuild
4 x Felt pads
4 x regular T-nut
4 x M8 16mm bolt
4 x M8 washer
29
PARTS
PARTS
PARTS
