LISTING PLAN

7.3

SETTING UP CONDITIONS

• Install the Conel Stream in a dry frost-free room away from heat sources;
• Protect from dirt/dust and vibrations;
• Do not expose direct sunlight;
• In this room there must be a floor drain with connection to the public sewer network or a lifting
system (flood protection);
• In this room there must be an outflow (at least DN70) to connect the n emergency overflow located
in the Conel Stream ;
¾ Make sure that the DN 70 pipe adheres to a vertical drop distance of at least 50 cm before a bow
is placed - in the event of an emergency overflow, the water can run smoothly;
¾ As an odor closure, we recommend optionally inserting an additional siphon ;
• Install the Conel Stream horizontally on a flat wall with sufficient distance to the ceiling (minimum
distance 30cm, if possible more – required for maintenance and service work);
• Make sure that the mounting height of Conel Stream (lower edge of the Conel Stream) is above the
backlog level of the public sewer network (risk of flooding from the sewer network);
• To reduce pressure shocks in the piping system and to reduce unnecessary starts /stops of the Conel
Stream we generally recommend the use of as membrane expansion vessel in the pressure line sys-
tem – relieves the piping system and increases the operating life of all components and components
used.
X: Mounting above:
-the backlog level of the congested
Canal network
x

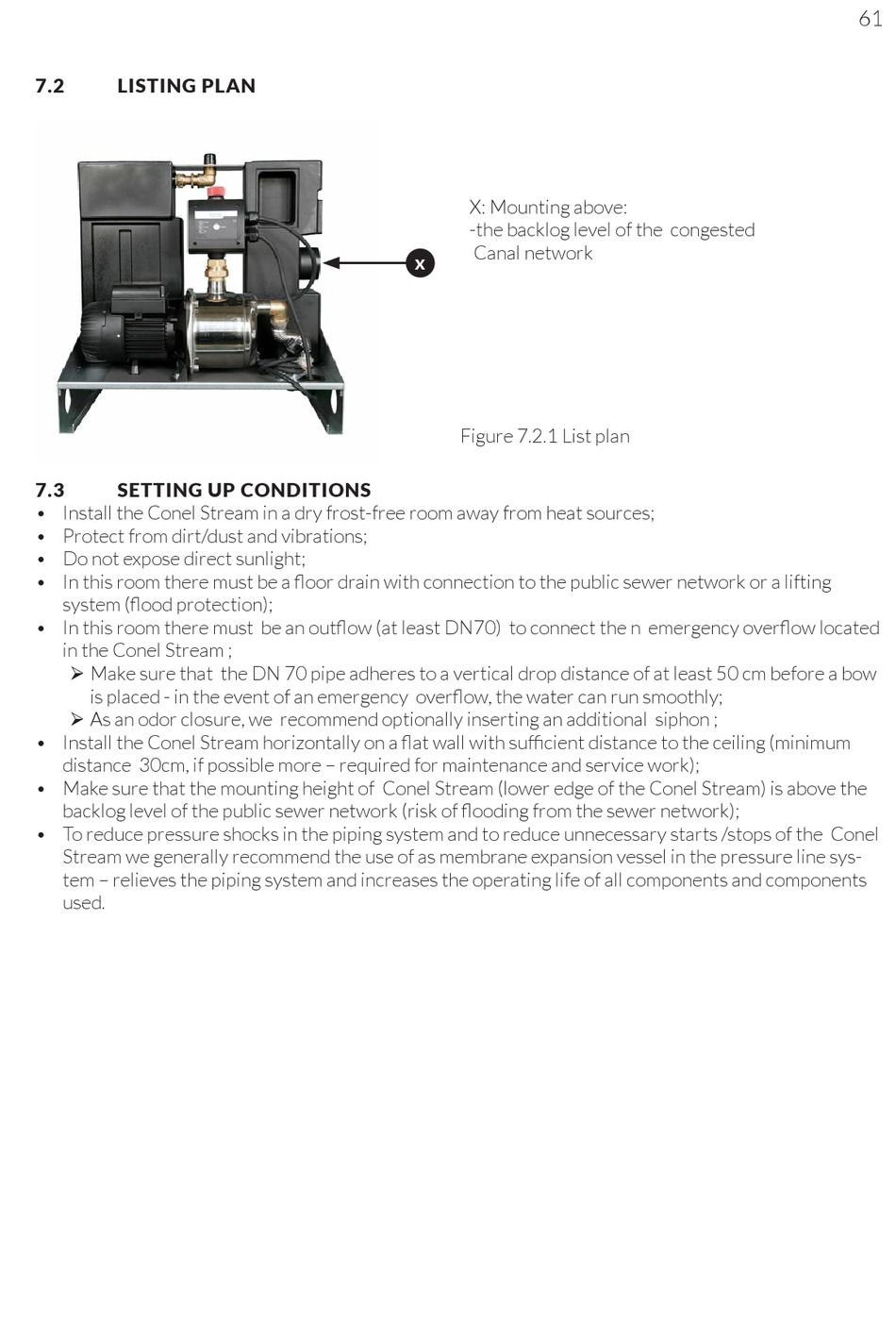

Figure 7.2.1 List plan
