Inlet Screen Installation

Inlet Screen Installation

Figure 11
Figure 12

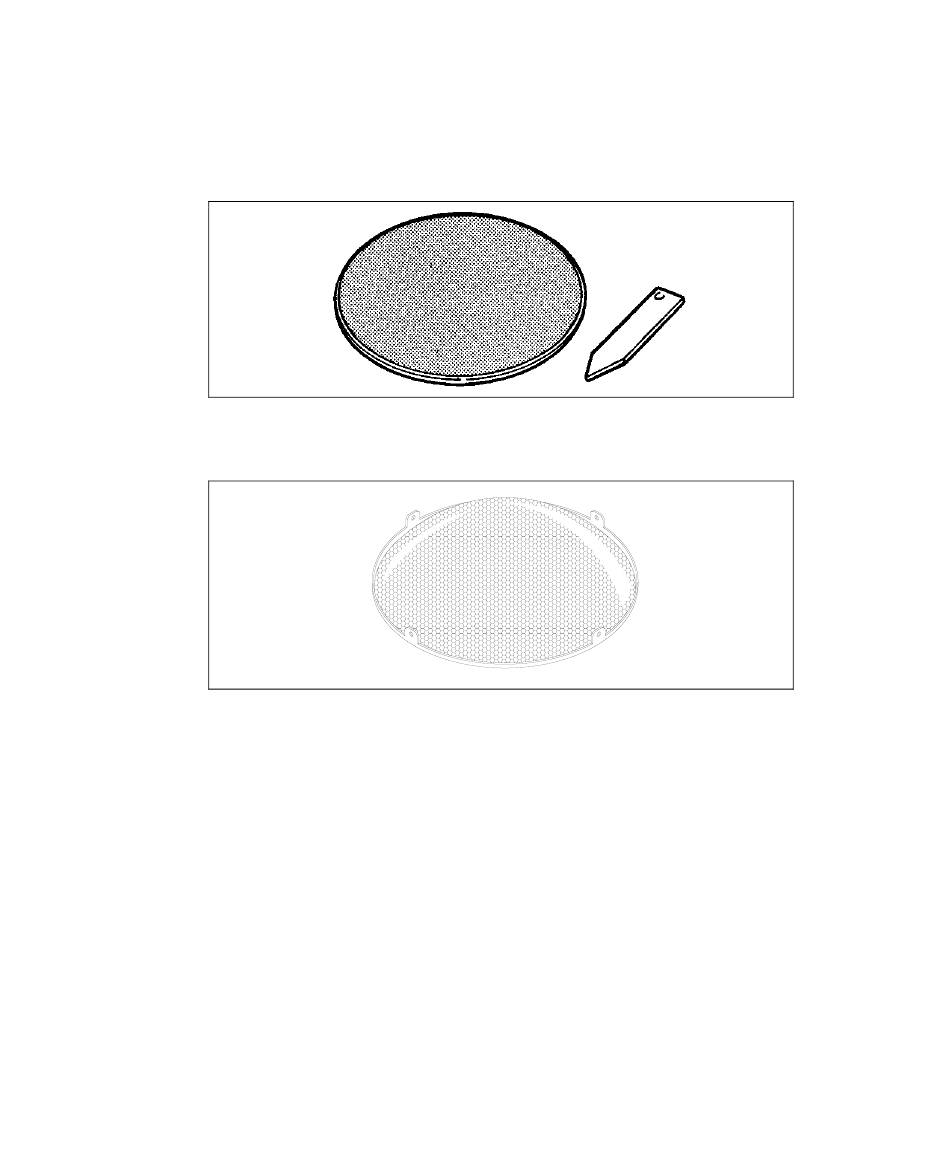

The inlet screens mod. 969-9300 and 969-9309 prevent the blades of
the pump from being damaged by debris greater than 0.7 mm
diameter.
The inlet screen, however, does reduce the pumping speed by about
10%.
The inlet screen is fitted in the upper part of the pump, as shown in
the figure.
