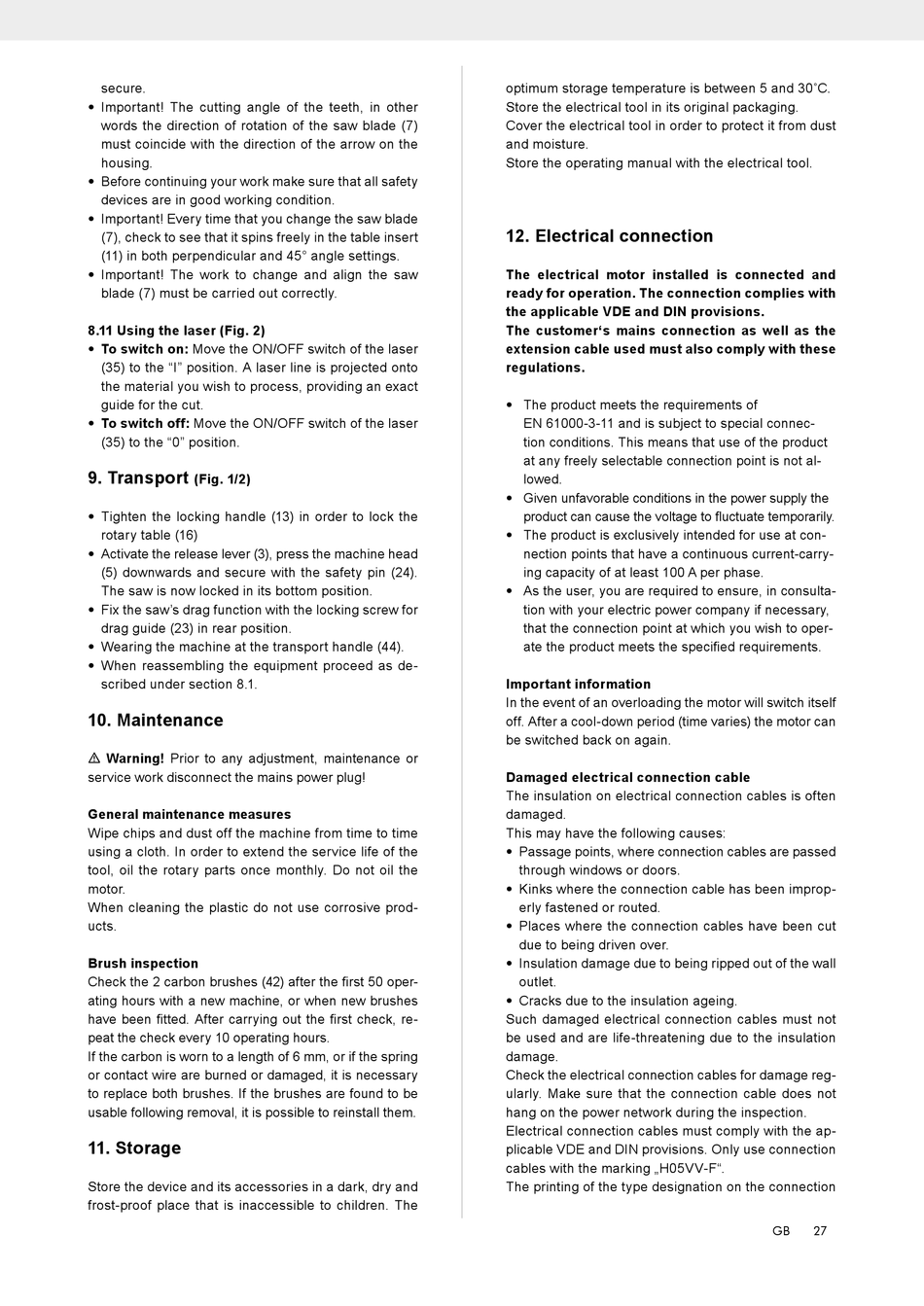

secure.
• Important! The cutting angle of the teeth, in other
words the direction of rotation of the saw blade (7)
must coincide with the direction of the arrow on the
housing.
• Before continuing your work make sure that all safety
devices are in good working condition.
• Important! Every time that you change the saw blade
(7), check to see that it spins freely in the table insert
(11) in both perpendicular and 45° angle settings.
• Important! The work to change and align the saw
blade (7) must be carried out correctly.
8.11 Using the laser (Fig. 2)
• To switch on: Move the ON/OFF switch of the laser
(35) to the "I" position. A laser line is projected onto
the material you wish to process, providing an exact
guide for the cut.
• To switch off: Move the ON/OFF switch of the laser
(35) to the "0" position.

9. Transport

(Fig. 1/2)
• Tighten the locking handle (13) in order to lock the
rotary table (16)
• Activate the release lever (3), press the machine head
(5) downwards and secure with the safety pin (24).
The saw is now locked in its bottom position.
• Fix the saw's drag function with the locking screw for
drag guide (23) in rear position.
• Wearing the machine at the transport handle (44).
• When reassembling the equipment proceed as de-
scribed under section 8.1.

10. Maintenance

m Warning! Prior to any adjustment, maintenance or
service work disconnect the mains power plug!
General maintenance measures
Wipe chips and dust off the machine from time to time
using a cloth. In order to extend the service life of the
tool, oil the rotary parts once monthly. Do not oil the
motor.
When cleaning the plastic do not use corrosive prod-
ucts.
Brush inspection
Check the 2 carbon brushes (42) after the first 50 oper-
ating hours with a new machine, or when new brushes
have been fitted. After carrying out the first check, re-
peat the check every 10 operating hours.
If the carbon is worn to a length of 6 mm, or if the spring
or contact wire are burned or damaged, it is necessary
to replace both brushes. If the brushes are found to be
usable following removal, it is possible to reinstall them.

11. Storage

Store the device and its accessories in a dark, dry and
frost-proof place that is inaccessible to children. The
optimum storage temperature is between 5 and 30˚C.
Store the electrical tool in its original packaging.
Cover the electrical tool in order to protect it from dust
and moisture.
Store the operating manual with the electrical tool.

12. Electrical connection

The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable VDE and DIN provisions.
The customer's mains connection as well as the
extension cable used must also comply with these
regulations.
• The product meets the requirements of
EN 61000-3-11 and is subject to special connec-
tion conditions. This means that use of the product
at any freely selectable connection point is not al-
lowed.
• Given unfavorable conditions in the power supply the
product can cause the voltage to fluctuate temporarily.
• The product is exclusively intended for use at con-
nection points that have a continuous current-carry-
ing capacity of at least 100 A per phase.
• As the user, you are required to ensure, in consulta-
tion with your electric power company if necessary,
that the connection point at which you wish to oper-
ate the product meets the specified requirements.
Important information
In the event of an overloading the motor will switch itself
off. After a cool-down period (time varies) the motor can
be switched back on again.
Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
This may have the following causes:
• Passage points, where connection cables are passed
through windows or doors.
• Kinks where the connection cable has been improp-
erly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the wall
outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage reg-
ularly. Make sure that the connection cable does not
hang on the power network during the inspection.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables with the marking „H05VV-F".
The printing of the type designation on the connection
GB
27
