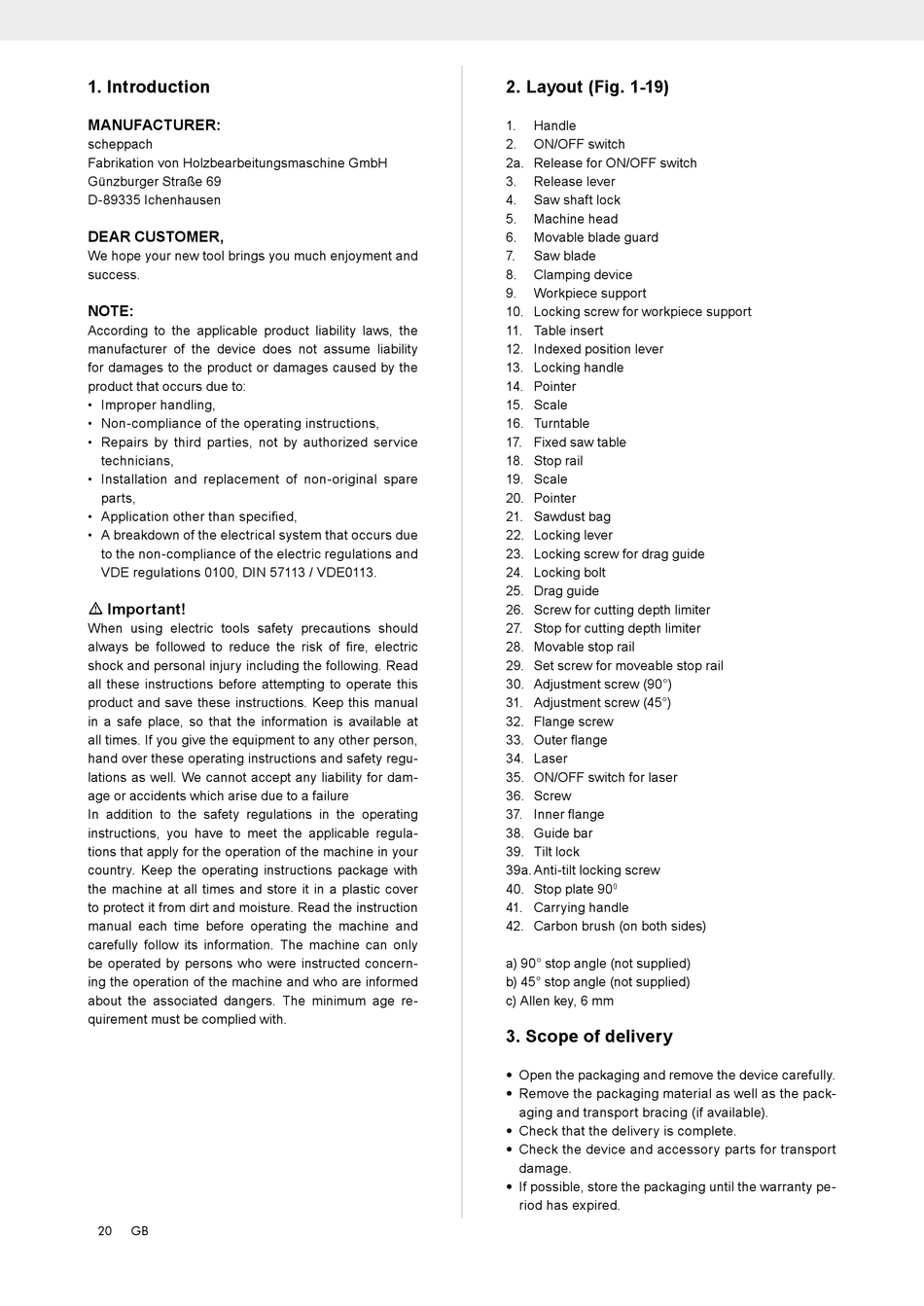

1. Introduction

MANUFACTURER:
scheppach
Fabrikation von Holzbearbeitungsmaschine GmbH
Günzburger Straße 69
D-89335 Ichenhausen
DEAR CUSTOMER,
We hope your new tool brings you much enjoyment and
success.
NOTE:
According to the applicable product liability laws, the
manufacturer of the device does not assume liability
for damages to the product or damages caused by the
product that occurs due to:
• Improper handling,
• Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service
technicians,
• Installation and replacement of non-original spare
parts,
• Application other than specified,
• A breakdown of the electrical system that occurs due
to the non-compliance of the electric regulations and
VDE regulations 0100, DIN 57113 / VDE0113.
m Important!
When using electric tools safety precautions should
always be followed to reduce the risk of fire, electric
shock and personal injury including the following. Read
all these instructions before attempting to operate this
product and save these instructions. Keep this manual
in a safe place, so that the information is available at
all times. If you give the equipment to any other person,
hand over these operating instructions and safety regu-
lations as well. We cannot accept any liability for dam-
age or accidents which arise due to a failure
In addition to the safety regulations in the operating
instructions, you have to meet the applicable regula-
tions that apply for the operation of the machine in your
country. Keep the operating instructions package with
the machine at all times and store it in a plastic cover
to protect it from dirt and moisture. Read the instruction
manual each time before operating the machine and
carefully follow its information. The machine can only
be operated by persons who were instructed concern-
ing the operation of the machine and who are informed
about the associated dangers. The minimum age re-
quirement must be complied with.
20 GB
2. Layout (Fig. 1-19)
1. Handle
2. ON/OFF switch
2a. Release for ON/OFF switch
3. Release lever
4. Saw shaft lock
5. Machine head
6. Movable blade guard
7. Saw blade
8. Clamping device
9. Workpiece support
10. Locking screw for workpiece support
11. Table insert
12. Indexed position lever
13. Locking handle
14. Pointer
15. Scale
16. Turntable
17. Fixed saw table
18. Stop rail
19. Scale
20. Pointer
21. Sawdust bag
22. Locking lever
23. Locking screw for drag guide
24. Locking bolt
25. Drag guide
26. Screw for cutting depth limiter
27. Stop for cutting depth limiter
28. Movable stop rail
29. Set screw for moveable stop rail
30. Adjustment screw (90°)
31. Adjustment screw (45°)
32. Flange screw
33. Outer flange
34. Laser
35. ON/OFF switch for laser
36. Screw
37. Inner flange
38. Guide bar
39. Tilt lock
39a. Anti-tilt locking screw
40. Stop plate 90
0
41. Carrying handle
42. Carbon brush (on both sides)
a) 90° stop angle (not supplied)
b) 45° stop angle (not supplied)
c) Allen key, 6 mm

3. Scope of delivery

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty pe-
riod has expired.
