5.3 Checking drive belt

Check on a monthly basis drive belts condition and the tension on drive belts.

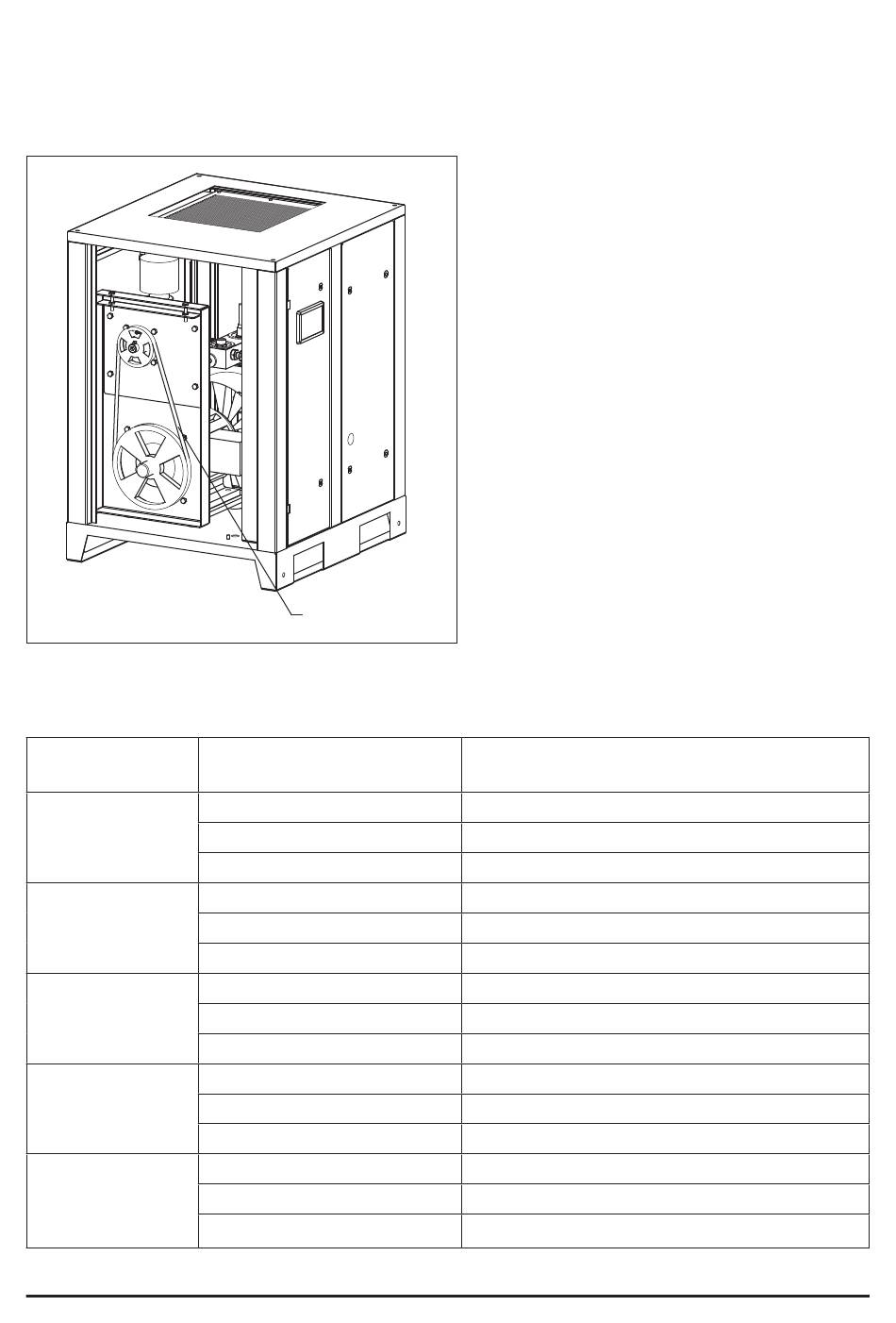

Fig. 5.3 Checking drive belt
Using belt tension gauge, check the tensile force of the compressor belts.
Model
A07, AR07, ARD07
A11, AR11,
ARD11
A15, AR15,
ARD15
A18, AR18,
ARD18
A22, AR22,
ARD22
34
1
Maximum working pressure,
bar
8
10
13
8
10
13
8
10
13
8
10
13
8
10
13
In order to access the belt, stop the com-
pressor and remove the left side panel.
Inspect belts (1) for signs of wear on side
edges and for cracks.
If belts are damaged, then they should
be replaced.
Tension force F,
300
300
400
250
250
300
250
300
300
250
300
300
400
450
500
N
