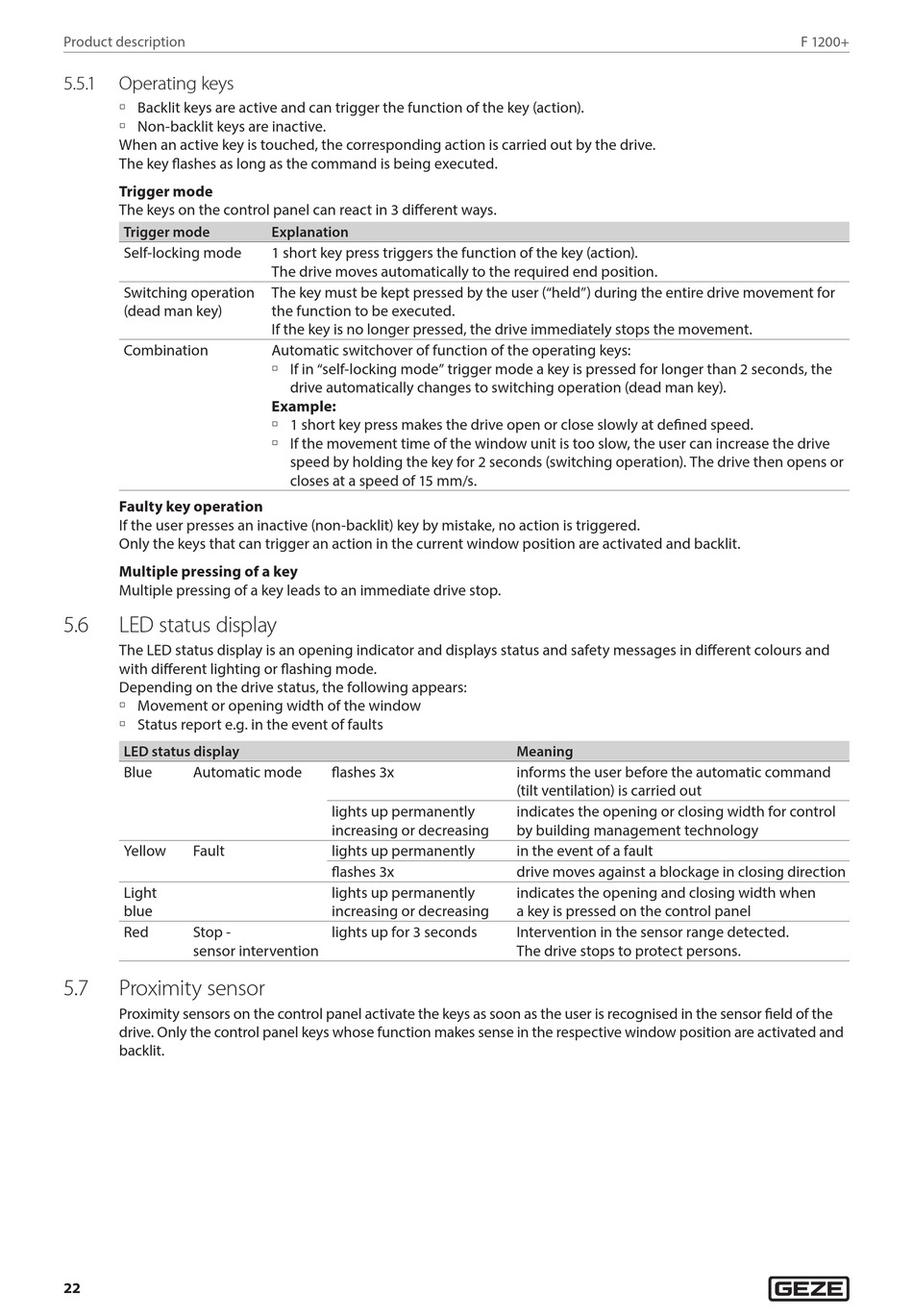

Product description
5.5. 1

Operating keys

à Backlit keys are active and can trigger the function of the key (action).
à Non-backlit keys are inactive.
When an active key is touched, the corresponding action is carried out by the drive.
The key flashes as long as the command is being executed.
Trigger mode
The keys on the control panel can react in 3 different ways.
Trigger mode
Self-locking mode
Switching operation
(dead man key)
Combination
Faulty key operation
If the user presses an inactive (non-backlit) key by mistake, no action is triggered.
Only the keys that can trigger an action in the current window position are activated and backlit.
Multiple pressing of a key
Multiple pressing of a key leads to an immediate drive stop.
5.6

LED status display

The LED status display is an opening indicator and displays status and safety messages in different colours and
with different lighting or flashing mode.
Depending on the drive status, the following appears:
à Movement or opening width of the window
à Status report e.g. in the event of faults
LED status display
Blue Automatic mode
Yellow Fault
Light
blue
Red Stop -
sensor intervention
5.7

Proximity sensor

Proximity sensors on the control panel activate the keys as soon as the user is recognised in the sensor field of the
drive. Only the control panel keys whose function makes sense in the respective window position are activated and
backlit.
22
Explanation
1 short key press triggers the function of the key (action).
The drive moves automatically to the required end position.
The key must be kept pressed by the user ("held") during the entire drive movement for
the function to be executed.
If the key is no longer pressed, the drive immediately stops the movement.
Automatic switchover of function of the operating keys:
à If in "self-locking mode" trigger mode a key is pressed for longer than 2 seconds, the
drive automatically changes to switching operation (dead man key).
Example:
à 1 short key press makes the drive open or close slowly at defined speed.
à If the movement time of the window unit is too slow, the user can increase the drive
speed by holding the key for 2 seconds (switching operation). The drive then opens or
closes at a speed of 15 mm/s.
flashes 3x
lights up permanently
increasing or decreasing
lights up permanently
flashes 3x
lights up permanently
increasing or decreasing
lights up for 3 seconds
Meaning
informs the user before the automatic command
(tilt ventilation) is carried out
indicates the opening or closing width for control
by building management technology
in the event of a fault
drive moves against a blockage in closing direction
indicates the opening and closing width when
a key is pressed on the control panel
Intervention in the sensor range detected.
The drive stops to protect persons.
