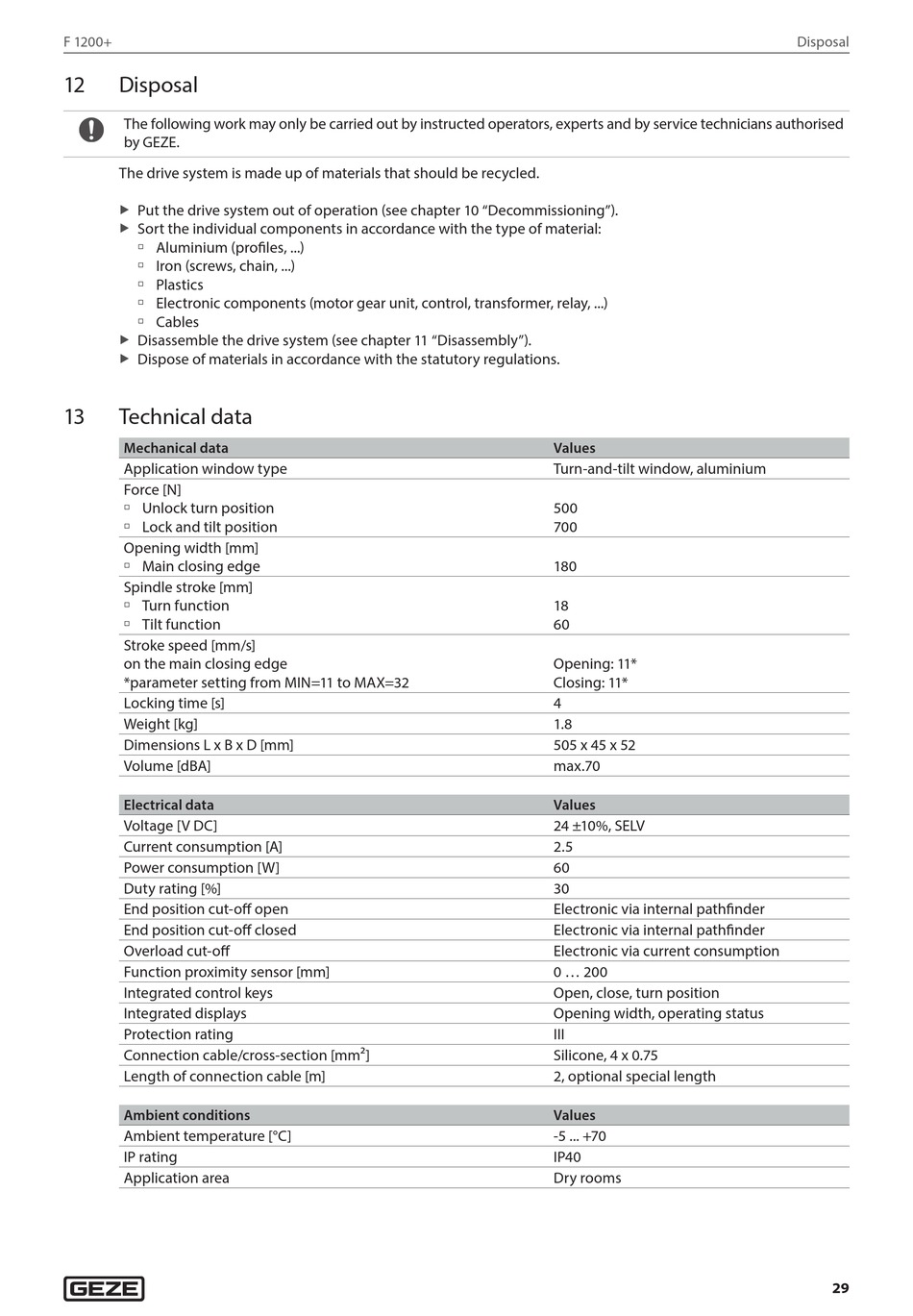

Technical Data - GEZE F 1200+ Originalbetriebsanleitung

F 1200+
12 Disposal
The following work may only be carried out by instructed operators, experts and by service technicians authorised
by GEZE.
The drive system is made up of materials that should be recycled.
Put the drive system out of operation (see chapter 10 "Decommissioning").
X
Sort the individual components in accordance with the type of material:
X
à Aluminium (profiles, ...)
à Iron (screws, chain, ...)
à Plastics
à Electronic components (motor gear unit, control, transformer, relay, ...)
à Cables
Disassemble the drive system (see chapter 11 "Disassembly").
X
Dispose of materials in accordance with the statutory regulations.
X
13

Technical data

Mechanical data
Application window type
Force [N]
à Unlock turn position
à Lock and tilt position
Opening width [mm]
à Main closing edge
Spindle stroke [mm]
à Turn function
à Tilt function
Stroke speed [mm/s]
on the main closing edge
*parameter setting from MIN=11 to MAX=32
Locking time [s]
Weight [kg]
Dimensions L x B x D [mm]
Volume [dBA]
Electrical data
Voltage [V DC]
Current consumption [A]
Power consumption [W]
Duty rating [%]
End position cut-off open
End position cut-off closed
Overload cut-off
Function proximity sensor [mm]
Integrated control keys
Integrated displays
Protection rating
Connection cable/cross-section [mm²]
Length of connection cable [m]
Ambient conditions
Ambient temperature [°C]
IP rating
Application area
Values
Turn-and-tilt window, aluminium
500
700
180
18
60
Opening: 11*
Closing: 11*
4
1.8
505 x 45 x 52
max.70
Values
24 ±10%, SELV
2.5
60
30
Electronic via internal pathfinder
Electronic via internal pathfinder
Electronic via current consumption
0 ... 200
Open, close, turn position
Opening width, operating status
III
Silicone, 4 x 0.75
2, optional special length
Values
-5 ... +70
IP40
Dry rooms
