SICK ATM60 CANopen Montageanleitung Seite 7

MOUNTING INSTRUCTIONS Absolute Encoders Multiturn ATM60 CANopen Adapter
Resolution
up to 26 bits
Absolute Encoders Multiturn
Extremely robust
▀
Bus coupling to CAN high-speed
▀
specification
Electronically adjustable,
▀
resolution adjustable
Highly shock- and
▀
vibration-proof
High degree of protection IP67
▀
For use in NFPA79 applications only.
Interconnection cables and accessories are
available from SICK.
S I C K | 8 0 1 3 4 1 9 / 1 C F 0 / 2 0 2 1 - 0 7 - 0 6 / L F _ 0 7
Subject to change without notice

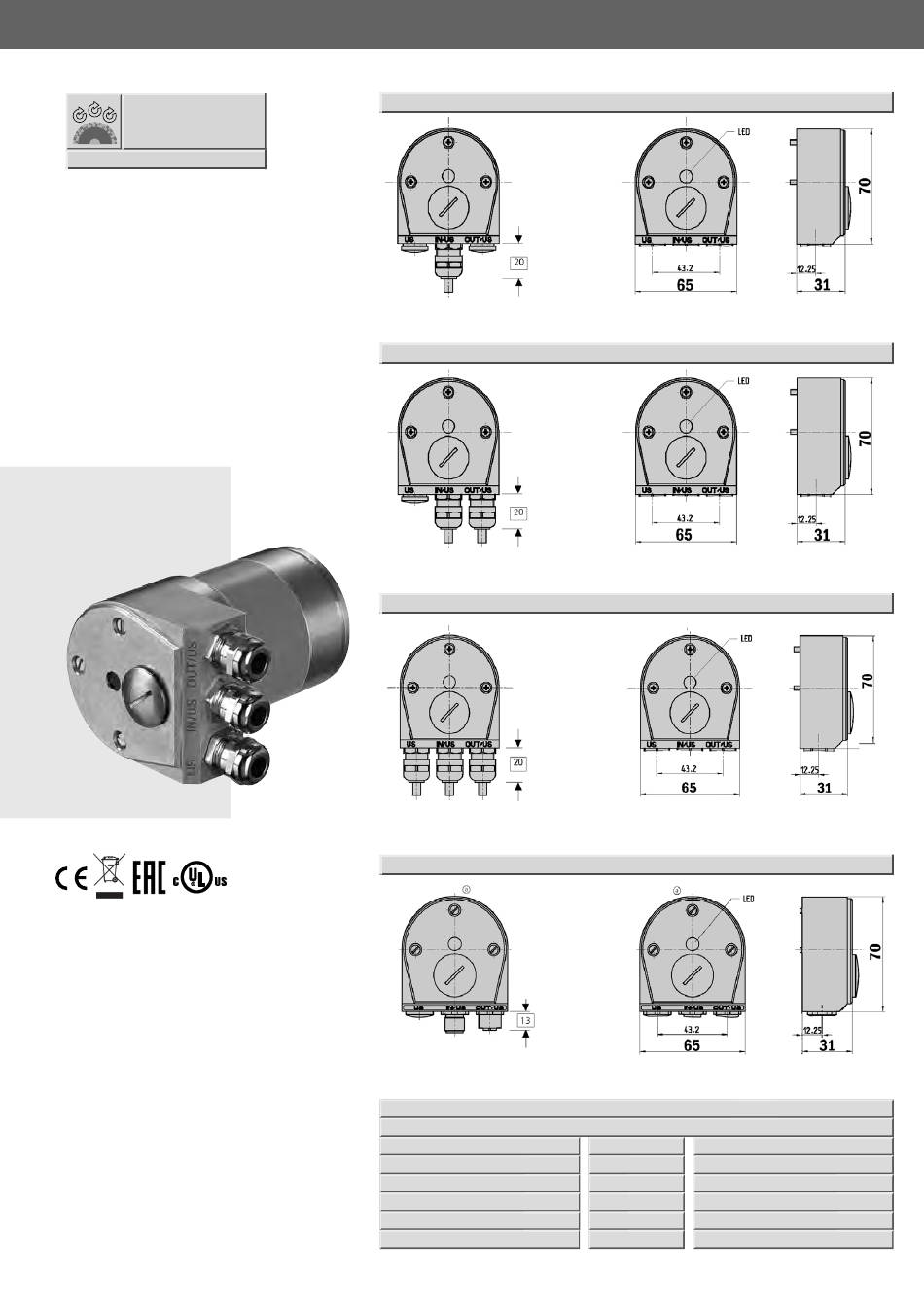

Dimensional drawing CANopen adapter KR1
Dimensional drawing CANopen adapter KR2
Dimensional drawing CANopen adapter KR3
Dimensional drawing CANopen adapter SR2
Order information
ATM60 CANopen adapter
Type
AD-ATM60-KR1CO
AD-ATM60-KR2CO
AD-ATM60-KR3CO
AD-ATM60-SR2CO
AD-ATM60-SR1CO
General tolerances according DIN ISO 2768-mk
General tolerances according DIN ISO 2768-mk
General tolerances according DIN ISO 2768-mk
General tolerances according DIN ISO 2768-mk
Part no. Explanation
2029230 Bus adapter KR1, 1 x PG
2029231 Bus adapter KR2, 2 x PG
2029232 Bus adapter KR3, 3 x PG
2020935 Bus adapter SR2, 2 x M12, 5 pin.
2031686 Bus adapter SR1, 1 x M12, 5 pin.
