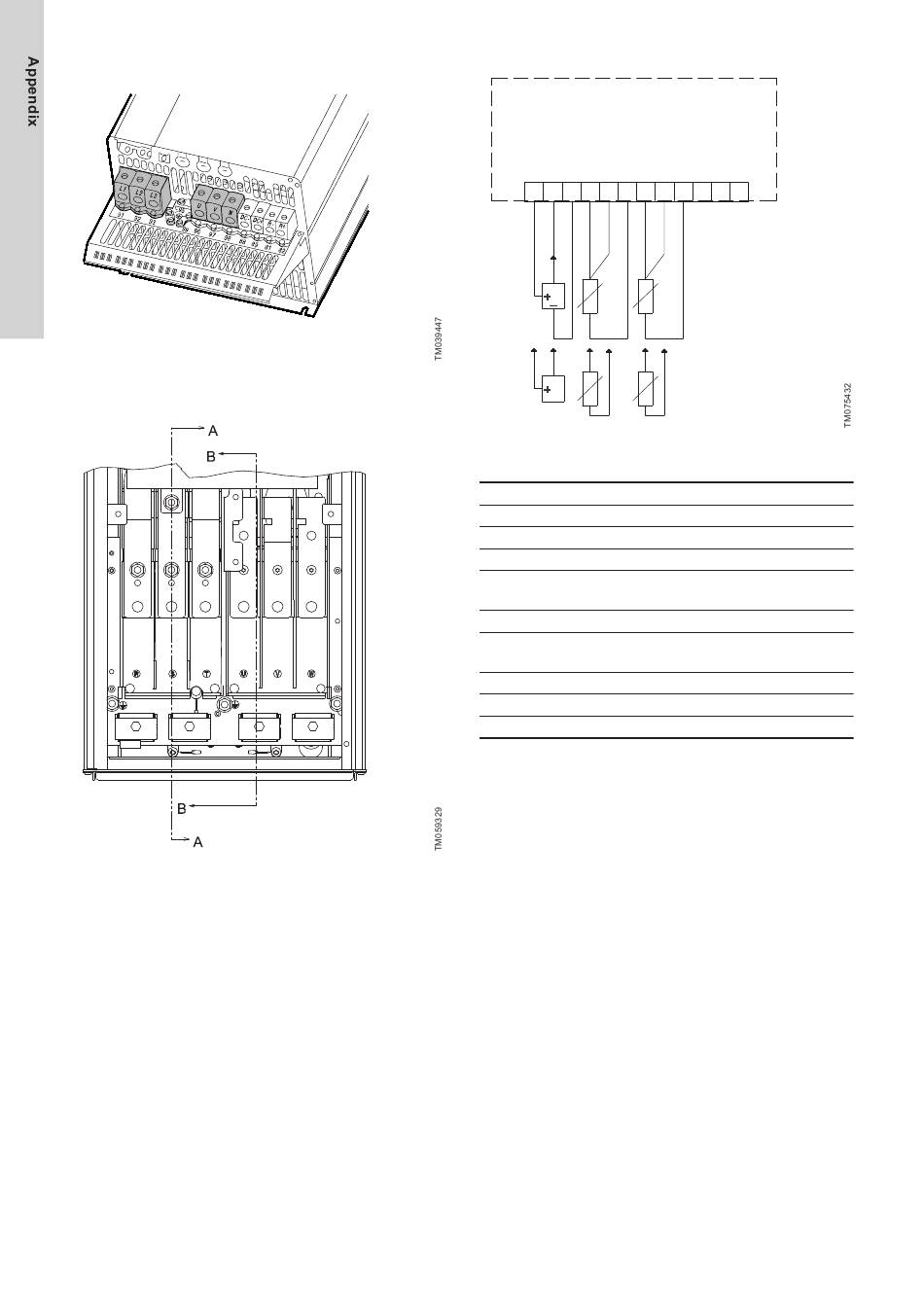

Mains and motor connection, C4
Earth, mains and motor connection for D1h and D2h
218
1 2 3 4 5 6 7
Wiring diagram, MCB 114
Terminal Type Function
1 (VDO) +24 V out Supply to sensor
2 (I IN) AI 3 Sensor 2, 0/4-20 mA
3 (GND) GND Common frame for analog input
4 (TEMP)
AI 4 Temperature sensor 1, Pt100/Pt1000
5 (WIRE)
6 (GND) GND Common frame for temperature sensor 1
7 (TEMP)
AI 5 Temperature sensor 2, Pt100/Pt1000
8 (WIRE)
9 (GND) GND Common frame for temperature sensor 2
A - 3-wire
B - 2-wire
8 9 10 11 12
A
B
