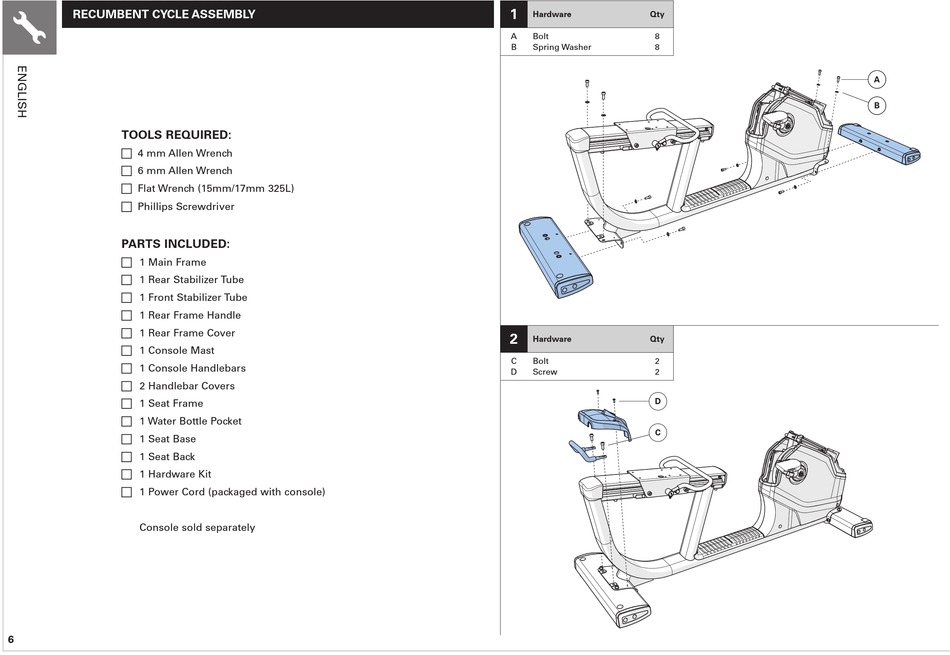

RECUMBENT CYCLE ASSEMBLY
TOOLS REQUIRED:
F 4 mm Allen Wrench
F 6 mm Allen Wrench
F Flat Wrench (15mm/17mm 325L)
F Phillips Screwdriver
PARTS INCLUDED:
F 1 Main Frame
F 1 Rear Stabilizer Tube
F 1 Front Stabilizer Tube
F 1 Rear Frame Handle
F 1 Rear Frame Cover
F 1 Console Mast
F 1 Console Handlebars
F 2 Handlebar Covers
F 1 Seat Frame
F 1 Water Bottle Pocket
F 1 Seat Base
F 1 Seat Back
F 1 Hardware Kit
F 1 Power Cord (packaged with console)
Console sold separately
6
1
Hardware Qty
A Bolt 8
B Spring Washer 8
2
Hardware Qty
C Bolt 2
D Screw 2
D
C
A
B
