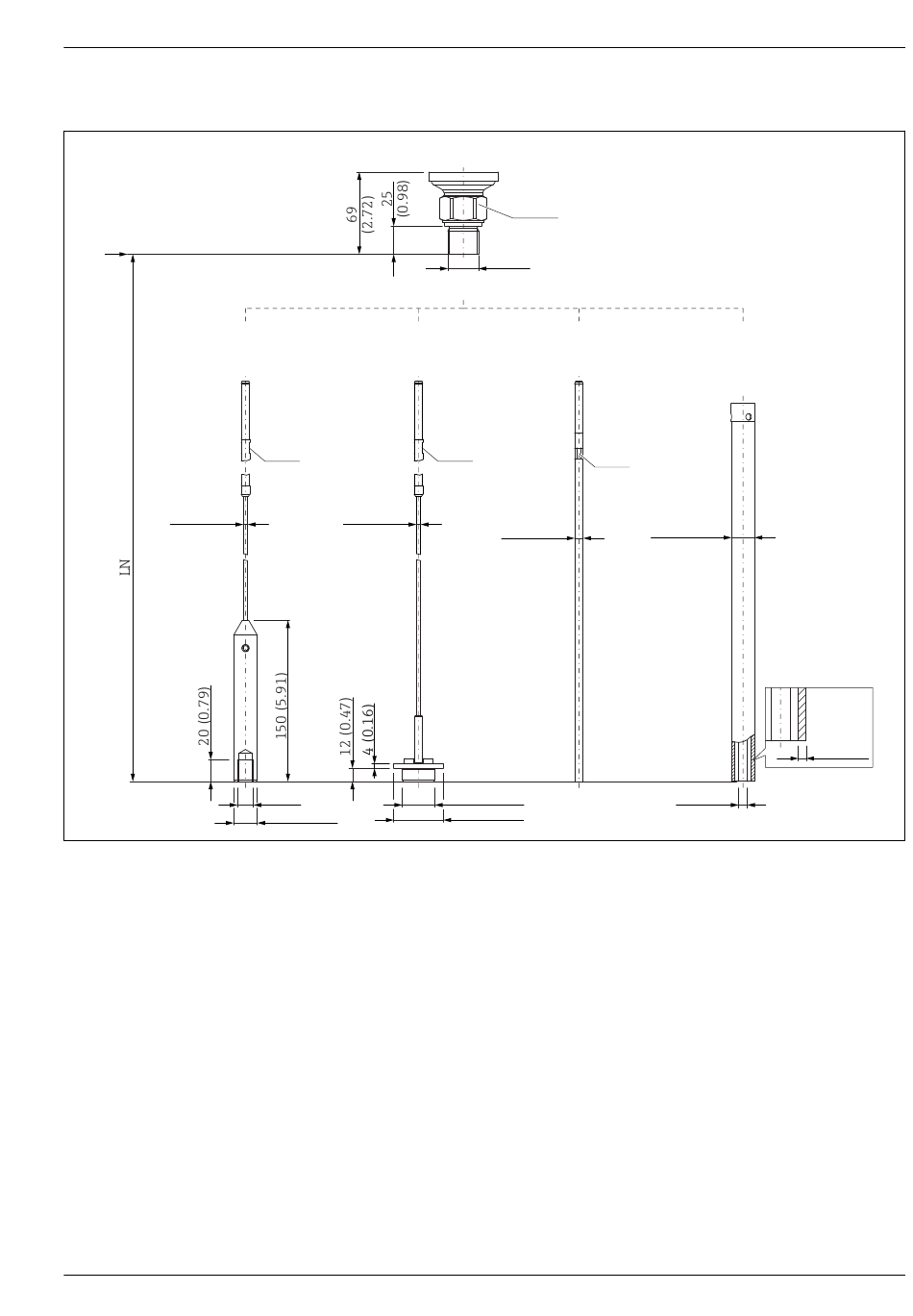

FMP51: Abmessungen Prozessanschluss (G¾,NPT¾)/Sonde
E
F
SW7
AF7
ø4 (0.16)
M14
ø22 (0.87)
18
FMP51: Prozessanschluss / Sonde; Maßeinheit: mm (in). Maßeinheit mm (in)
B
Gewinde ISO228 G3/4 oder ANSI MNPT3/4 (Merkmal 100)
E
Seilsonde 4mm oder 1/6" (Merkmal 060)
F
Seilsonde 4mm oder 1/6"; Zentrierscheibe optional (Merkmale 060 und 610)
G
Stabsonde 8mm oder 1/3" (Merkmal 060)
H
Koaxsonde (Merkmal 060); mit Entlüftungsöffnung Ø ca. 6 mm (0,24 in)
LN
Sondenlänge
R
Referenzpunkt der Messung
B
SW36
AF36
G¾
NPT¾
G
SW7
SW7
AF7
AF7
ø8 (0.31)
ø29.5 (1.16)
ø75 (2.95)
H
ø22 (0.87)
2 (0.08)
8 (0.31)
