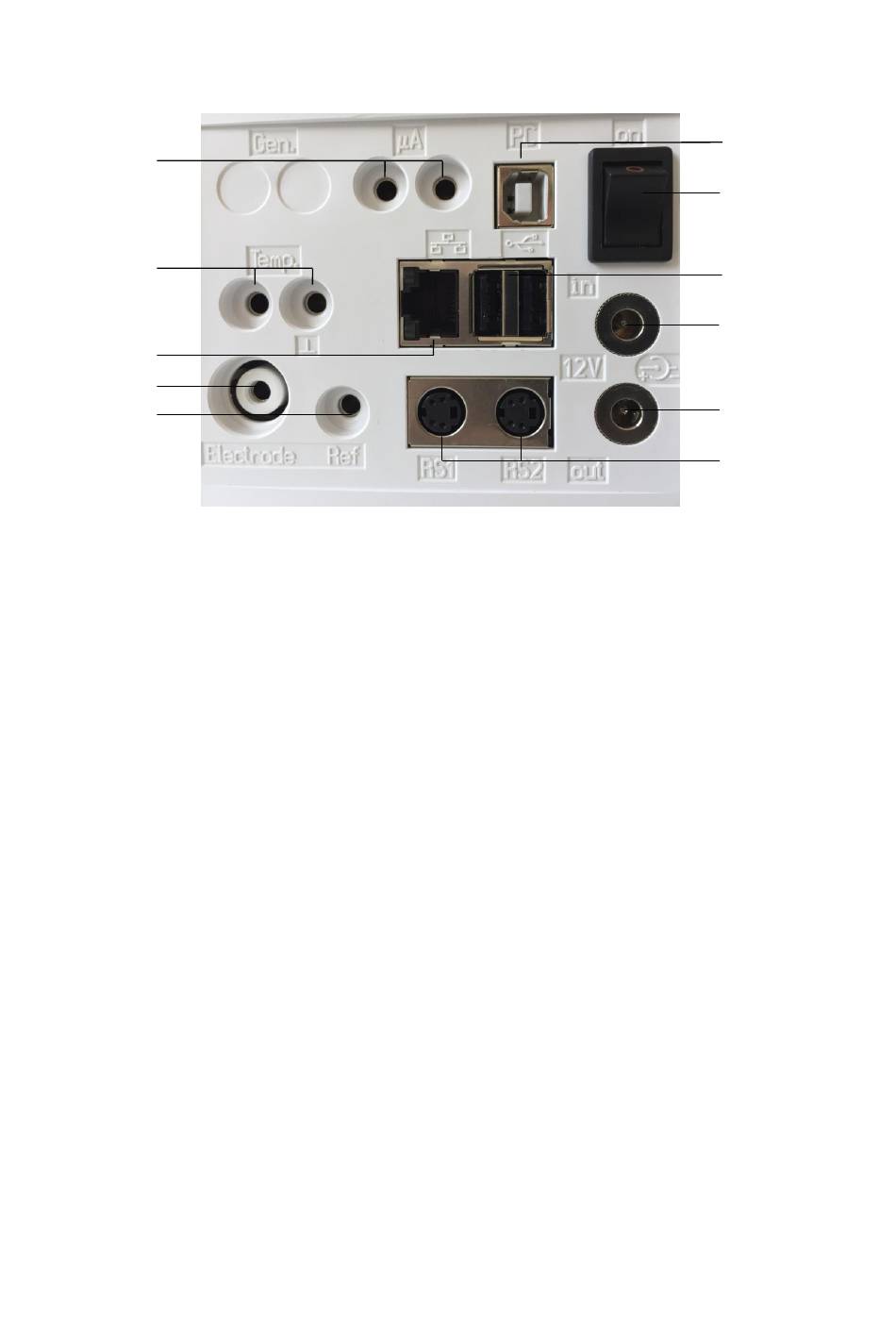

Back panel of the titrator TitroLine
11
10
9
8
7
Fig. 1
®
The TitroLine 7000 is equipped with the following connections:
1) USB-B interface for connection to a PC
2) On/Off switch
Two USB-A ("Master") interfaces for connecting USB devices
3)
Socket "in": Connection of the external power supply TZ 1853
4)
Socket "out": Connection of the TM 235 / TM 235 KF magnetic stirrer
5)
6) Two RS232 ports, 4-channel (Mini-DIN):
RS1 for connection to the PC
RS2 for connection of a weighing balance and other devices from SI Analytics
7) Measurement input for reference electrodes (Ref.)
8) Measurement input 1 (DIN or BNC through adapter) for the connection of pH, redox
and other measurement or combination electrodes
9) Ethernet Interface (LAN)
10) Temperature measurement input for connecting Pt 1000 electrodes
11) µA measurement input for the connection of double platinum electrodes
®
