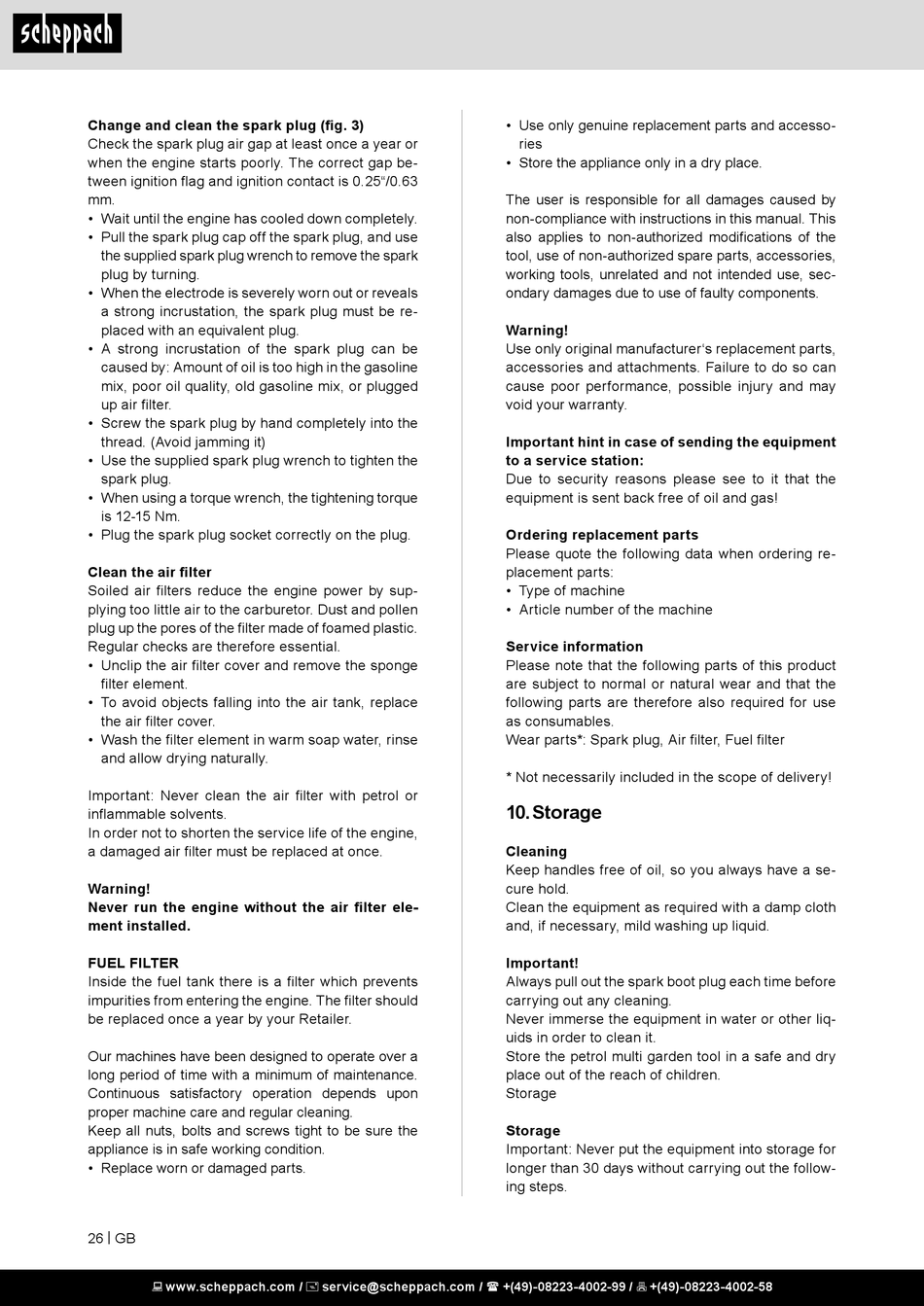

Storage - Scheppach LB5200BP Original Bedienungsanleitung

Change and clean the spark plug (fig. 3)
Check the spark plug air gap at least once a year or
when the engine starts poorly. The correct gap be-
tween ignition flag and ignition contact is 0.25"/0.63
mm.
• Wait until the engine has cooled down completely.
• Pull the spark plug cap off the spark plug, and use
the supplied spark plug wrench to remove the spark
plug by turning.
• When the electrode is severely worn out or reveals
a strong incrustation, the spark plug must be re-
placed with an equivalent plug.
• A strong incrustation of the spark plug can be
caused by: Amount of oil is too high in the gasoline
mix, poor oil quality, old gasoline mix, or plugged
up air filter.
• Screw the spark plug by hand completely into the
thread. (Avoid jamming it)
• Use the supplied spark plug wrench to tighten the
spark plug.
• When using a torque wrench, the tightening torque
is 12-15 Nm.
• Plug the spark plug socket correctly on the plug.
Clean the air filter
Soiled air filters reduce the engine power by sup-
plying too little air to the carburetor. Dust and pollen
plug up the pores of the filter made of foamed plastic.
Regular checks are therefore essential.
• Unclip the air filter cover and remove the sponge
filter element.
• To avoid objects falling into the air tank, replace
the air filter cover.
• Wash the filter element in warm soap water, rinse
and allow drying naturally.
Important: Never clean the air filter with petrol or
inflammable solvents.
In order not to shorten the service life of the engine,
a damaged air filter must be replaced at once.
Warning!
Never run the engine without the air filter ele-
ment installed.
FUEL FILTER
Inside the fuel tank there is a filter which prevents
impurities from entering the engine. The filter should
be replaced once a year by your Retailer.
Our machines have been designed to operate over a
long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon
proper machine care and regular cleaning.
Keep all nuts, bolts and screws tight to be sure the
appliance is in safe working condition.
• Replace worn or damaged parts.
26 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
• Use only genuine replacement parts and accesso-
ries
• Store the appliance only in a dry place.
The user is responsible for all damages caused by
non-compliance with instructions in this manual. This
also applies to non-authorized modifications of the
tool, use of non-authorized spare parts, accessories,
working tools, unrelated and not intended use, sec-
ondary damages due to use of faulty components.
Warning!
Use only original manufacturer's replacement parts,
accessories and attachments. Failure to do so can
cause poor performance, possible injury and may
void your warranty.
Important hint in case of sending the equipment
to a service station:
Due to security reasons please see to it that the
equipment is sent back free of oil and gas!
Ordering replacement parts
Please quote the following data when ordering re-
placement parts:
• Type of machine
• Article number of the machine
Service information
Please note that the following parts of this product
are subject to normal or natural wear and that the
following parts are therefore also required for use
as consumables.
Wear parts*: Spark plug, Air filter, Fuel filter
* Not necessarily included in the scope of delivery!

10. Storage

Cleaning
Keep handles free of oil, so you always have a se-
cure hold.
Clean the equipment as required with a damp cloth
and, if necessary, mild washing up liquid.
Important!
Always pull out the spark boot plug each time before
carrying out any cleaning.
Never immerse the equipment in water or other liq-
uids in order to clean it.
Store the petrol multi garden tool in a safe and dry
place out of the reach of children.
Storage
Storage
Important: Never put the equipment into storage for
longer than 30 days without carrying out the follow-
ing steps.
