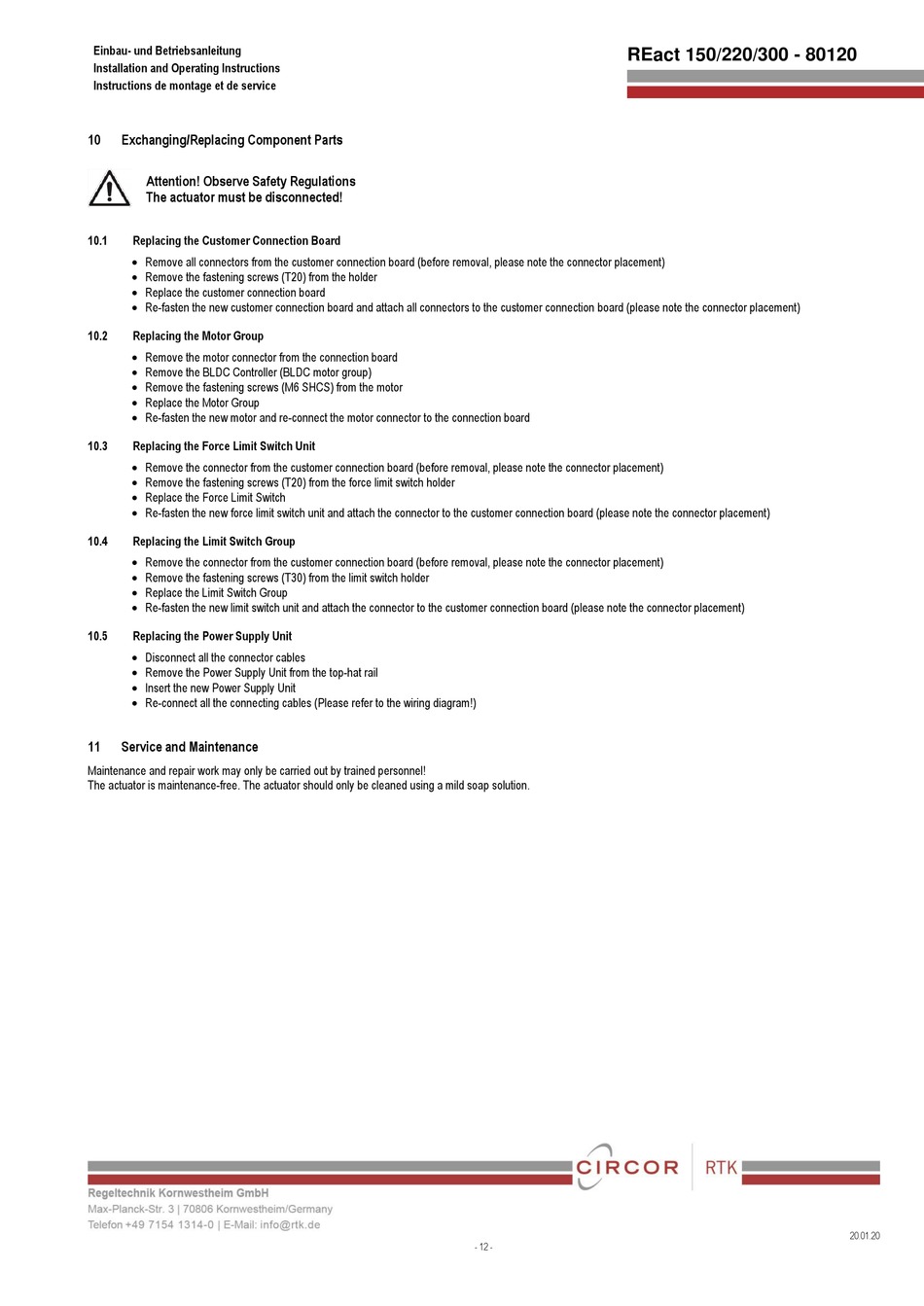

Exchanging/Replacing Component Parts

Attention! Observe Safety Regulations
The actuator must be disconnected!
10.1

Replacing the Customer Connection Board

 Remove all connectors from the customer connection board (before removal, please note the connector placement)
 Remove the fastening screws (T20) from the holder
 Replace the customer connection board
 Re-fasten the new customer connection board and attach all connectors to the customer connection board (please note the connector placement)
10.2

Replacing the Motor Group

 Remove the motor connector from the connection board
 Remove the BLDC Controller (BLDC motor group)
 Remove the fastening screws (M6 SHCS) from the motor
 Replace the Motor Group
 Re-fasten the new motor and re-connect the motor connector to the connection board
10.3

Replacing the Force Limit Switch Unit

 Remove the connector from the customer connection board (before removal, please note the connector placement)
 Remove the fastening screws (T20) from the force limit switch holder
 Replace the Force Limit Switch
 Re-fasten the new force limit switch unit and attach the connector to the customer connection board (please note the connector placement)
10.4

Replacing the Limit Switch Group

 Remove the connector from the customer connection board (before removal, please note the connector placement)
 Remove the fastening screws (T30) from the limit switch holder
 Replace the Limit Switch Group
 Re-fasten the new limit switch unit and attach the connector to the customer connection board (please note the connector placement)
10.5

Replacing the Power Supply Unit

 Disconnect all the connector cables
 Remove the Power Supply Unit from the top-hat rail
 Insert the new Power Supply Unit
 Re-connect all the connecting cables (Please refer to the wiring diagram!)
11

Service and Maintenance

Maintenance and repair work may only be carried out by trained personnel!
The actuator is maintenance-free. The actuator should only be cleaned using a mild soap solution.
REact 150/220/300 - 80120
- 12 -
20.01.20
