8.2.1

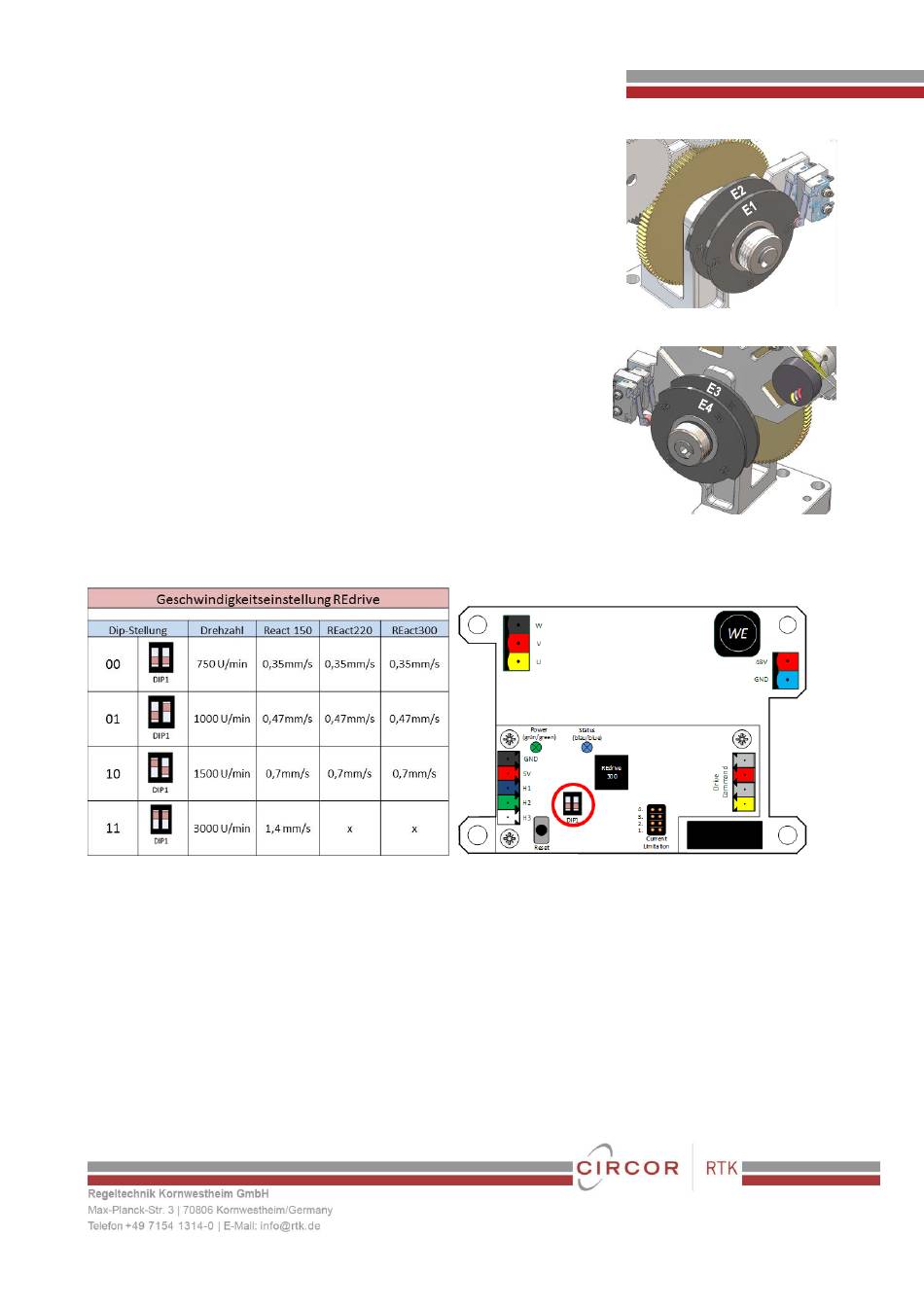

Setting Travel Limit Switches
Travel limit switch E1 is wired in series with force switch K1 for the OPEN direction (spindle retracts) and E2 is wired
in series with force switch K2 for the CLOSE direction (spindle extends).
To limit the travel in the CLOSE direction (spindle extends), the dial E2 is used. Setting wheel E1 is used to limit the
travel in the OPEN direction (spindle retracts).
If the travel limit switches E1 and E2 are not required, they can be turned to the respective end position by means of
the setting washers. The actuator is then switched off via the force switches.
8.3
Setting Additional Limit Switches
The additional limit switches E3 and E4 can be used to signal when any other Intermediate positions are used;
they are set by means of setting washers E3 and E4.
8.4
Setting the Positioning Speed
The Postioning Speed can be set as follows via a two-pole switch (DIP1).
REact 150/220/300 - 80100
