RP-Tools RP-8503P Installations- Und Wartungshandbuch Seite 24

RP-8503P
Stand:. A 2012/07/18

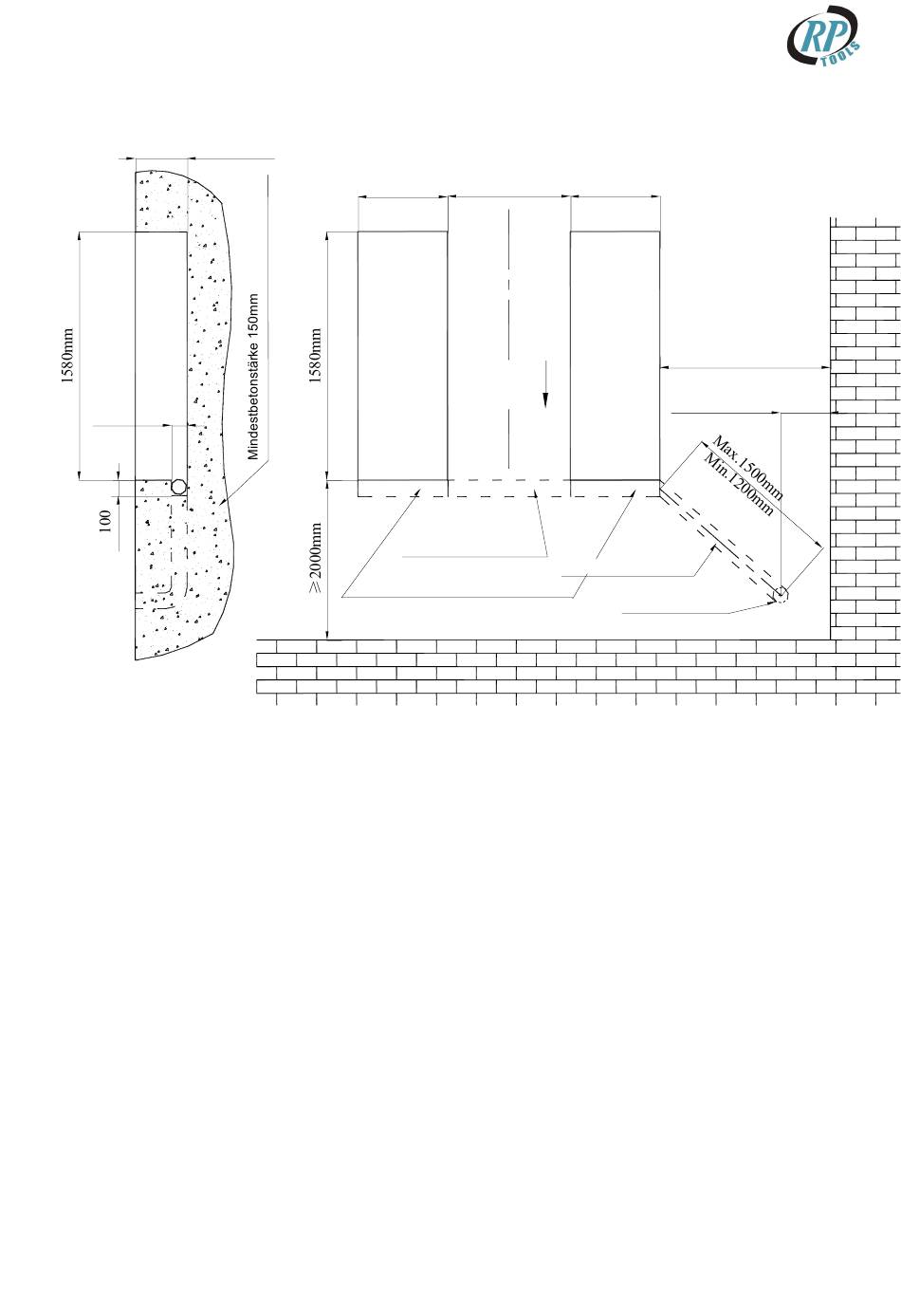

Abb. 13(1) – FUNDAMENTPLAN RP-8503B
100
RP. 01
RP-TOOLS Werkstatt-Technik
330mm
580mm
770mm
EINFAHRT-
Drive up
RICHTUNG
Pipe (inner dia.100)
ROHR Ø100mm
placed here
Pipe (inner dia.100)
ROHR Ø100mm
Groove 100X100mm
Rinne 100x100mm
24 / 41
580mm
Min.1600mm
Min.400mm
To control unit
Zu Steuereinheit
