FITTING THE TRAMPOLINE MAT / MONTERING AV STUDSDUKEN /
MONTERING AV TRAMPOLINEDUKEN / MONTAGE DES SPRUNGTUCHS /
TRAMPOLIININ MATON ASENNUS
13
Trampoline Mat Assembly

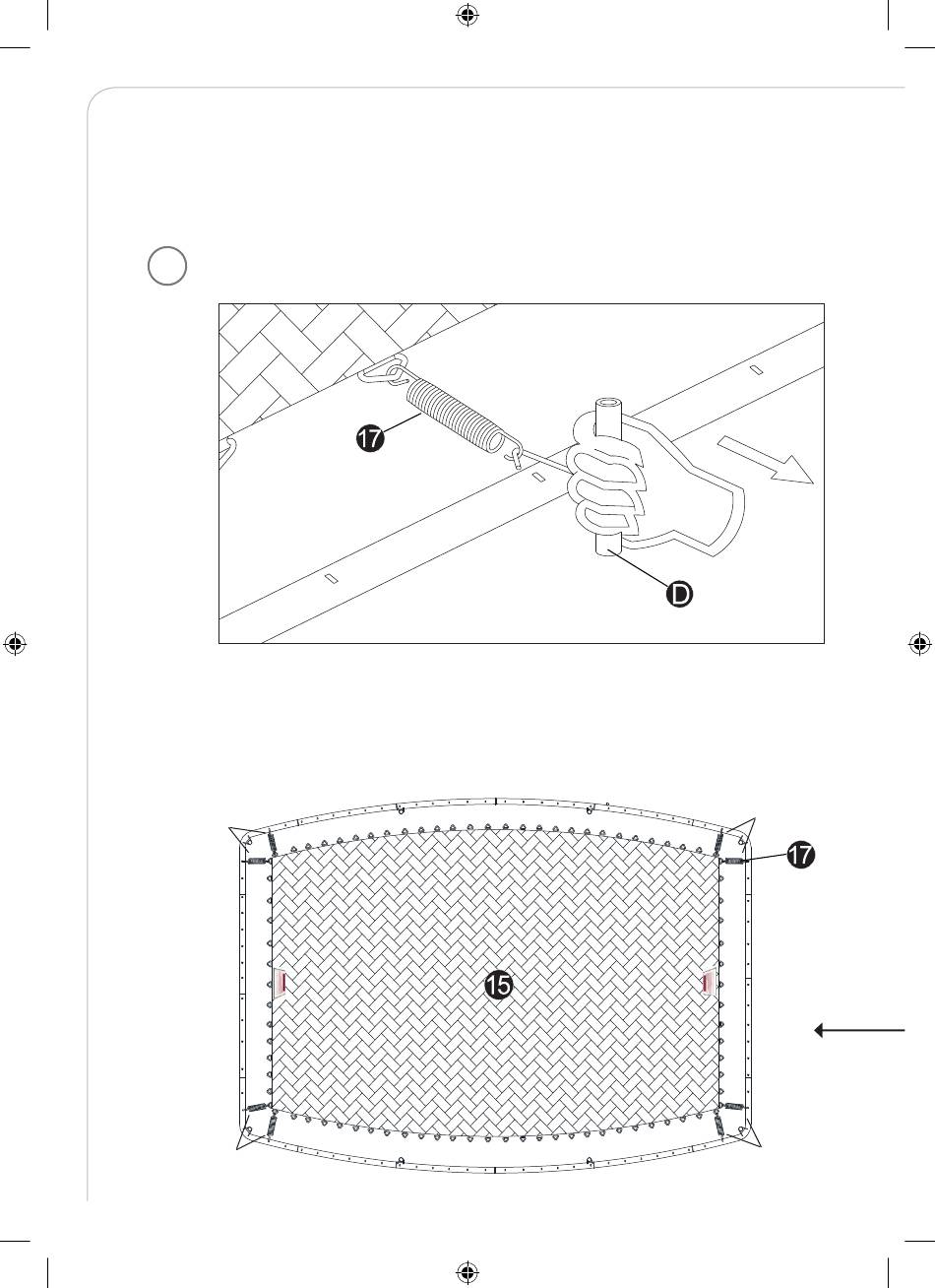

Step 13– Spring Assembly
Place the Trampoline Mat (# 15) flat on the ground inside the assembled frame with the warning labels facing
up. Begin by attaching Springs (# 17) to the four corners of the mat, hook one end of Spring (# 17) into the
Triangle-Ring on the Mat (# 15). Holding the Spring Loading Tool (# D) underhand, pull the other end of the
spring and lock it into the hole on the frame. Please note the two ends of the spring are different and must be A
installed as shown in the diagram below. Then continue to attach springs in the sequence.
4th
2nd
62
IM_759013120202_Trampoline_Advanced_457x366cm_v3.indd 62
24
1st
3rd
