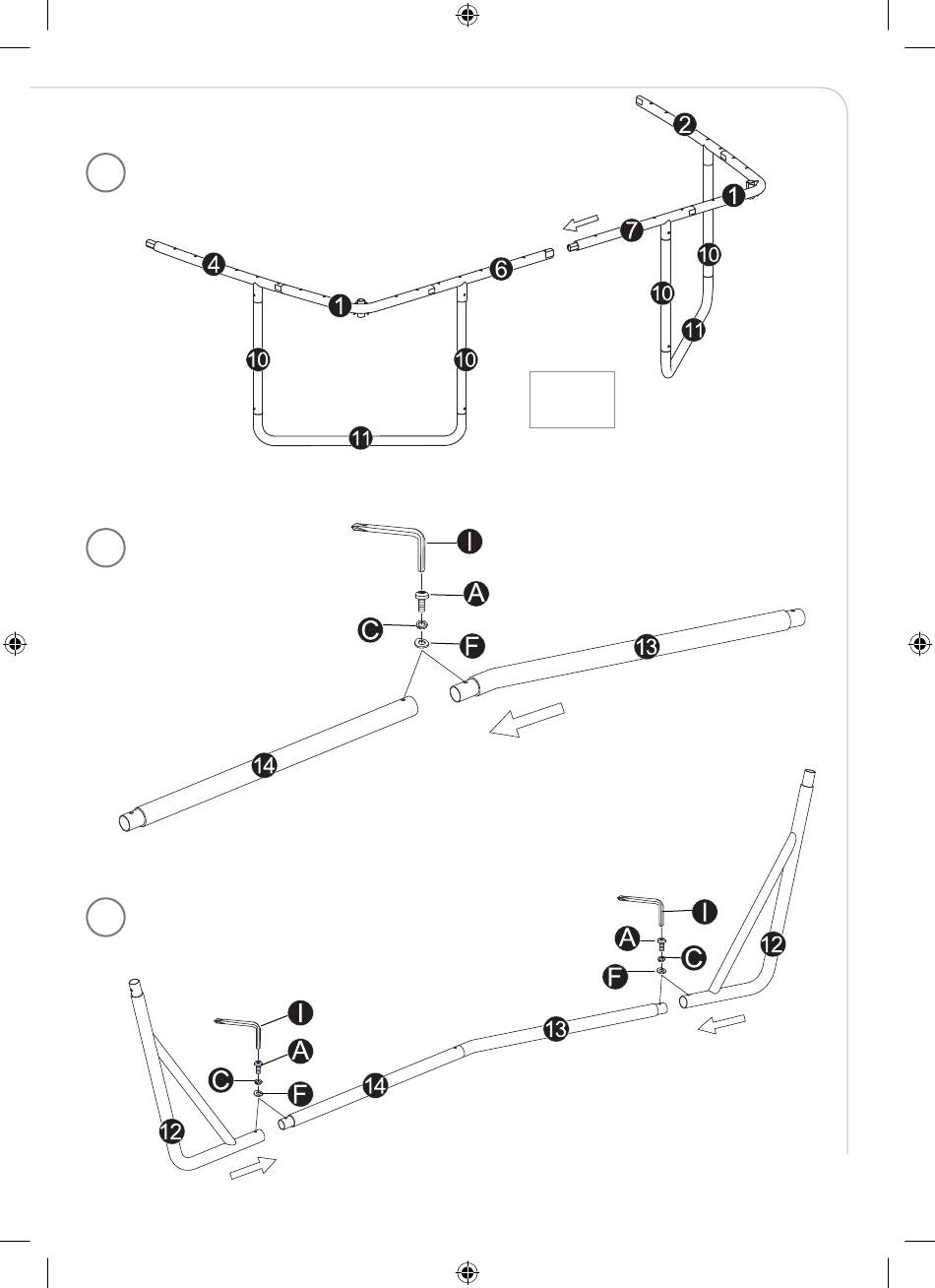

Step 7
Slide Right Straight Top Frame (# 7) into Left Straight Top Frame (# 6)
7
Step 8
Connect Ground Leg Tube (# 13 and #14) and secure with Short Bolt (# A), Large Spring Lock Washer (# C),
Arc Washer (# F) Tighten using Allen Wrench (# I)
Step 8
Connect Ground Leg Tube (# 13 and #14) and secure with Short Bolt (# A), Large Spring Lock Washer (# C),
Arc Washer (# F) Tighten using Allen Wrench (# I)
8
Step 9
Slide Support Tube (#12) into Ground Leg Tube (# 13 and #14) and secure with Short Bolt (# A), Large Spring
Lock Washer (# C), Arc Washer (# F) Tighten using Allen Wrench (# I)
Step 9
Slide Support Tube (#12) into Ground Leg Tube (# 13 and #14) and secure with Short Bolt (# A), Large Spring
9
Lock Washer (# C), Arc Washer (# F) Tighten using Allen Wrench (# I)
