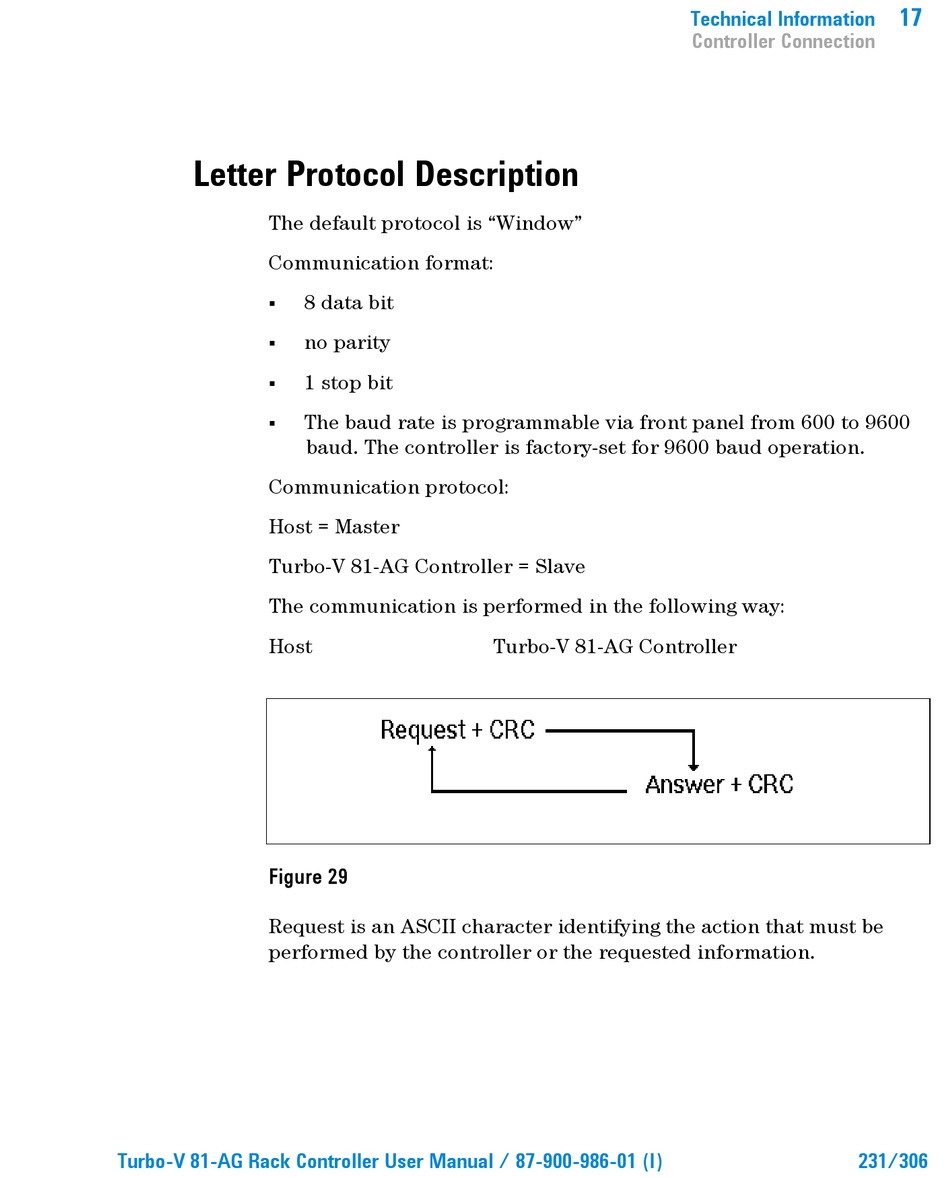

Letter Protocol Description

The default protocol is "Window"
Communication format:




Communication protocol:
Host = Master
Turbo-V 81-AG Controller = Slave
The communication is performed in the following way:
Host
Figure 29
Request is an ASCII character identifying the action that must be
performed by the controller or the requested information.
Turbo-V 81-AG Rack Controller User Manual / 87-900-986-01
8 data bit
no parity
1 stop bit
The baud rate is programmable via front panel from 600 to 9600
baud. The controller is factory-set for 9600 baud operation.
Turbo-V 81-AG Controller
(I)
Technical Information
Controller Connection
231/306
17
