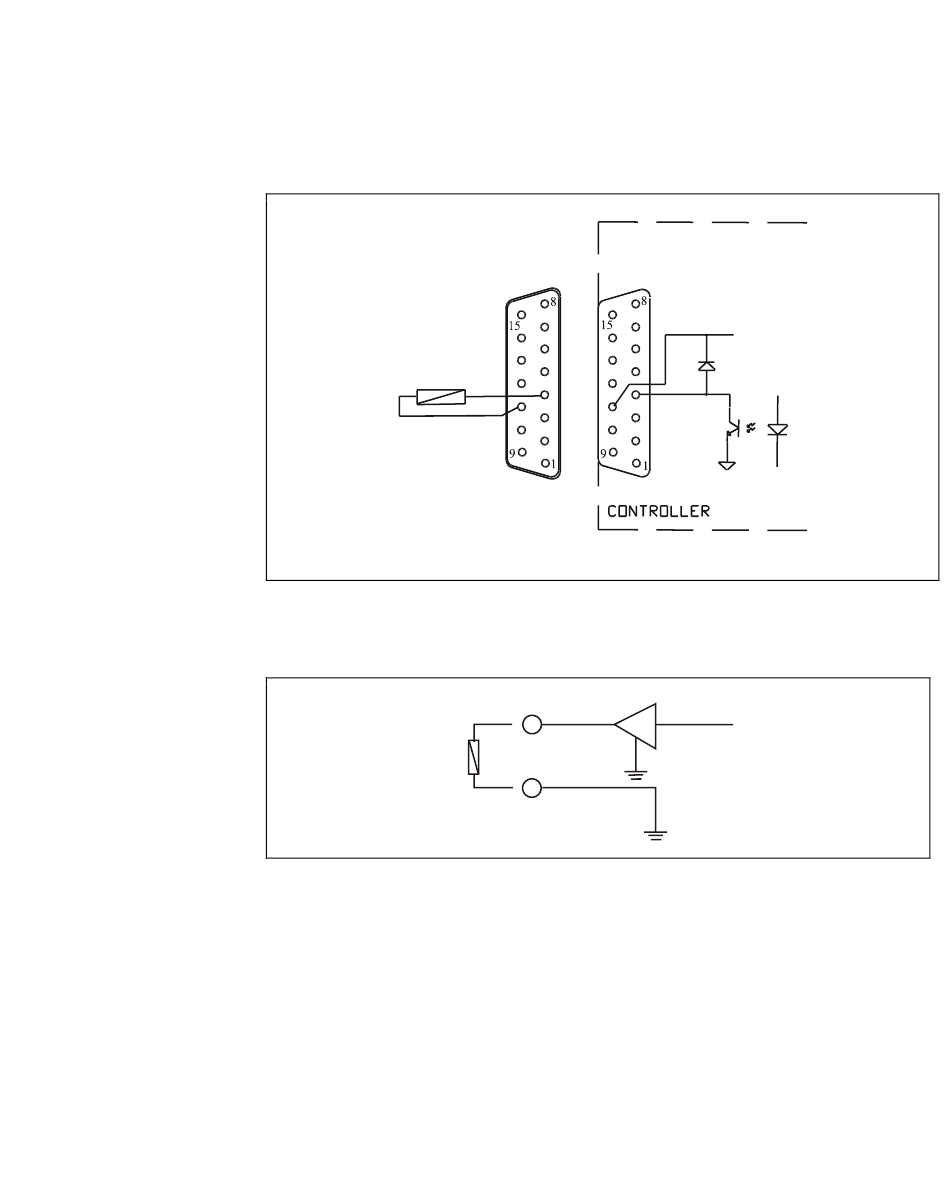

The following figure shows a typical logic output connection (relay
coil) but any other device may be connected e.g. a LED, a computer,
etc., and the related simplified circuit of the controller.
Figure 12
Figure 13
Turbo-V 81-AG Rack Controller User Manual / 87-900-986-01
Minimum 1 kΩ
Digital Output Connection Example
Minimum 100 kΩ
Analog Output Connector Example
Technical Information
Controller Connection
J 1
1
2
(I)
17
+24 V
221/306
