Controller Connection

Controller Connection
J6 - Fan
The 24 Vdc, 150 mA maximum output voltage is present after START
pushbutton is pressed and will remain present until a fault condition
is displayed on front panel display or the turbopump is stopped.
This is a dedicated output for the optional Turbo-V 81-AG pump
cooling fan (see orderable parts table).
If you already have fan installed, use the available adapter cable to
connect to the pump.

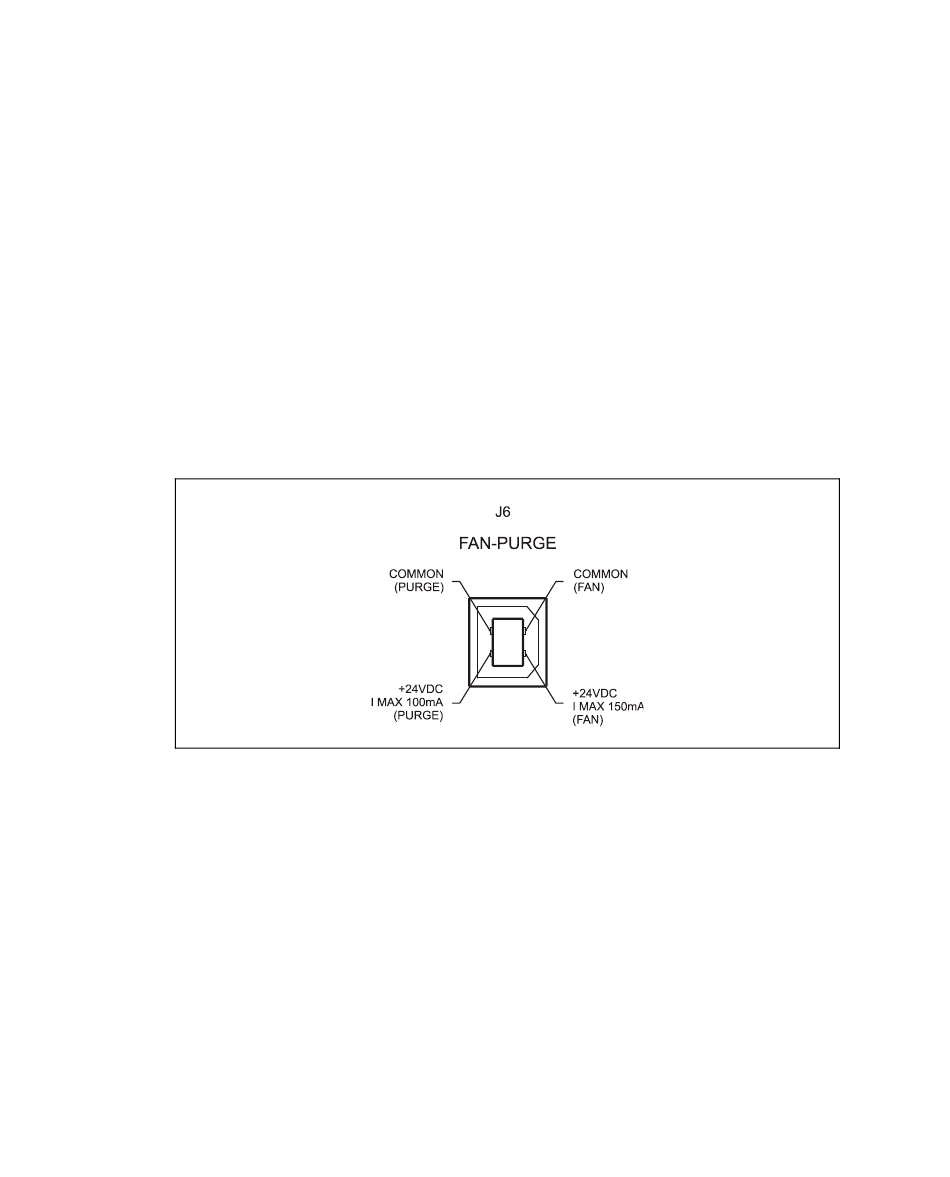

Figure 6
214/306
Fan Connector
