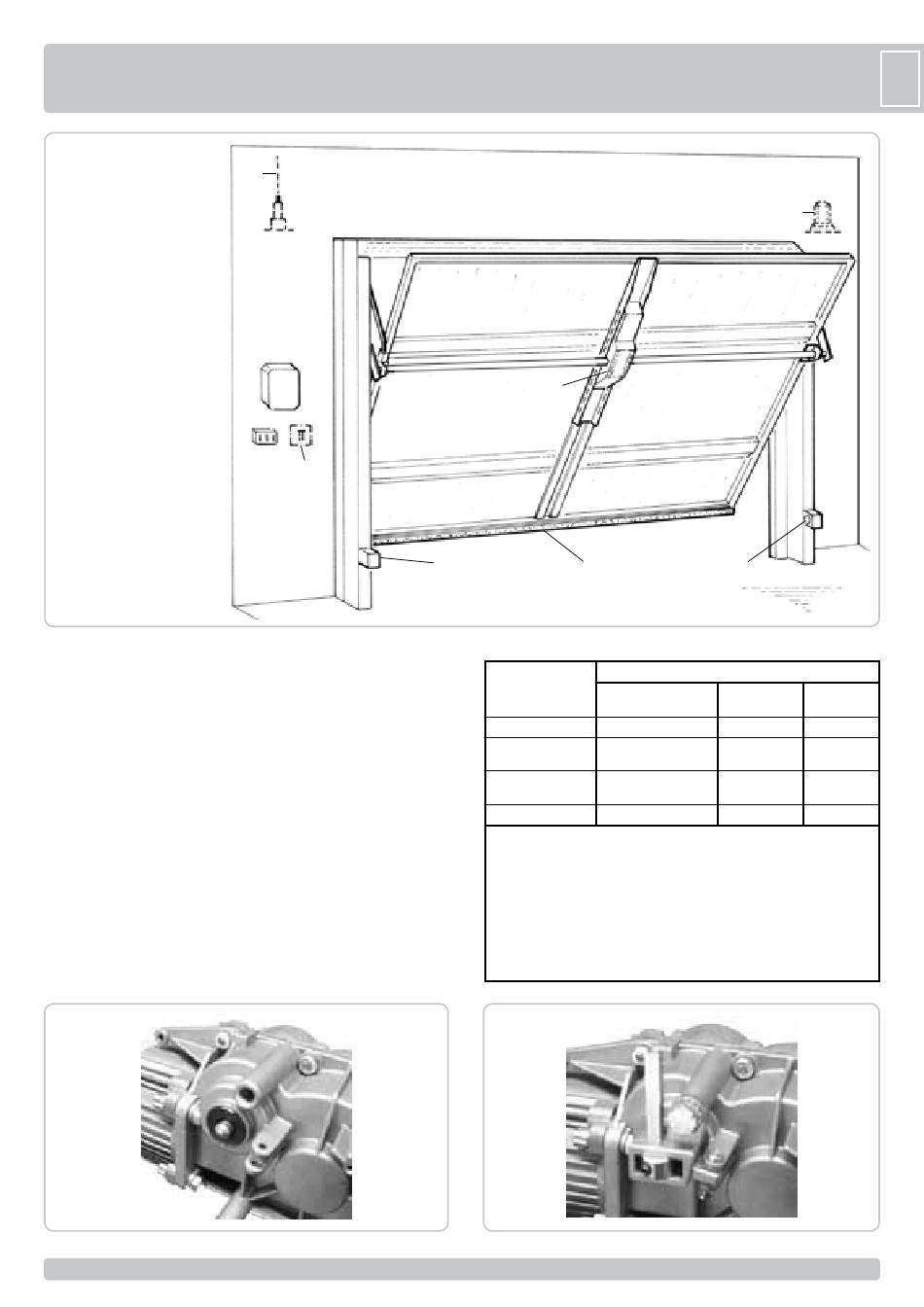

1 - ECOPESI S operator
2 - Tuned aerial
3 - Flashing lamp
4 - Key selector
5 - "Fotocosta"
Photoelectric strip
6 - Photoelectric cells
(internal)
P
RE-INSTALLATION CHECK
N.B. It is obligatory to uniform the characteristics of the door to the
standards and laws in force. The door can be automatized only if in
a good state and if in accordance with EN 12604 standard.
- The door must not have pedestrian doors. Contrariwise, it will be
necessary to take the appropriate precautions in accordance with the
point 5.4.1 of EN12453 (for example stop the motion of the motor when
the door is open, thanks to a micro switch conveniently connected in the
gearcase).
- No trapping points must be generated (for example between horizontally
pivoted open door and wall).
M
OUNTING THE RELEASE LEVER
In order to prevent the operating device from being damaged during the
transport, the release unit is supplied disassembled.
It is therefore necessary to assemble it, as the two pictures below
indicate.
2
4
1
6 5
PARTS TO INSTALL MEETING THE EN 12453 STANDARD
COMMAND TYPE
with manned operation
with visible impulses
(e.g. sensor)
with not visible impulses
(e.g. remote control device)
automatic
* a typical example are those shutters which do not have access to any public way
A: C ommand button with manned operation (that is, operating as long as activated),
like code ACG2013
B: Key selector with manned operation, like code ACG1010
C: Adjustable power of the motor
D: S afety edges, like code ACG3010 and/or other safety devices to keep thrust
force within the limits of EN12453 regulation - Appendix A.
E: P hotocells, like code ACG8026 (To apply every 60÷70 cm for all the height of
the column of the gate up to a maximum of 2,5 m - EN 12445 point 7.3.2.1)
3
19 19
19 19
6
USE OF THE SHUTTER
Skilled persons Skilled persons
(out of a public area*) (public area)
A B
C or E C or E
C or E C and D, or E
C and D, or E C and D, or E
G
B
3
2
Unrestricted use
-
C and D, or E
C and D, or E
C and D, or E
