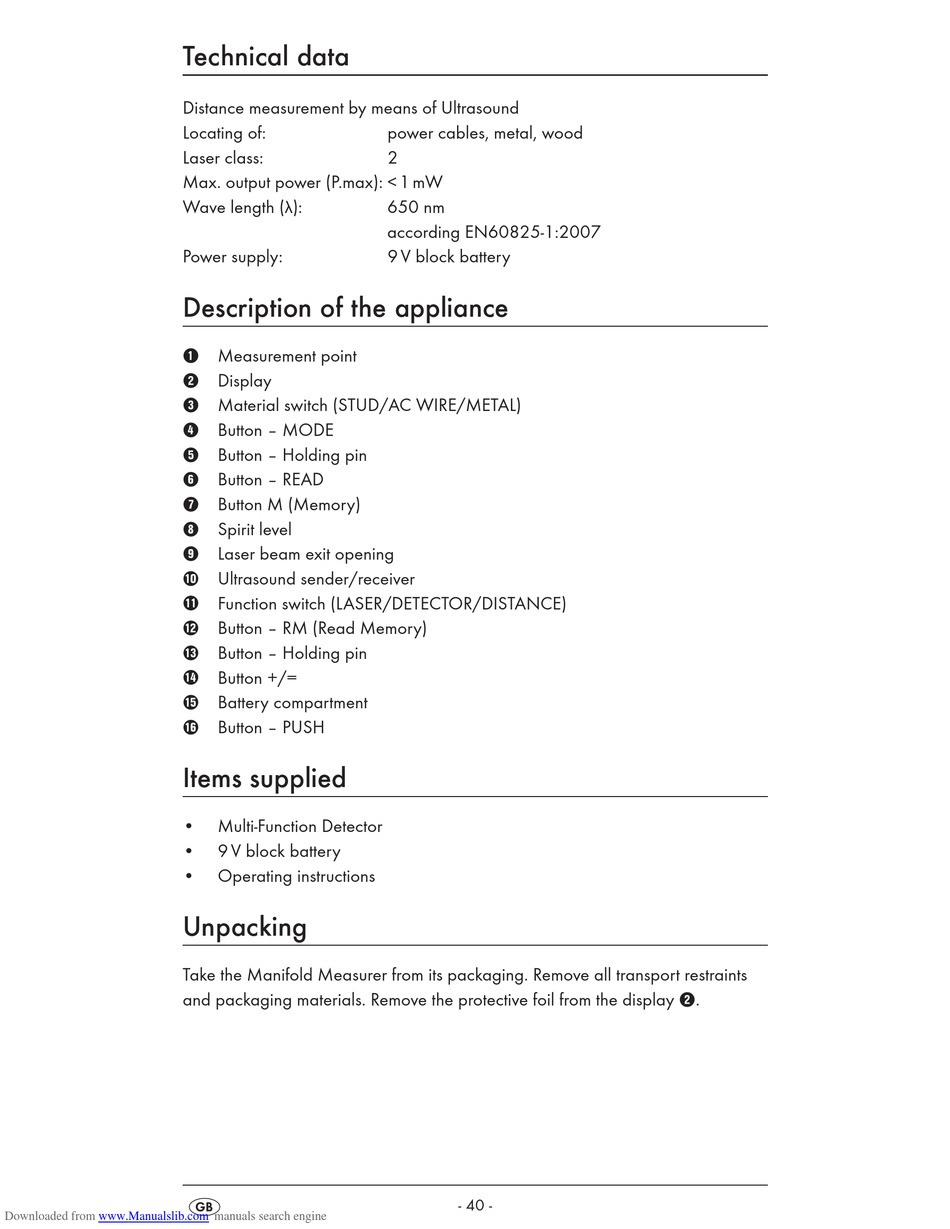

Technical data

Distance measurement by means of Ultrasound
Locating of:
Laser class:
Max. output power (P.max): < 1 mW
Wave length (λ):
Power supply:

Description of the appliance

1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
z

Items supplied

•
•
•

Unpacking

Take the Manifold Measurer from its packaging. Remove all transport restraints
and packaging materials. Remove the protective foil from the display
