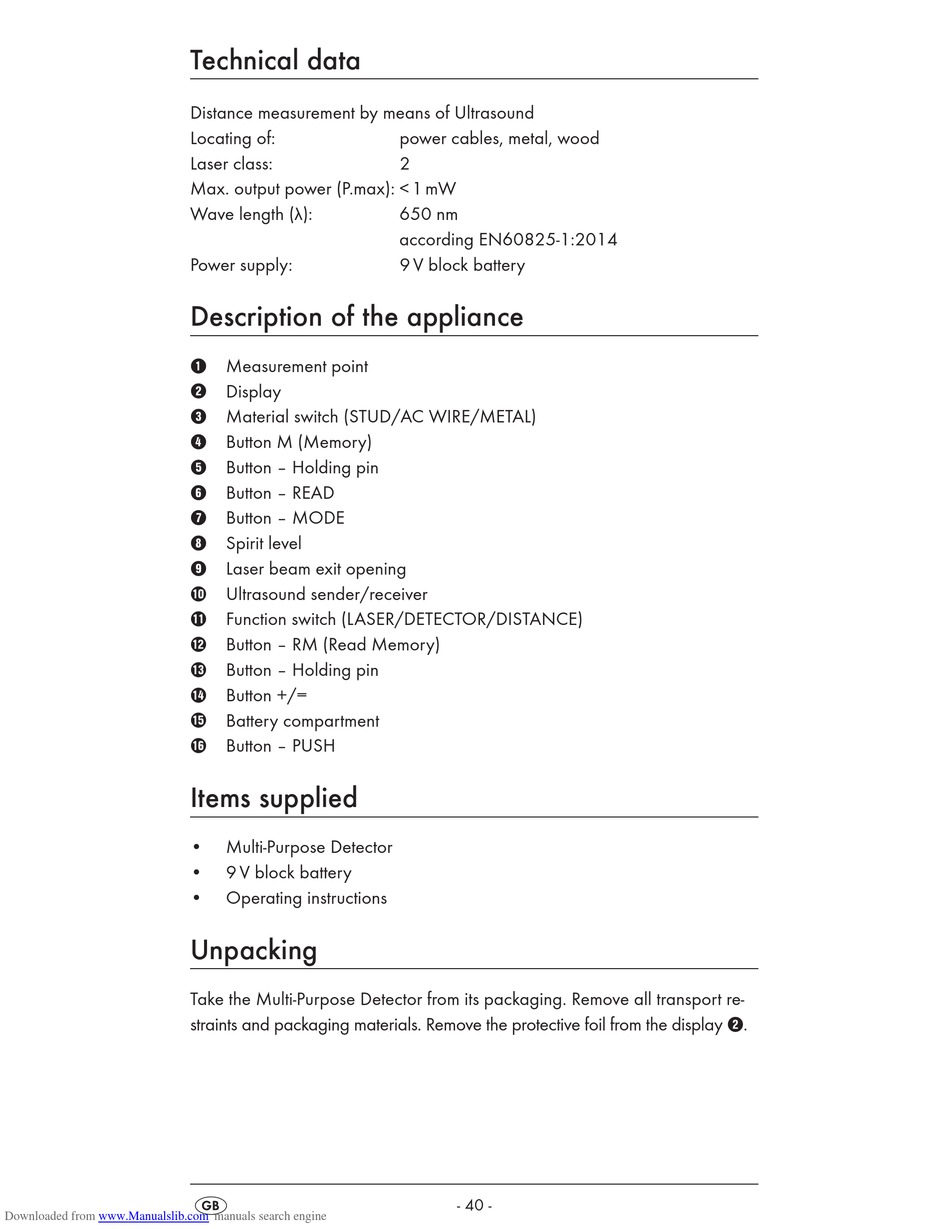

Technical data

Distance measurement by means of Ultrasound
Locating of:
Laser class:
Max. output power (P.max): < 1 mW
Wave length (λ):
Power supply:

Description of the appliance

1
Measurement point
2
Display
3
Material switch (STUD/AC WIRE/METAL)
4
Button M (Memory)
5
Button – Holding pin
6
Button – READ
7
Button – MODE
8
Spirit level
9
Laser beam exit opening
0
Ultrasound sender/receiver
q
Function switch (LASER/DETECTOR/DISTANCE)
w
Button – RM (Read Memory)
e
Button – Holding pin
r
Button +/=
t
Battery compartment
z
Button – PUSH

Items supplied

• Multi-Purpose Detector
• 9 V block battery
• Operating instructions

Unpacking

Take the Multi-Purpose Detector from its packaging. Remove all transport re-
straints and packaging materials. Remove the protective foil from the display
manuals search engine
power cables, metal, wood
2
650 nm
according EN60825-1:2014
9 V block battery
