Toshiba MML-AP0071BH Installations-Handbuch Seite 14

6

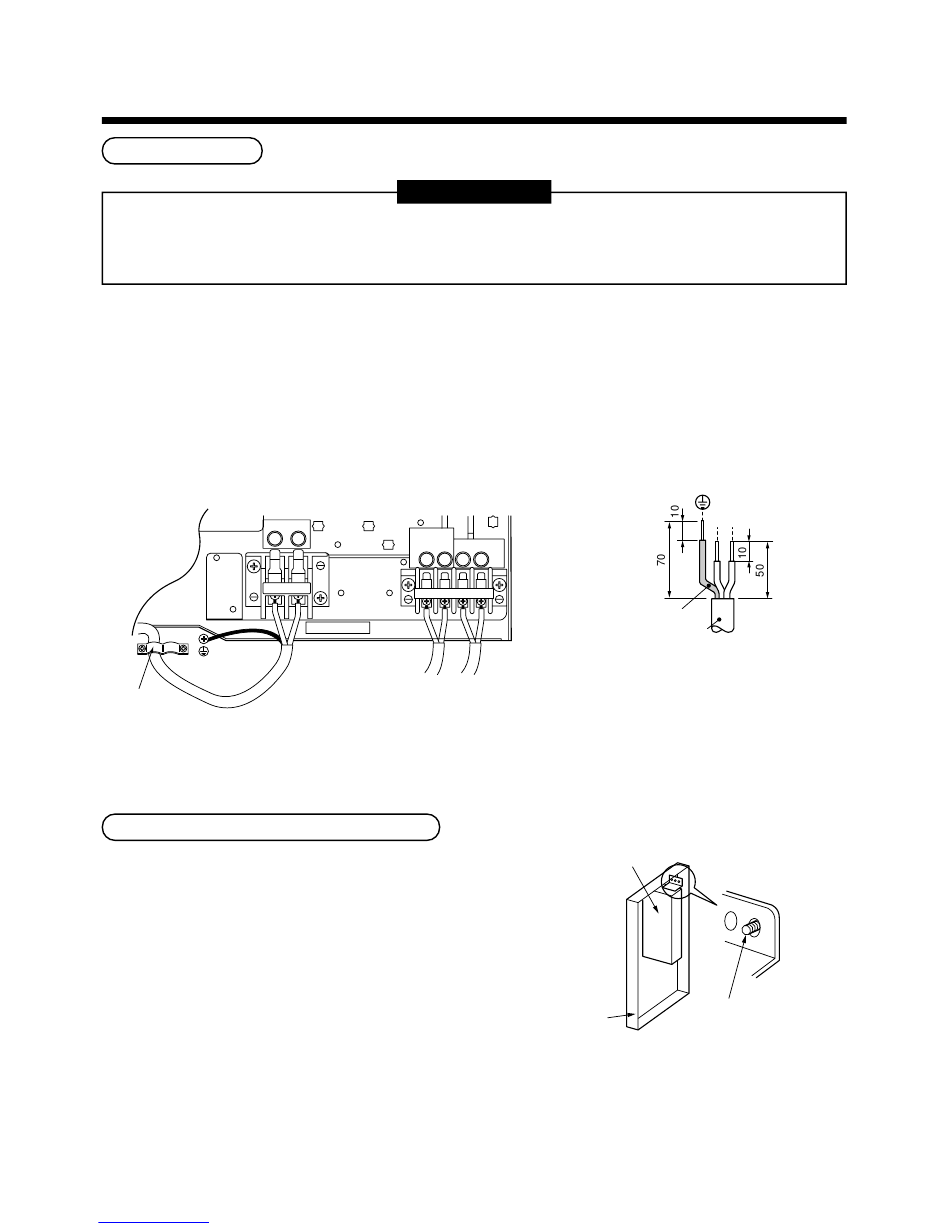

ELECTRIC WORK
Wire connection
• Be sure to pass the wire through the wire connection port of the indoor unit.
• Keep a margin (Approx. 100mm) on a wire to hang down the electric parts box at servicing, etc.
• The low-voltage circuit is provided for the remote controller.
• Remove the cover of the electric parts box by taking the mounting screws.
• Tighten the screws of the terminal block, and fix the wires with cord clamp attached to the electric parts box.
(Do not apply tension to the connecting section of the terminal block.)
• Mount the cover of the electric parts box without pinching wires.
Cord clamp
Temporary fixing of electric parts box
• When servicing for the electric parts box such as
check operation and others, pass two fixing screws
at the side plate through the holes and fix the electric
parts box temporarily so that you can work at the
front side.
(Refer to the Removal of the electric parts box.)
Downloaded from www.Manualslib.com
Power supply Indoor/Outdoor inter-unit cable/
terminal block Remote controller terminal block
R(L) S(N)
R(L) S(N)
manuals search engine
REQUIREMENT
U U A B
1 2
U U A B
1 2
Electric parts box
Side plate
11
S
R
(L) (N)
Earth line
Connecting
cord
Fixing screws on
the side plate
