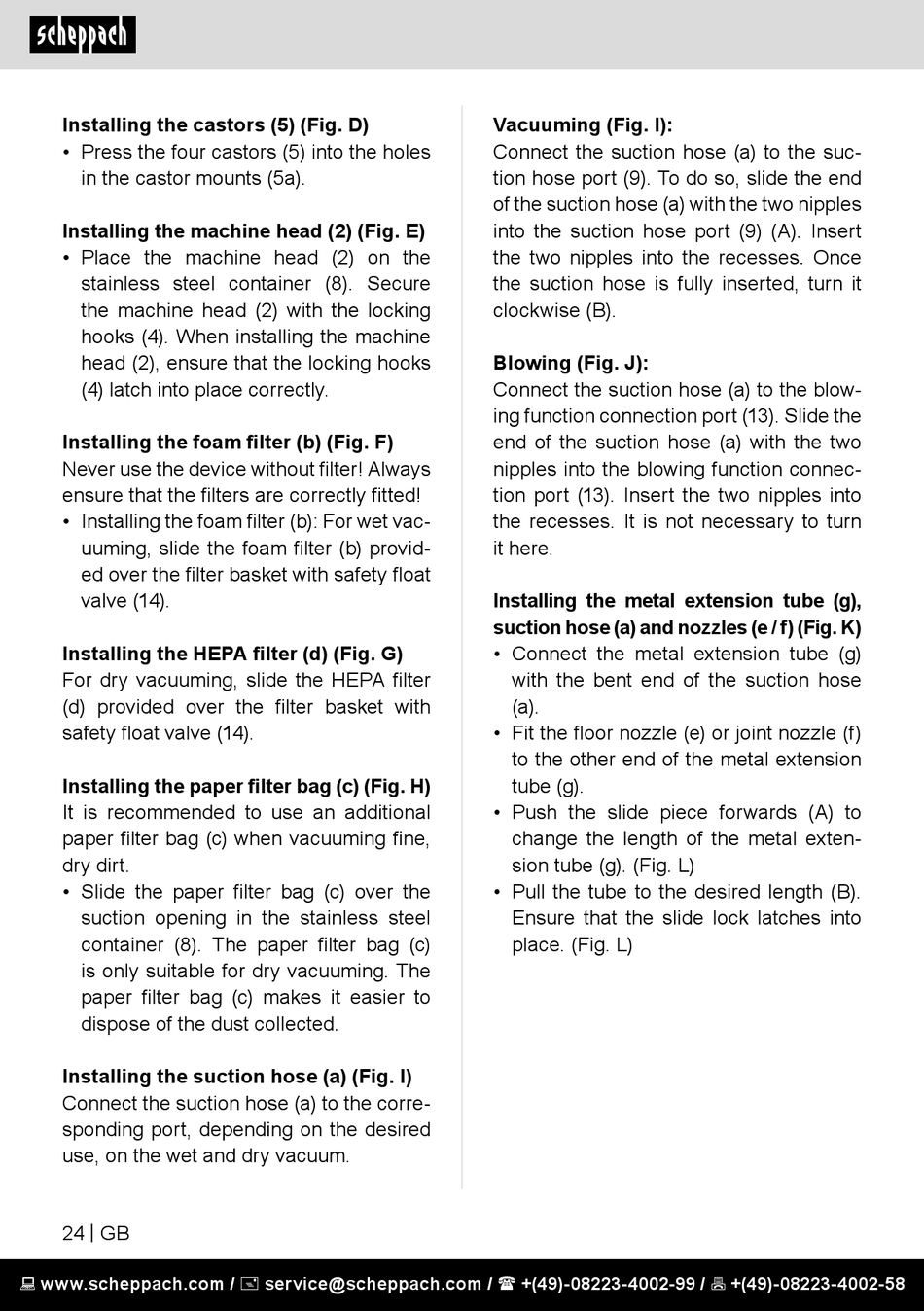

Scheppach NTS30 Premium Originalbetriebsanleitung Seite 24

Installing the castors (5) (Fig. D)
• Press the four castors (5) into the holes
in the castor mounts (5a).
Installing the machine head (2) (Fig. E)
• Place the machine head (2) on the
stainless steel container (8). Secure
the machine head (2) with the locking
hooks (4). When installing the machine
head (2), ensure that the locking hooks
(4) latch into place correctly.
Installing the foam filter (b) (Fig. F)
Never use the device without filter! Always
ensure that the filters are correctly fitted!
• Installing the foam filter (b): For wet vac-
uuming, slide the foam filter (b) provid-
ed over the filter basket with safety float
valve (14).
Installing the HEPA filter (d) (Fig. G)
For dry vacuuming, slide the HEPA filter
(d) provided over the filter basket with
safety float valve (14).
Installing the paper filter bag (c) (Fig. H)
It is recommended to use an additional
paper filter bag (c) when vacuuming fine,
dry dirt.
• Slide the paper filter bag (c) over the
suction opening in the stainless steel
container (8). The paper filter bag (c)
is only suitable for dry vacuuming. The
paper filter bag (c) makes it easier to
dispose of the dust collected.
Installing the suction hose (a) (Fig. I)
Connect the suction hose (a) to the corre-
sponding port, depending on the desired
use, on the wet and dry vacuum.
24 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Vacuuming (Fig. I):
Connect the suction hose (a) to the suc-
tion hose port (9). To do so, slide the end
of the suction hose (a) with the two nipples
into the suction hose port (9) (A). Insert
the two nipples into the recesses. Once
the suction hose is fully inserted, turn it
clockwise (B).
Blowing (Fig. J):
Connect the suction hose (a) to the blow-
ing function connection port (13). Slide the
end of the suction hose (a) with the two
nipples into the blowing function connec-
tion port (13). Insert the two nipples into
the recesses. It is not necessary to turn
it here.
Installing the metal extension tube (g),
suction hose (a) and nozzles (e / f) (Fig. K)
• Connect the metal extension tube (g)
with the bent end of the suction hose
(a).
• Fit the floor nozzle (e) or joint nozzle (f)
to the other end of the metal extension
tube (g).
• Push the slide piece forwards (A) to
change the length of the metal exten-
sion tube (g). (Fig. L)
• Pull the tube to the desired length (B).
Ensure that the slide lock latches into
place. (Fig. L)
