1.2. Technical data
Supply voltage
Input current in standby
Video module
Screen size (diagonal)
Display resolution
Protection degree
Video signal input
Ambient temperature
Housing
Dimensions (mm)
Weight
6-wiring technique
1.3. Max. number 10-577
With the use of a power supply and control unit
10-801 and 10-801-05
10-806-01

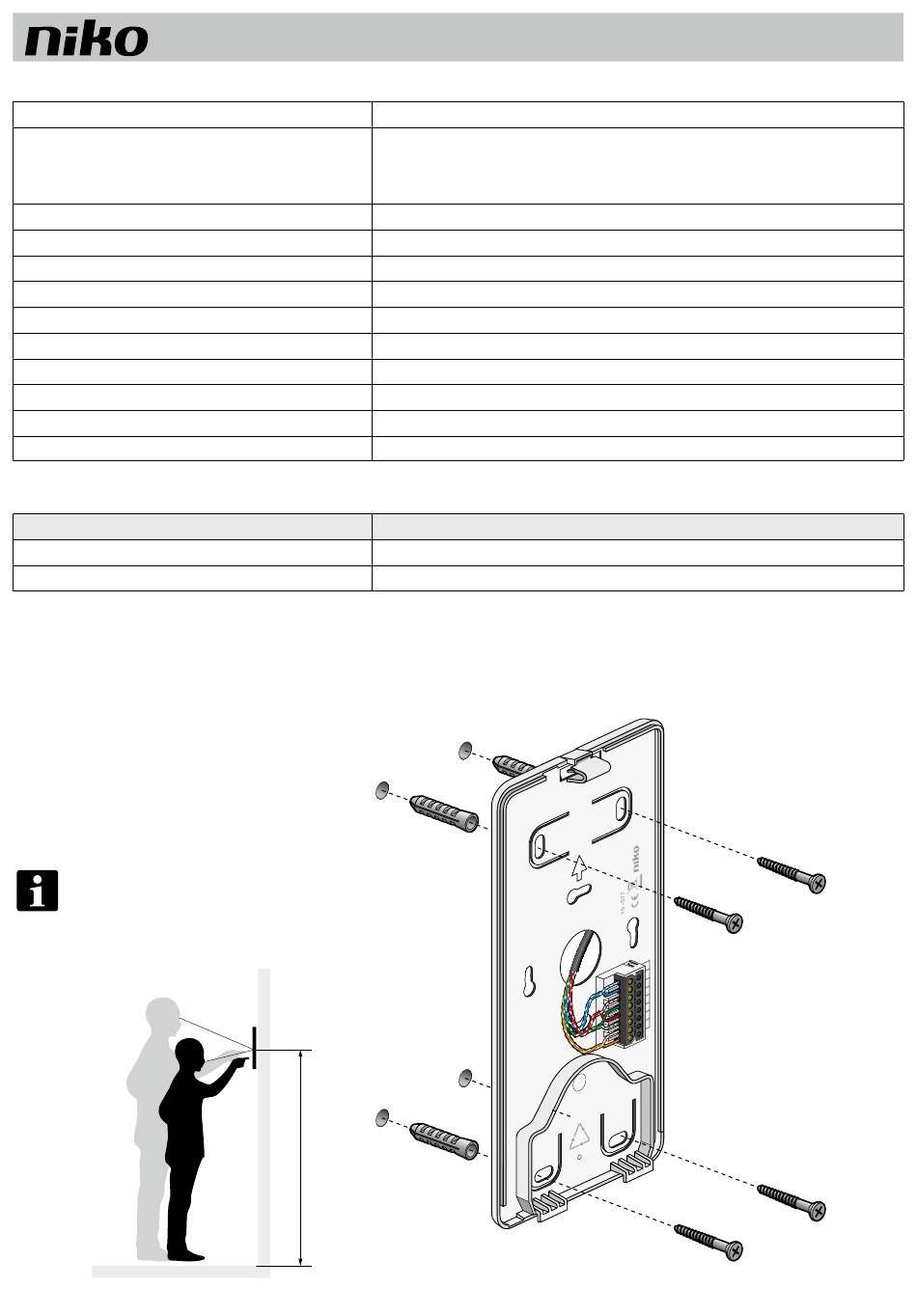

2. MOUNTING AND INSTALLATION

2.1. Mounting box installation
• Place the mounting box against the wall.
• Mark the screw holes using the mounting box.
• Drill the holes.
• Insert fitting wall plugs into the holes.
• Pull the connection cable through the cable hole.
• Fix the mounting box to the wall with 4 fitting
screws .
Make sure the mounting box is
positioned correctly. The correct
position is marked on the outside of
the mounting box by an arrow and the
word TOP).
EN
+24 V ± 8 %
6-wire operation:
I(a) = 0.13 mA
I(P) = 3.18 mA
I(Pmax) = 147.0 mA
TFT colour display
3.5''
320 x 240 pixels, RGB
IP30
symmetrical 1 Vss FBAS
- 5 – + 40 °C
ASA plastic
H 194 x W 94 x D 21 mm
227 g (mounting box included)
yes
1,60 m
6-wire operation
80
12
a
b
E
P
P
M
V 1
V 2
10-577
