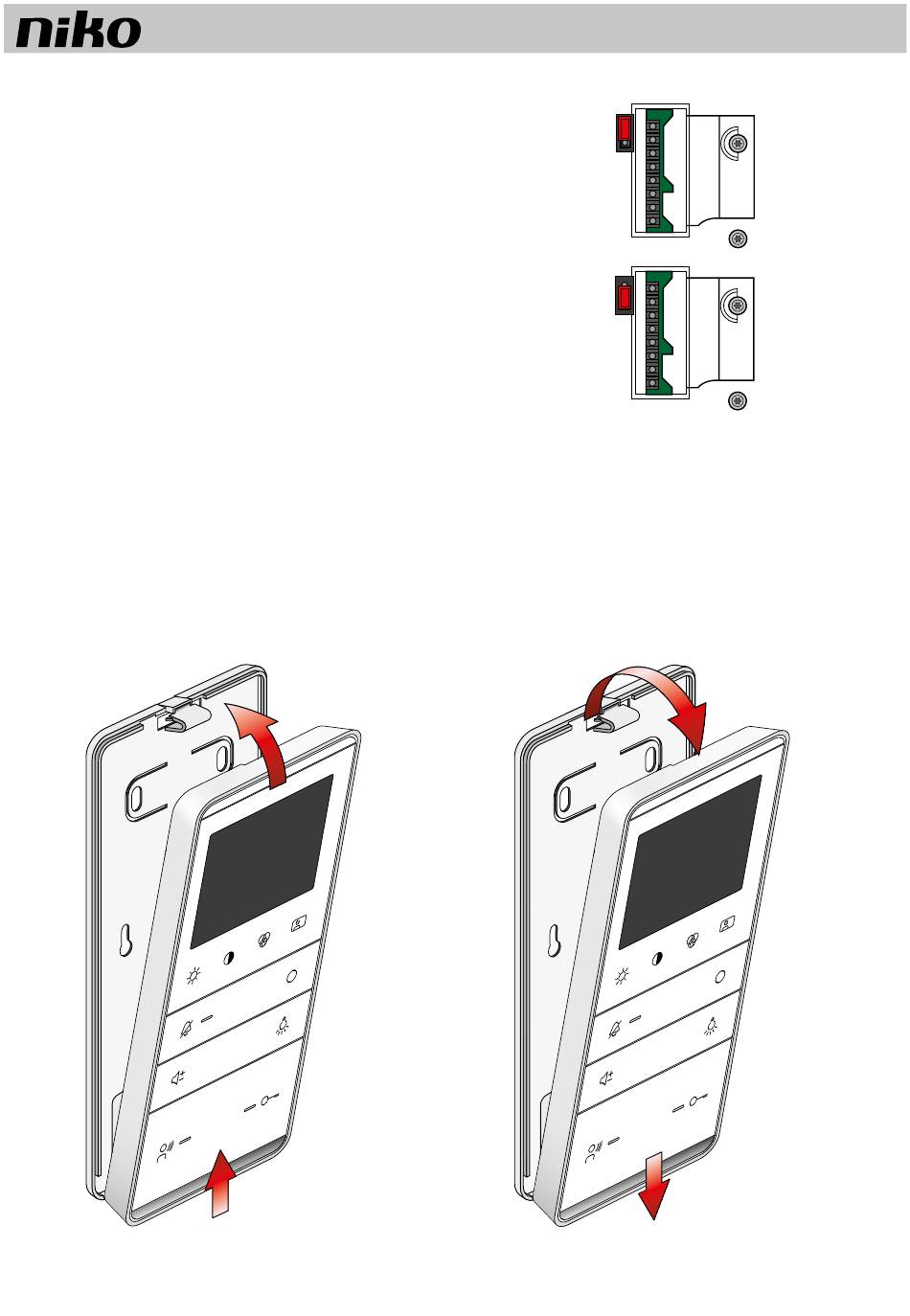

2.3. Position of the terminal resistor
If the internal video unit 10-577 is not at the end of the line and is not the only
device on the line: place jumper J1 on the two upper contacts (factory setting)
If the internal video unit 10-577 is at the end of the line or is the only device on
the line: place jumper J1 on the two lowest contacts
2.4. Clicking the device on the mounting box
• Place the mounting brackets located at the bottom of the internal video unit
onto the mounting box.
• Gently click the device on the mounting box.
Removing the device from the mounting box
• The top of the device contains a rectangular unlock opening. Insert a small
screwdriver into this opening, hold it straight and press gently.
• Unlock the top side of the device and tilt it to the front. Lift the device from the
mounting brackets at the bottom of the mounting box.
T O P
0 2
> A S
0 7
EN
a
b
E
P
P
M
V 1
V 2
A <
Mounting
T O P
a
b
E
P
P
M
V 1
0 2 V 2
A <
> A S
0 7
Dismantling
