Mounting and installation instructions

The charging station must be installed vertically against a wall or floor-

mounted column.

Depending on the scope of delivery, a mounting set for wall mounting is

available. The mounting set is suitable for cement, brick and wood (without

anchors). For other surfaces, a suitable method of installation must be se-

Depending on the device model or for special materials, the installation ma-

terials must be provided by the customer. Proper installation is absolutely

necessary and lies outside of the scope of responsibility of the manufacturer.

Risk of electric shock and fire hazard!

For installation on hollow walls, at least two mounting screws must be se-

cured to a support element of the wall. Special hollow-wall anchors must be

used for the other mounting screws. It is particularly important to ensure suf-

ficient load-bearing capacity of the sub-construction.

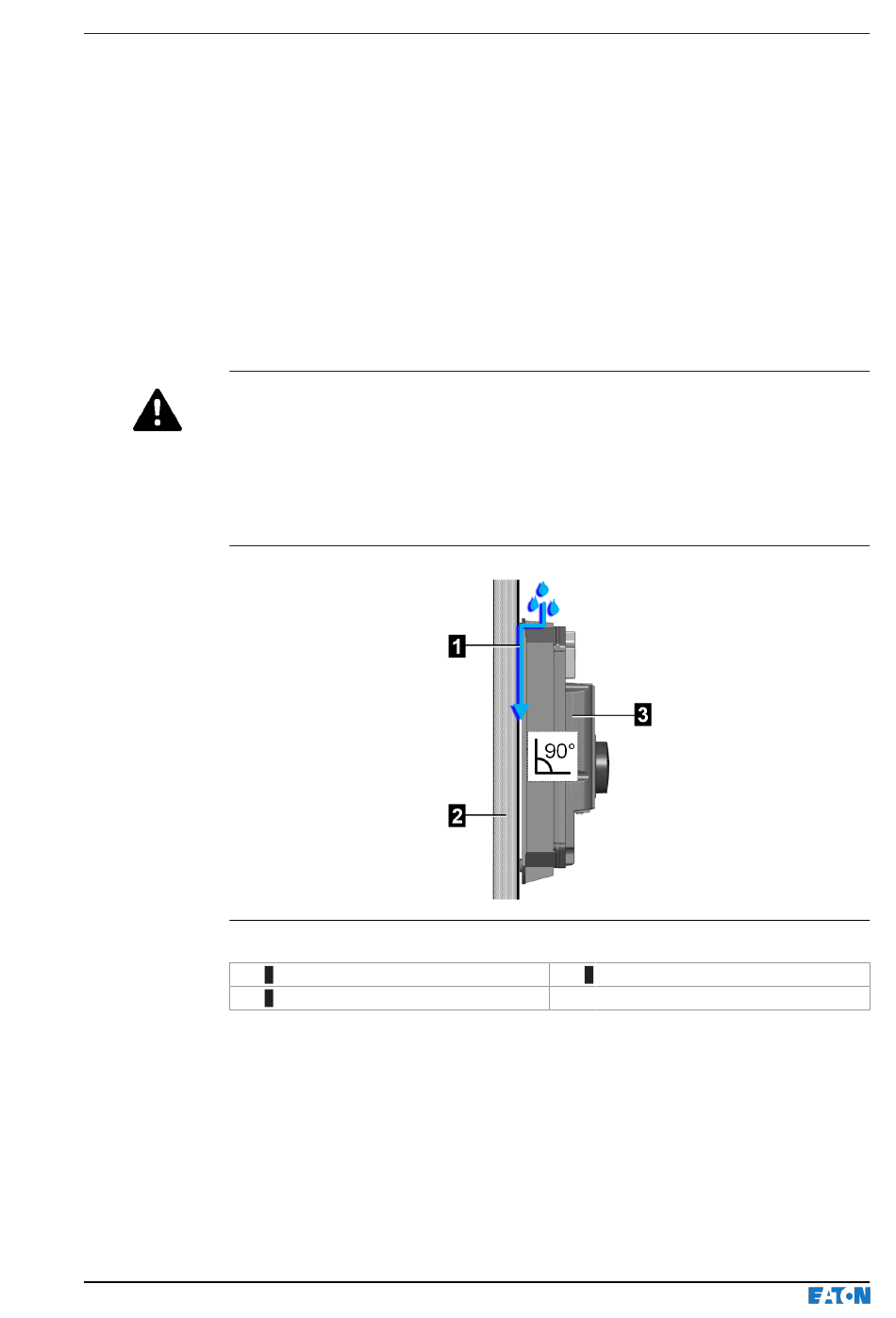

Fig. 6-12: Water drainage

Installation manual V1.05

... Water drainage

... Charging station

Mounting and installation instructions

... Wall or floor-mounted column
