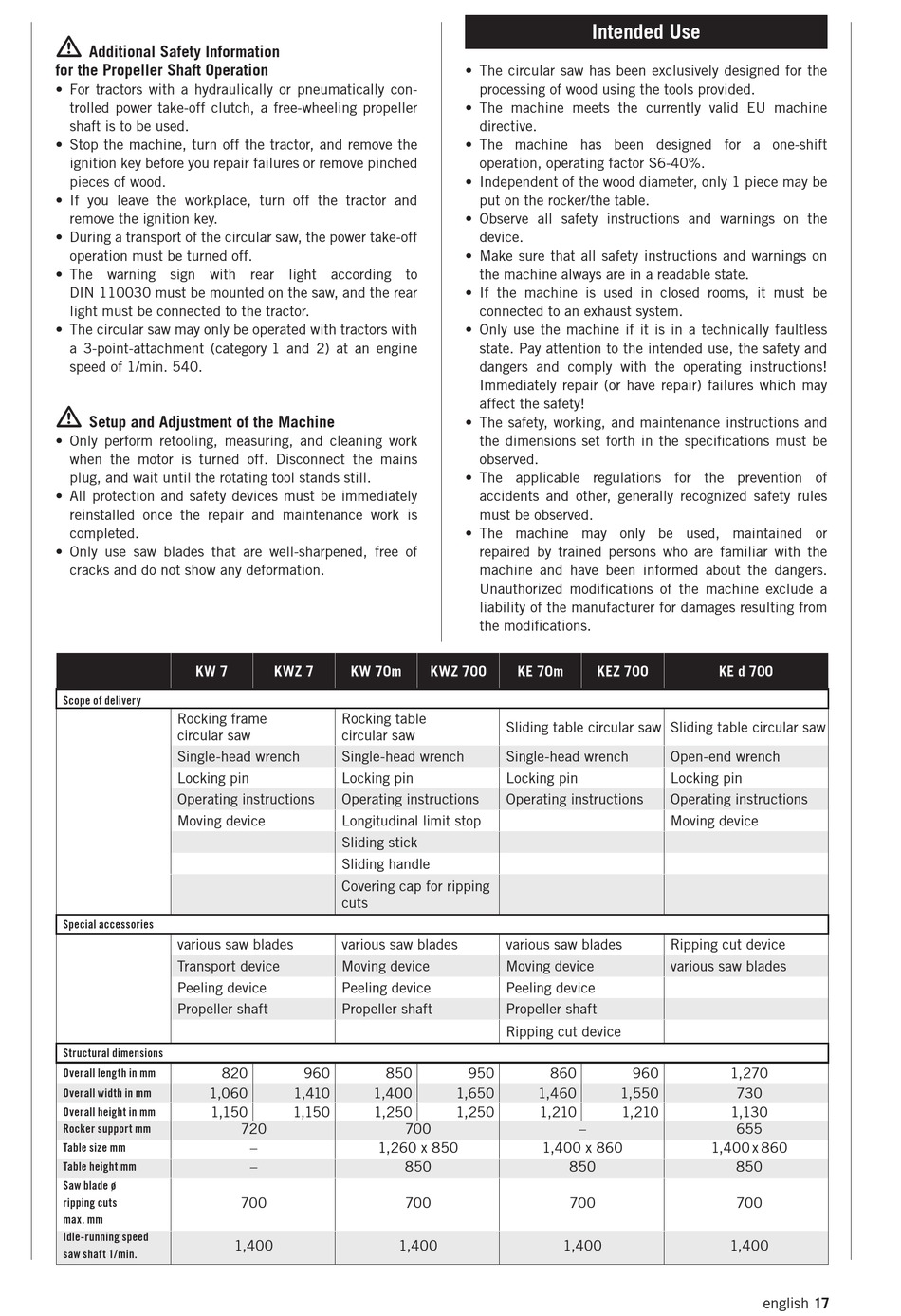

Additional Safety Information
for the Propeller Shaft Operation
• For tractors with a hydraulically or pneumatically con-
trolled power take-off clutch, a free-wheeling propeller
shaft is to be used.
• Stop the machine, turn off the tractor, and remove the
ignition key before you repair failures or remove pinched
pieces of wood.
• If you leave the workplace, turn off the tractor and
remove the ignition key.
• During a transport of the circular saw, the power take-off
operation must be turned off.
• The warning sign with rear light according to
DIN 110030 must be mounted on the saw, and the rear
light must be connected to the tractor.
• The circular saw may only be operated with tractors with
a 3-point-attachment (category 1 and 2) at an engine
speed of 1/min. 540.

Setup and Adjustment of the Machine
• Only perform retooling, measuring, and cleaning work
when the motor is turned off. Disconnect the mains
plug, and wait until the rotating tool stands still.
• All protection and safety devices must be immediately
reinstalled once the repair and maintenance work is
completed.
• Only use saw blades that are well-sharpened, free of
cracks and do not show any deformation.
KW 7

Scope of delivery

Rocking frame
circular saw
Single-head wrench
Locking pin
Operating instructions
Moving device

Special accessories

various saw blades
Transport device
Peeling device
Propeller shaft
Structural dimensions
820
Overall length in mm
1,060
Overall width in mm
1,150
Overall height in mm
Rocker support mm
Table size mm
Table height mm
Saw blade ø
ripping cuts
max. mm
Idle-running speed
saw shaft 1/min.
KWZ 7 KW 70m
Rocking table
circular saw
Single-head wrench
Locking pin
Operating instructions
Longitudinal limit stop
Sliding stick
Sliding handle
Covering cap for ripping
cuts
various saw blades
Moving device
Peeling device
Propeller shaft
960 850
1,410 1,400
1,150 1,250
720
– 1,260 x 850
–
700
1,400 1,400
• The circular saw has been exclusively designed for the
processing of wood using the tools provided.
• The machine meets the currently valid EU machine
directive.
• The machine has been designed for a one-shift
operation, operating factor S6-40%.
• Independent of the wood diameter, only 1 piece may be
put on the rocker/the table.
• Observe all safety instructions and warnings on the
device.
• Make sure that all safety instructions and warnings on
the machine always are in a readable state.
• If the machine is used in closed rooms, it must be
connected to an exhaust system.
• Only use the machine if it is in a technically faultless
state. Pay attention to the intended use, the safety and
dangers and comply with the operating instructions!
Immediately repair (or have repair) failures which may
affect the safety!
• The safety, working, and maintenance instructions and
the dimensions set forth in the specifications must be
observed.
• The applicable regulations for the prevention of
accidents and other, generally recognized safety rules
must be observed.
• The machine may only be used, maintained or
repaired by trained persons who are familiar with the
machine and have been informed about the dangers.
Unauthorized modifications of the machine exclude a
liability of the manufacturer for damages resulting from
the modifications.
KWZ 700 KE 70m
Sliding table circular saw Sliding table circular saw
Single-head wrench
Locking pin
Operating instructions
various saw blades
Moving device
Peeling device
Propeller shaft
Ripping cut device
950 860
1,650 1,460
1,250 1,210
700
1,400 x 860
850 850
700 700
1,400

Intended Use

KEZ 700 KE d 700
Open-end wrench
Locking pin
Operating instructions
Moving device
Ripping cut device
various saw blades
960 1,270
1,550 730
1,210 1,130
– 655
1,400 x 860
850
700
1,400
english 17
