3. INSTALLATION METHOD

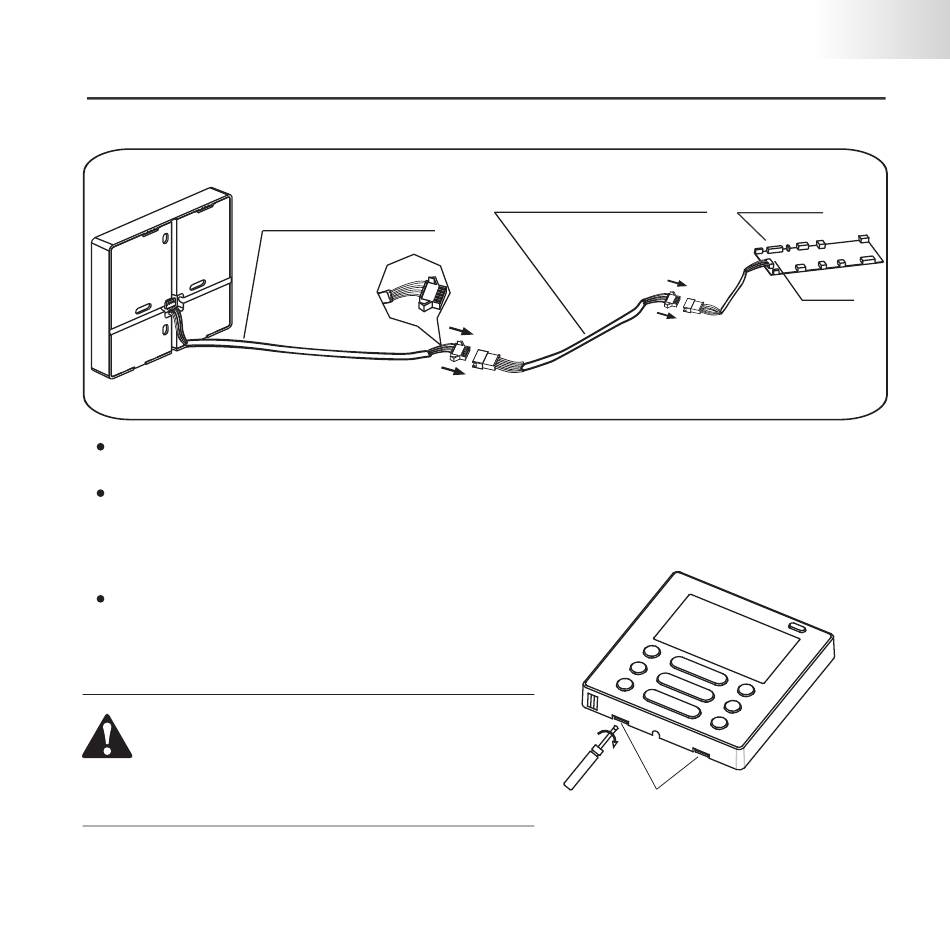

3.Wiring figure
Connect the female joint of wires group from the mainboard with the male joint of
connective wires group. (See Fig.3-3)
Please connect the other side of connective wires group with the male joint of
wires group leads from wire controller. (See Fig.3-3)
4.Remove the upper part of wire controller
Insert a slot screwdriver into the slots in the lower
part of the wire controller (2 places), and remove
the upper part of the wire controller. (Fig.3-4)
NOTICE
The PCB is mounted in the upper part of the wire
controller. Be careful not to damage the board
with the slot screwdriver.
4-core shielding wire
The connective wires group
5
Mainboard
CN40
Fig 3-3
Slots
Fig 3-4
